Installing 40W and 50W ERT Modules PUB-0126-001 4/04
6-2
01090

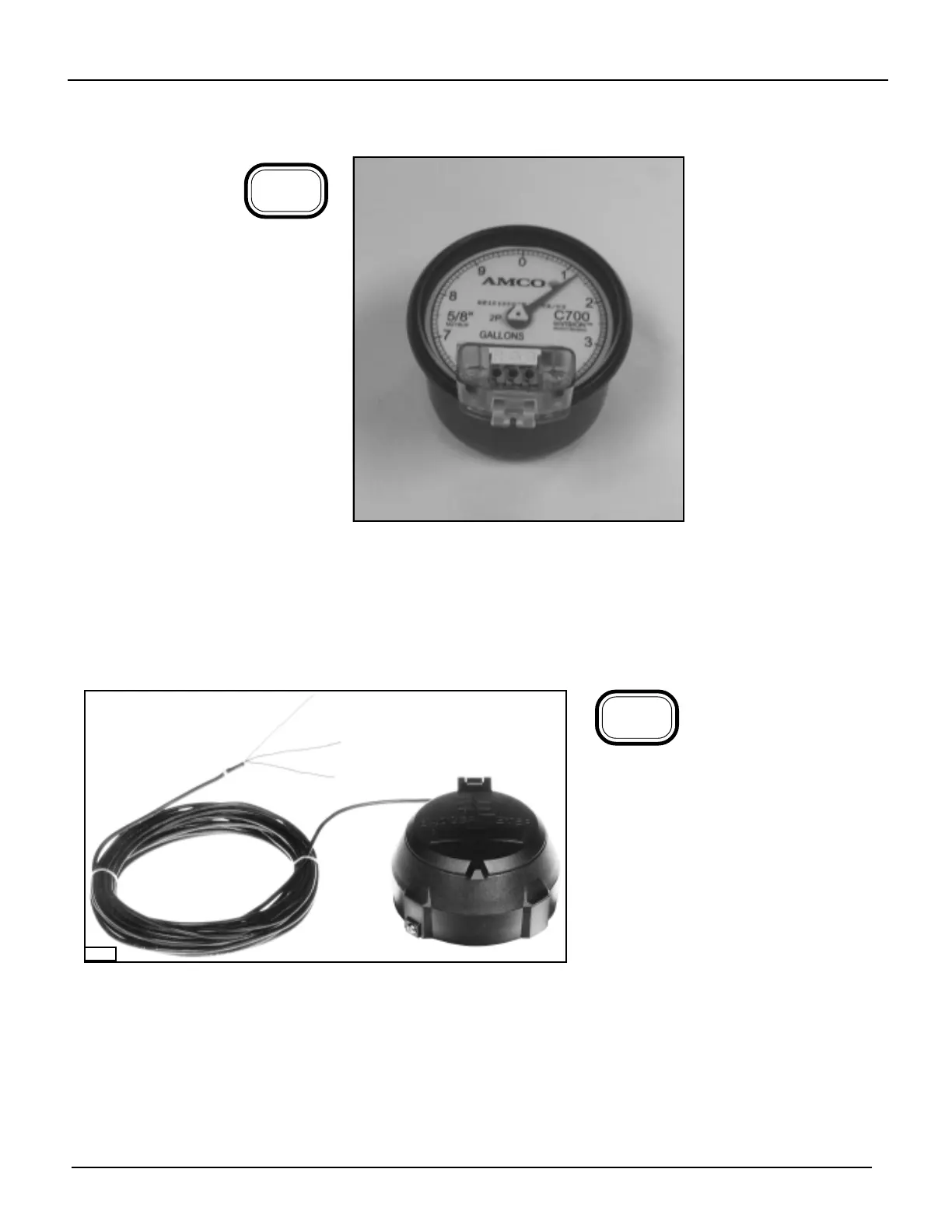

TO CONNECT TO AMCO (ABB) DIGITAL, InVISION, OR SCANCODER
REGISTER
There is no need to attach wire,
since it is already factory
installed and supplied with the
Badger RTR and ADE registers.
If more cable is needed, use gel
connectors, as described in
Appendix A. Do not exceed 500
feet in total length.
TO CONNECT TO BADGER RTR AND ADE REGISTERS:
6-2
6-3
See programming CAUTION on page 1-2
Remove the terminal cover from the
register.
Connect the red wire to the terminal
labeled “R”.
Connect the green wire to the
terminal labeled “G”.
Connect the black wire to the
terminal labeled “B”.
To Next Page
