Installing 40W and 50W ERT Modules PUB-0126-001 4/04
00789
7-5
00460
Push the
end of the band
clamp into the
entrance to
the screw
assembly.
00790
7-6
Start tightening the
band clamp screw.
7-4

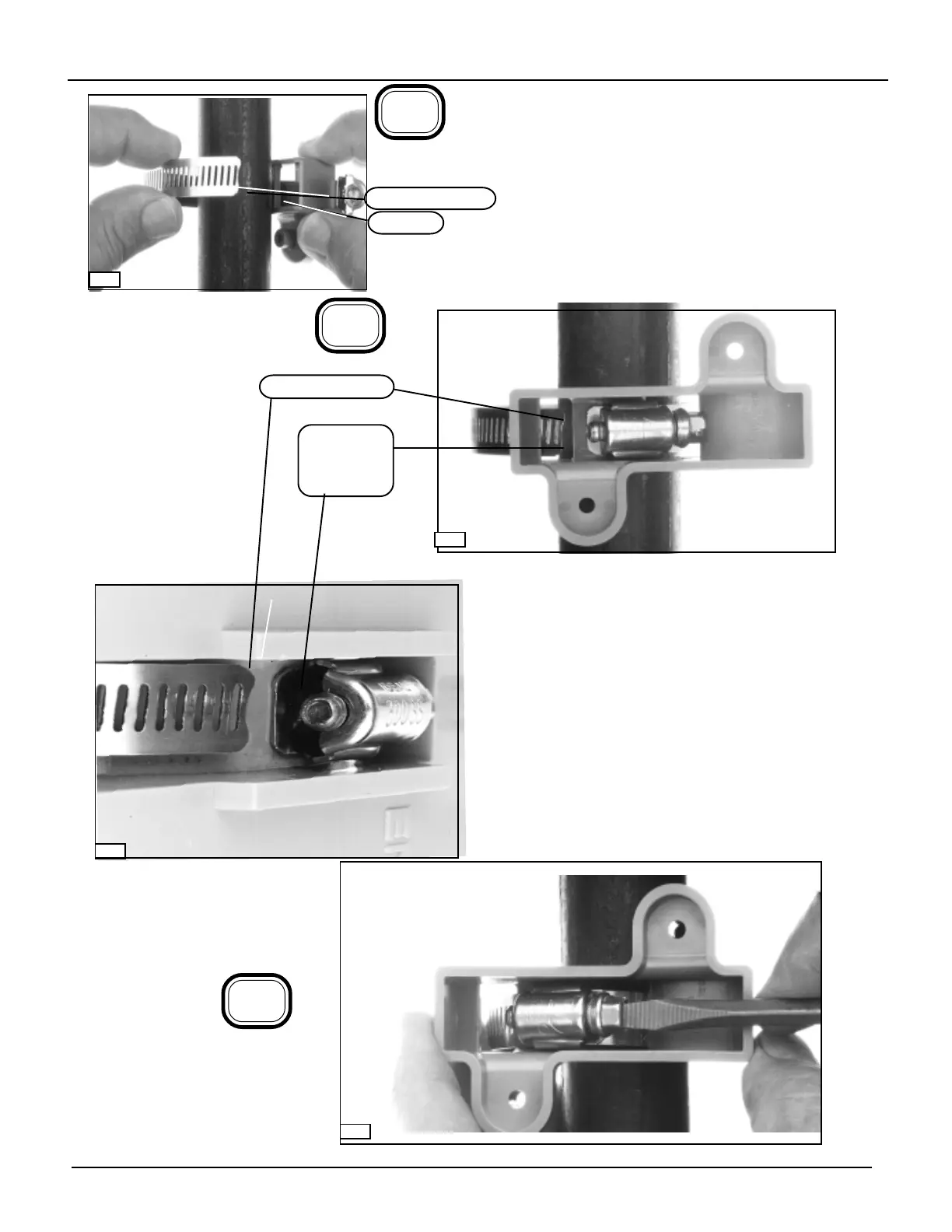

Place the band clamp around the pipe on which you want
to mount the bracket. Push the
end of the band through
this hole in the band clamp.
If mounting to a register, install a 4-1/2-inch band clamp
around the Schlumberger or Sensus register.
7-2
