Installing 40W and 50W ERT Modules
00865
00792
00791
7-7

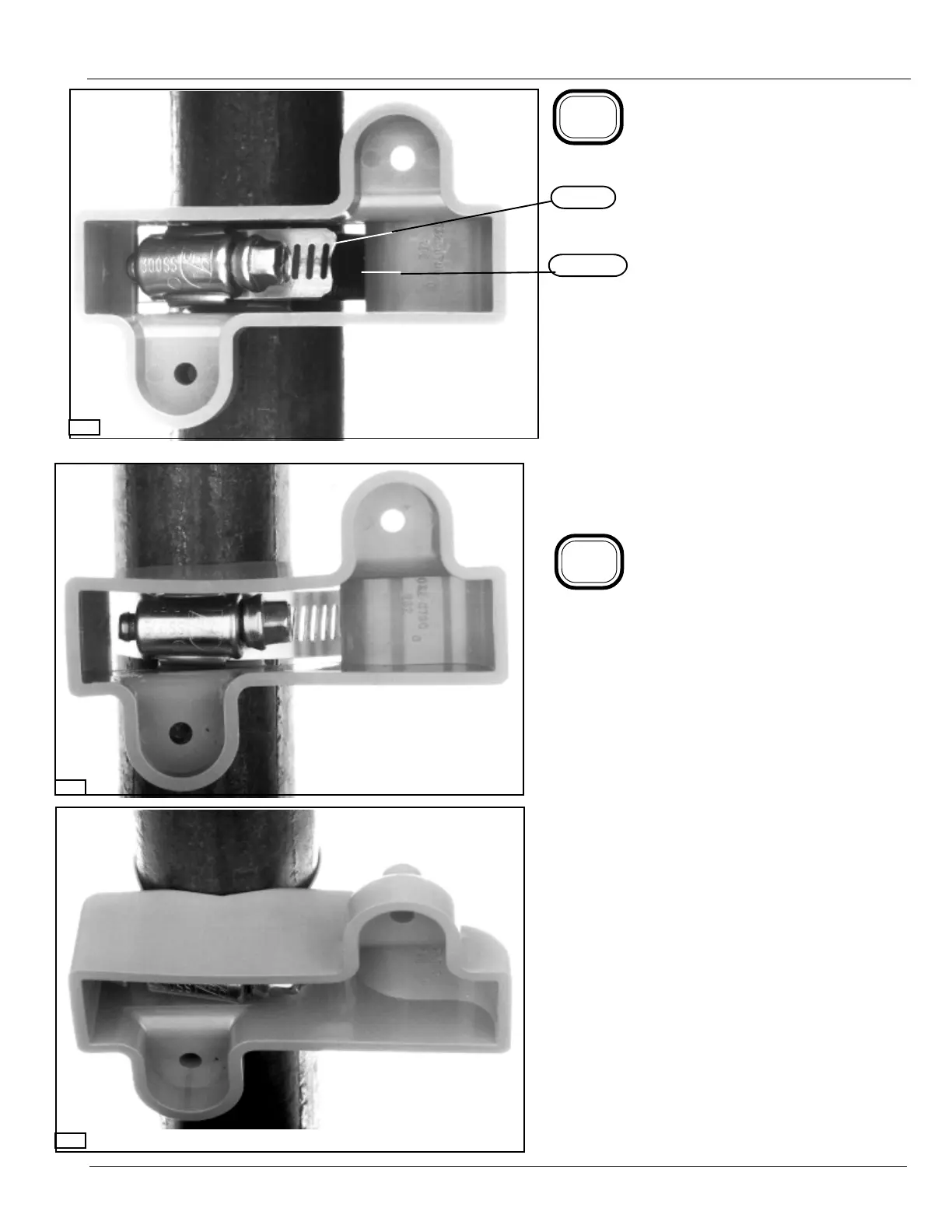

Position the pipe bracket where you want it
on the pipe.
Position the band clamp as shown. Then
fully tighten the band clamp screw.
7-8
When the end of the band gets about
this far
out of this side of the screw assembly,
push it through
this hole
in the pipe bracket.
Then tighten the band-clamp screw three or
four more turns to make sure the end of the
band does not pop back out on this side of
the pipe bracket.
When the band clamp screw is fully
tightened, the band clamp and
bracket should look like this.
