Installing 40W and 50W ERT Modules PUB-0126-001 4/04
00869
00868
00797

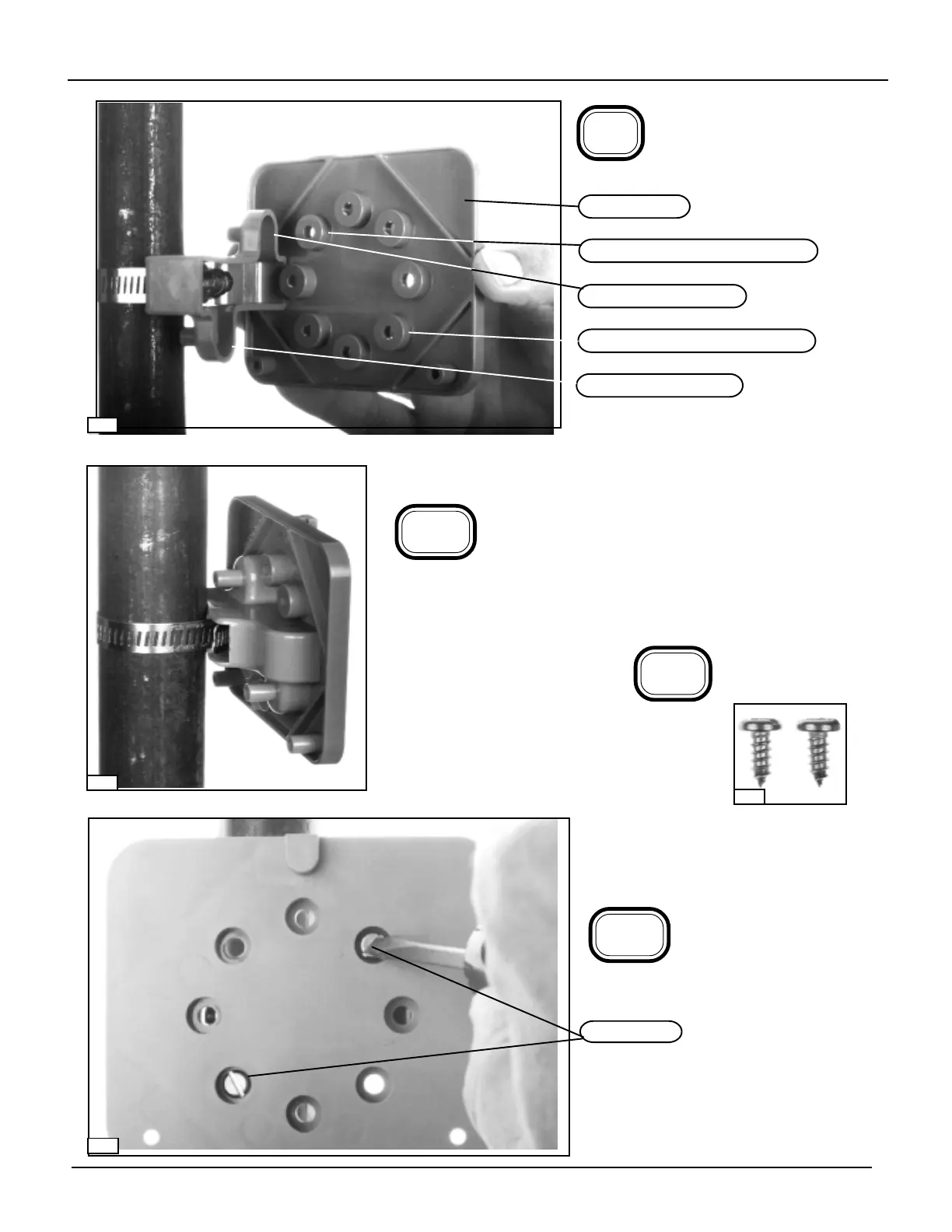

When the adapter plate is properly positioned on the
pipe bracket, it looks like this.
00779
Obtain two adapter-plate mounting screws
(shown here actual size) from the pipe
mount/register mount Installation kit.
7-10
7-12
7-9
Place an
adapter plate on the bracket.
This adapter-plate screw boss
goes into
this bracket recess.
This adapter-plate screw boss
goes into
this bracket recess.
7-11
Install the adapter-plate mount-
ing screws in
these holes.
Hand tighten both screws.
7-4
