Installing 40W and 50W ERT Modules PUB-0126-001 4/04
00775
Band Clamp for attaching
the pipe bracket to a pipe
or
for installing an ERT module to
a Schlumberger or Sensus
register (see Section 7)
Two screws for
attaching an ERT
module to the
adapter plate
Two screws for
attaching the adapter
plate to the pipe bracket

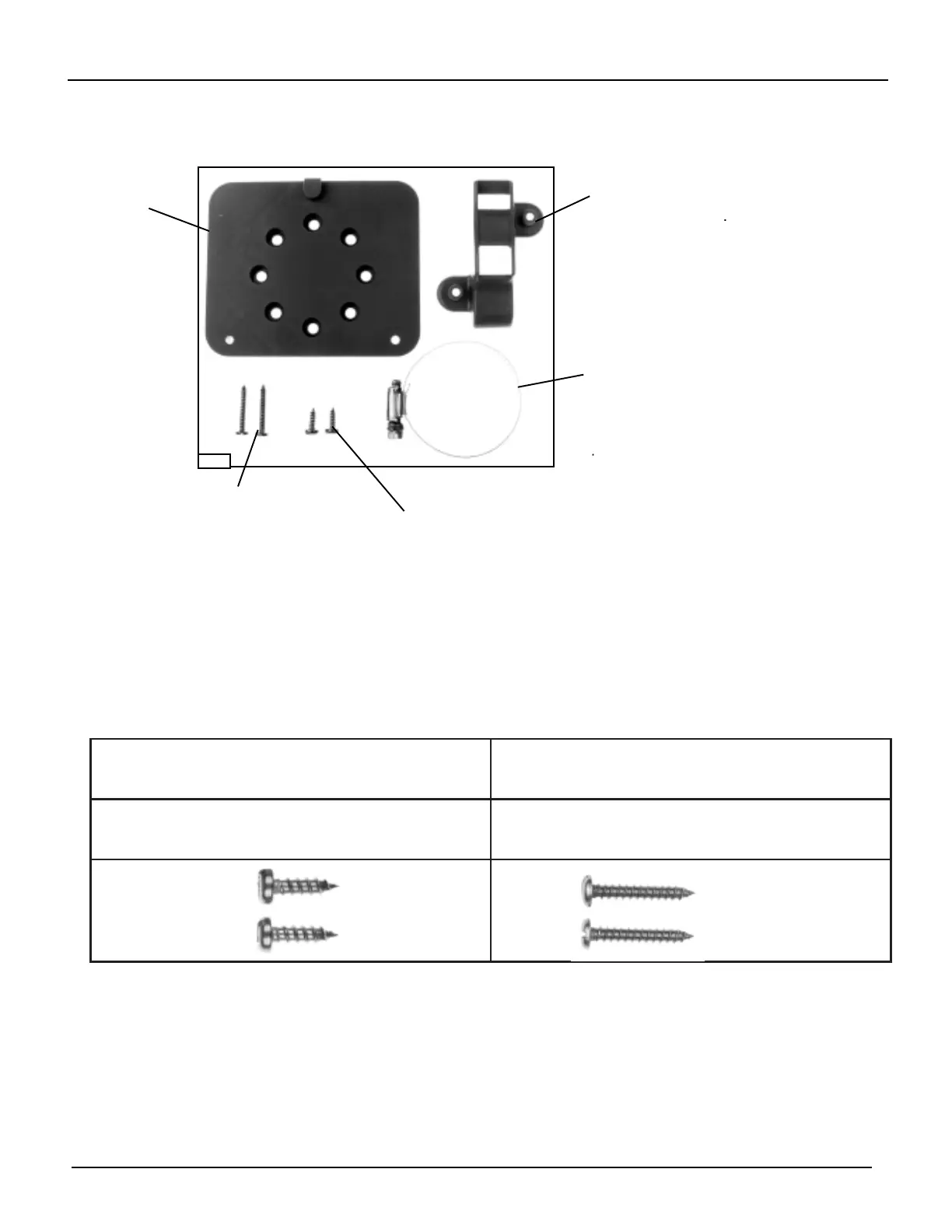

40W/50W Pipe Mount and Register Mount Installation Kit
Specifications for the screws supplied in the Pipe/Register Mount Installation Kit are
given below. The screws are shown approximately actual size.
For Mounting Adapter Plates on Pipe Brackets For Mounting 40W/50W ABB Scancoder
ERT Modules on Adapter Plates
8-16 x 1/2 Type AB slotted pan head
tapping screw, corrosion resistant steel
8-16 x 1 Type AB slotted pan head tapping
screw, corrosion resistant steel
B-3
Pipe Bracket
Adapter
Plate
