Installation
10 PanCam/Pantel/Pancode Installation and Programming Manual
For this type of installation, the access - control device “N.O. ”
output wires are connected to the Pantel/Pancode Switch
terminals (see Figure 2 - 5.)

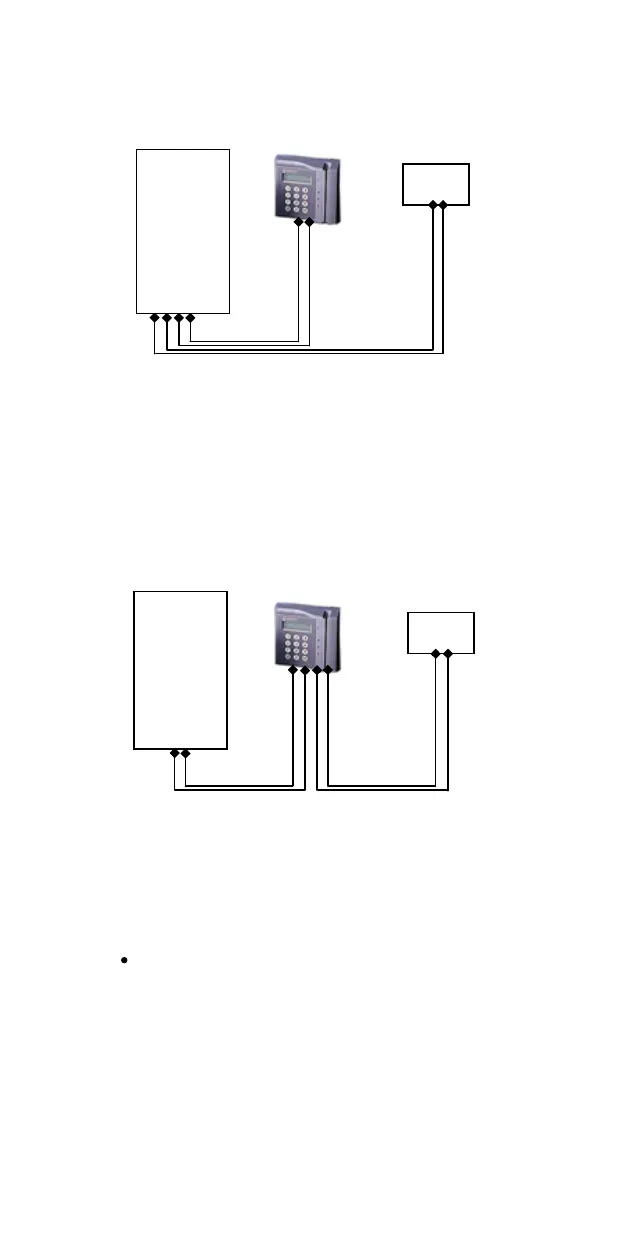

Figure 2 - 5. Pantel/Pancode – Controlling Lock Relay
2.2.2 Adding Pantel/Pancode to an Access Control
Device
The access -control device opens the door when the
Pantel/Panco de triggers the access - control device.
For this installation, the access - control device bypass
“ Switch” wires are connected to the “ N.O.” and “CMN”
terminals of the Pantel/Pancode. The door - lock relay wires are
connected to the access - control device (see F igure 2 - 6.)
Figure 2 - 6. Access Control - Controlling Lock Relay
2.3 Connection Schematic
The Pantel/Pancode offers multiple wiring options.
Option 1: For use with an external device, which
requires the Pancode to be set up as “Normally
Closed”
N.O.
Output
Switch
Lock
Relay
Pancode/
Pantel
N.O. and
CMN
Lock
Relay
Pancode/
Pantel
