ITT 3196 i-FRAME - Assemble the Rotating Element and the Bearing Frame ( XLT-I and I17 )

236A
253B
134
496
332A

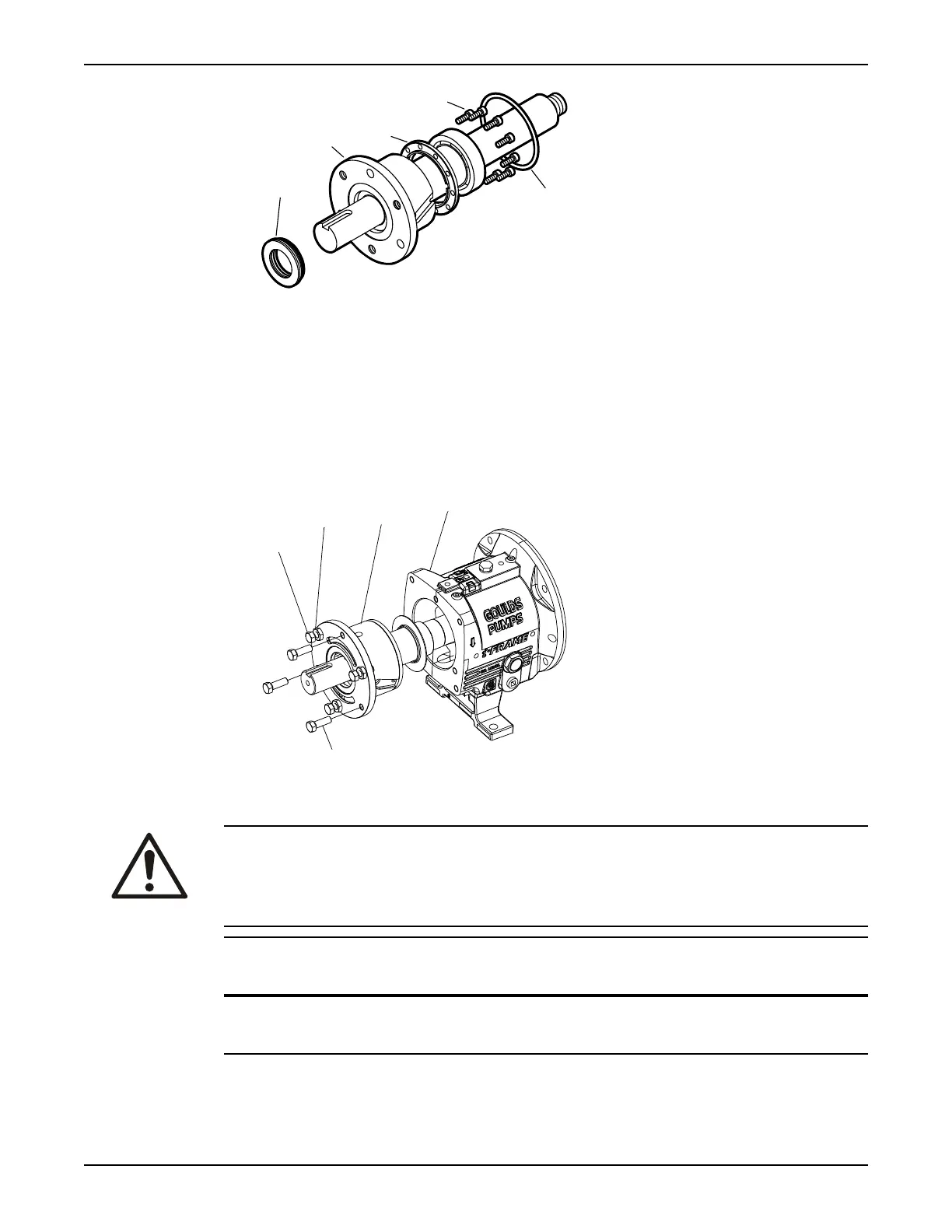

12. Install the shaft assembly into the bearing frame as follows (see the illustration):
a) Coat the outside of the bearing housing (134) with oil.
b) Coat all the internal surfaces of the bearing frame (228) with oil.
c) Install the shaft assembly into the bearing frame (228).
Make sure that the shaft rotates freely.
d) Install the clamp bolts (370C) in the bearing housing (134) and tighten by hand.
e) Install the jack bolts (370D) with the locknuts (423) in the bearing housing (134) and tighten by
hand.
228A
134
370D
423
370C
Assemble the rotating element and the bearing frame ( XLT-i and i17 )
CAUTION:
• Wear insulated gloves when you use a bearing heater. Bearings get hot and can cause physical injury.
• Use care when you handle the shaft because it can be heavy. Failure to do so could result in personal
injury.
NOTICE: Make sure that the pipe threads are clean, and that you apply thread sealant to the plugs and
fittings. Failure to do so may result in equipment damage or decreased performance.
NOTICE: Use an induction heater that heats as well as demagnetizes the bearings when you install
bearings. Failure to do so may result in decreased performance.
1. Prepare the bearing frame (228) as follows (see the illustration):
a) Install the oil-fill plug (113A).
b) Install the oil-drain plug (408A).
c) Install the sight glass (319).
Maintenance
102 Model 3196 i-FRAME Installation, Operation, and Maintenance Manual
