Frame Inboard bearing
Outboard bearing
Double row Duplex
MTi 6309
3309 7309
LTi 6311 Not applicable 7310
XLT-i, i17 6313 3313 7313
Spare parts
Always state the serial number and indicate the part name and item number from the relevant sectional
drawing when you order spare parts. It is imperative for service reliability to have a sufficient stock of
readily available spare parts.
• Impeller (101)
• Shaft (122A)
• Shaft sleeve (126)
• Outboard bearing (112A)
• Inboard bearing (168A)
• Casing gasket (351)
• Frame-to-adapter gasket (360D)
• Bearing-housing retaining ring (361A)
• Bearing lockwasher (382)
• Bearing locknut (136)
• Impeller O-ring (412A)
• Bearing-housing O-ring (496)
• Outboard labyrinth-seal rotary O-ring (497F)
• Outboard labyrinth-seal stationary O-ring (497G)
• Inboard labyrinth-seal rotary O-ring (497H)
• Inboard labyrinth-seal stationary O-ring (497J)
• Lantern ring half (105) (packed stuffing box)
• Stuffing box packing (106) (packed stuffing box)
• Packing gland (107) (packed stuffing box)
• Impeller gasket (428D) (XLT-i and i17 only)

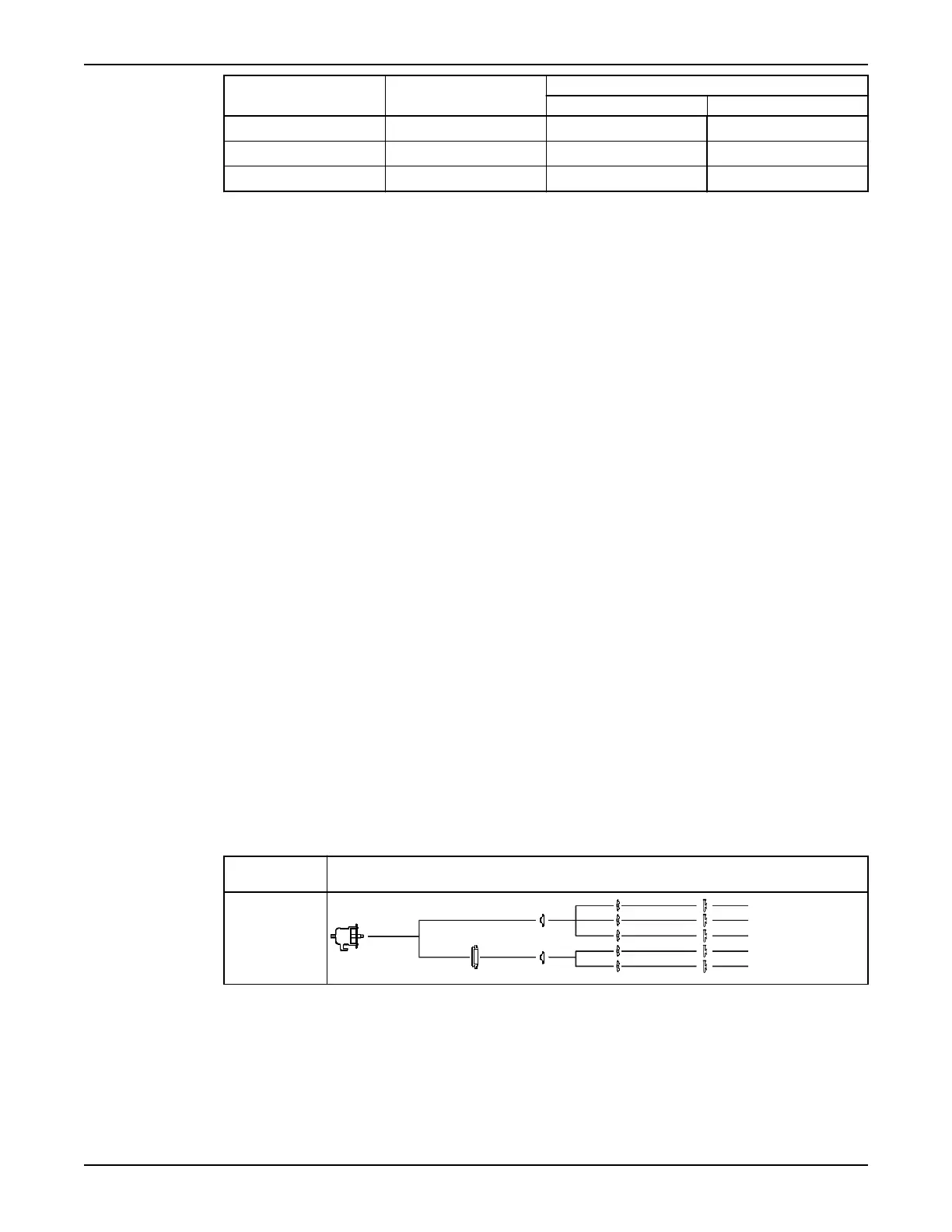

Interchangeability drawings
3196 interchangeability
Table 22: 3196 interchangeability drawing
Description
Shaft and Bearing
Frame Assembly
Adapter Seal Chamber Impeller Casing Size
Model 3196 STi
1–3/8 in. Shaft
Dia. Max
BHP-40 HP
1x1.5-6 AA
1.5x3-6 AB
2x3-6 AC
1X1.5-8 AA
1.5X3-8 AB
Maintenance
126 Model 3196 i-FRAME Installation, Operation, and Maintenance Manual
