ITT 3196 i-FRAME - Remove the Dynamic Seal; Remove the Frame Adapter (Mti, Lti, XLT-I, I17)

105
184
106

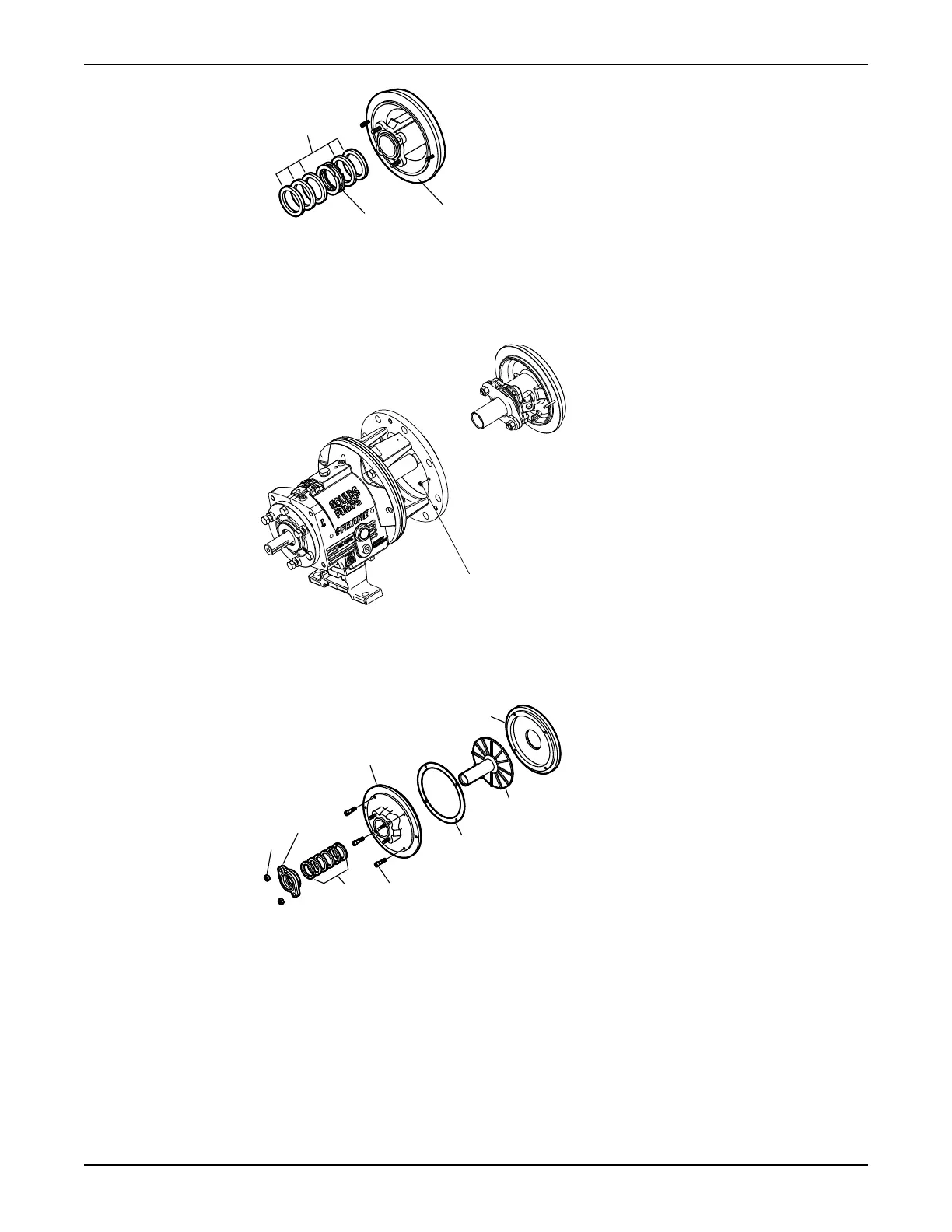

Remove the dynamic seal
1. Remove the stud nuts (370H).
2. Remove the dynamic-seal assembly.
370H
3. Remove the socket head cap screws (265).
4. Remove the packed stuffing box cover (184) and gasket (264).
5. Remove the repeller (262) from the backplate (444).
444
184
262
264
107
355
106
265
Remove the frame adapter (MTi, LTi , XLT-i , i17)
The 3198 frame adapter is not interchangeable with the adapter of any other model.
1. Remove the dowel pins (469B) and the bolts (370B).
2. Remove the frame adapter (108).
3. Remove and discard the gasket (360D).
You will install a new gasket during reassembly.
Maintenance
Model 3196 i-FRAME Installation, Operation, and Maintenance Manual 75
