Methods for sealing the shaft
These sections discuss the methods that you can use to seal the shaft.
• Seal the shaft with a dynamic seal.
• Seal the shaft with a cartridge-mechanical seal.
• Seal the shaft with a conventional inside-component mechanical seal.
• Seal the shaft with a conventional outside-component mechanical seal.
• Seal the shaft with a packed stuffing box.
Seal the shaft with a dynamic seal

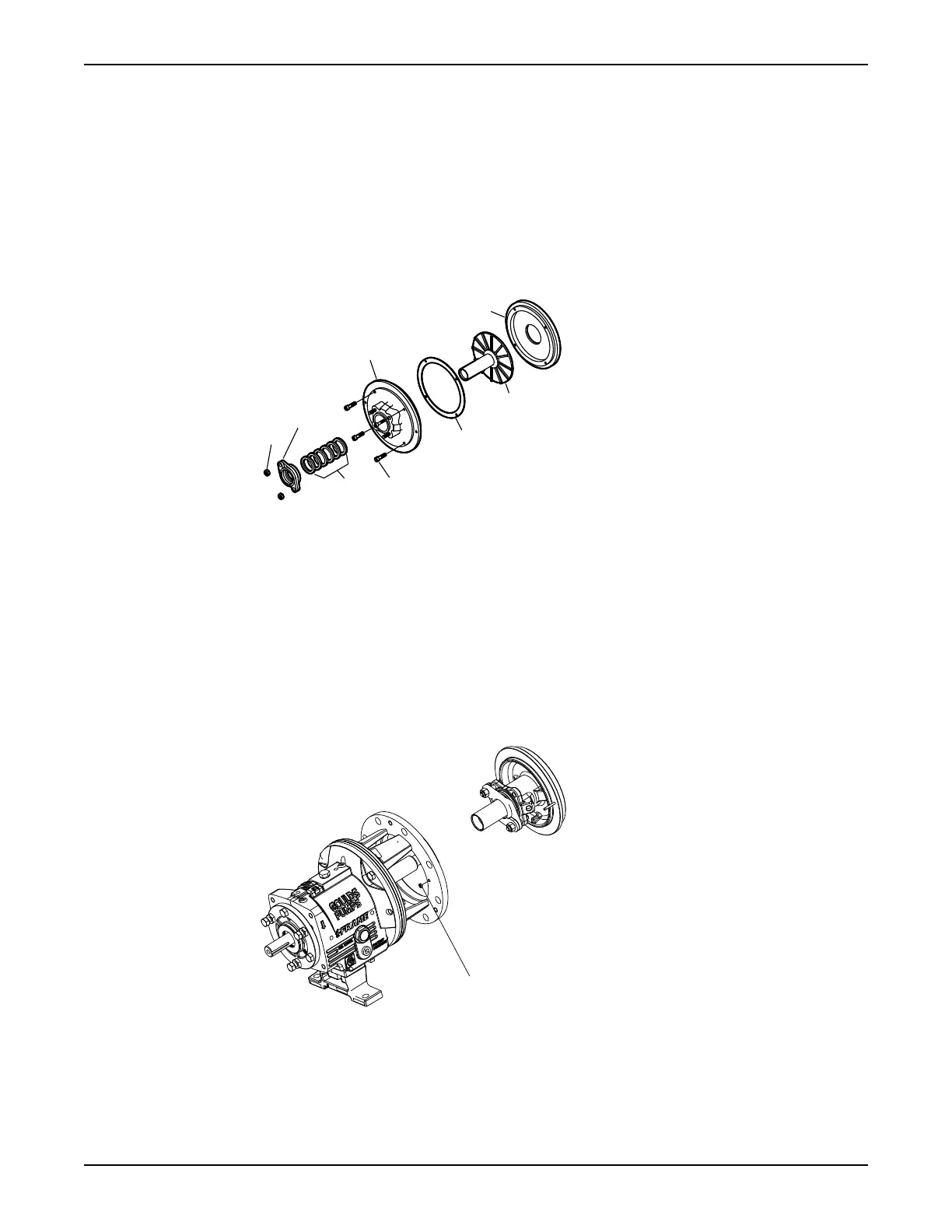

1. Place the backplate (444) with the flat side down on the bench.
2. Place the repeller (262) in the backplate (444) with the sleeve side up.
3. Place a Teflon gasket (264) on the backplate (444) and align the holes in the gasket with the holes in
the backplate.
4. Place a stuffing-box cover (184) on the backplate (444) and align the holes in the gasket with the holes
in the backplate.
5. Install four socket-head capscrews (265) and tighten them securely.
6. Install a new sealing element into the gland.
7. Install a gasket (360Q) and gland (107) on the stuffing-box cover (184).
8. Install the nuts (355).
9. Install a dynamic-seal assembly and nuts (370H).
10. Check the stuffing-box-cover runout and rotate the indicator through 360 degrees.
An indicator reading that is greater than 0.005 in. (0.013 mm) indicates a problem.
