ITT 3196 i-FRAME - Page 143

Either
side
408M
408N
100
351
101
370H
412A
184
418
126
333A
497H
469B
168
408A
241
370F
408L
319
228A
112
423B
370D
497G
332A
122
400
497F
136
382
370C
496
134
361A
372T
761B
113A
408W
497J
370B
360D
370
108

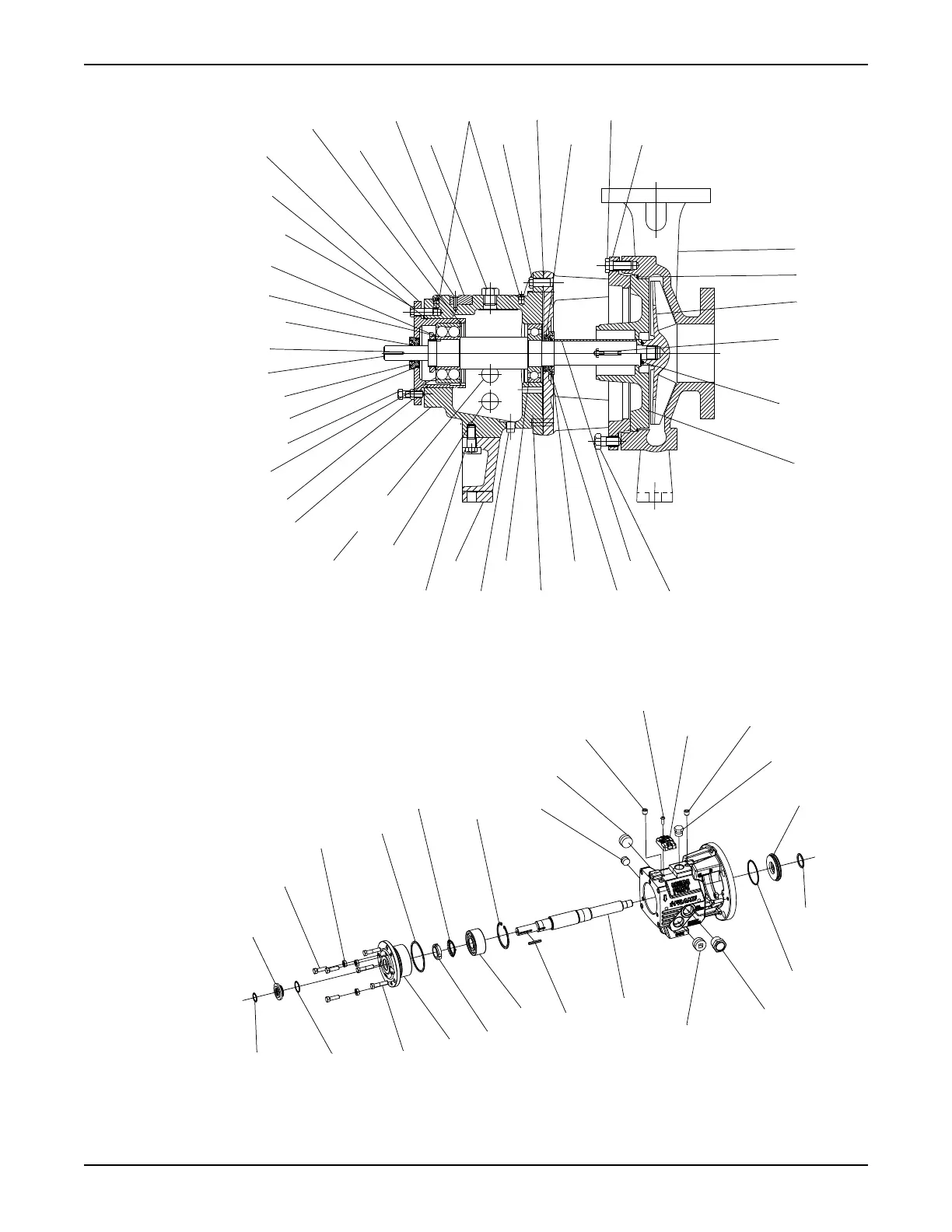

Figure 30: 3196 cross-sectional drawing
497G
370D
423
370C
134
496
136
382
112A
361A
400
122
332A
497F
333A
497H
497J
408N
408L
319
408L
408W
372T
761B
113A
408W
Figure 31: STi bearing-frame exploded view
