Nameplate field Explanation
MAT L. CONST Material of which the pump is constructed
SER. NO. Serial number of the pump
MAX. DSGN KG/CM
3
@
20°C
Kilograms per cubic centimeter at 20°C

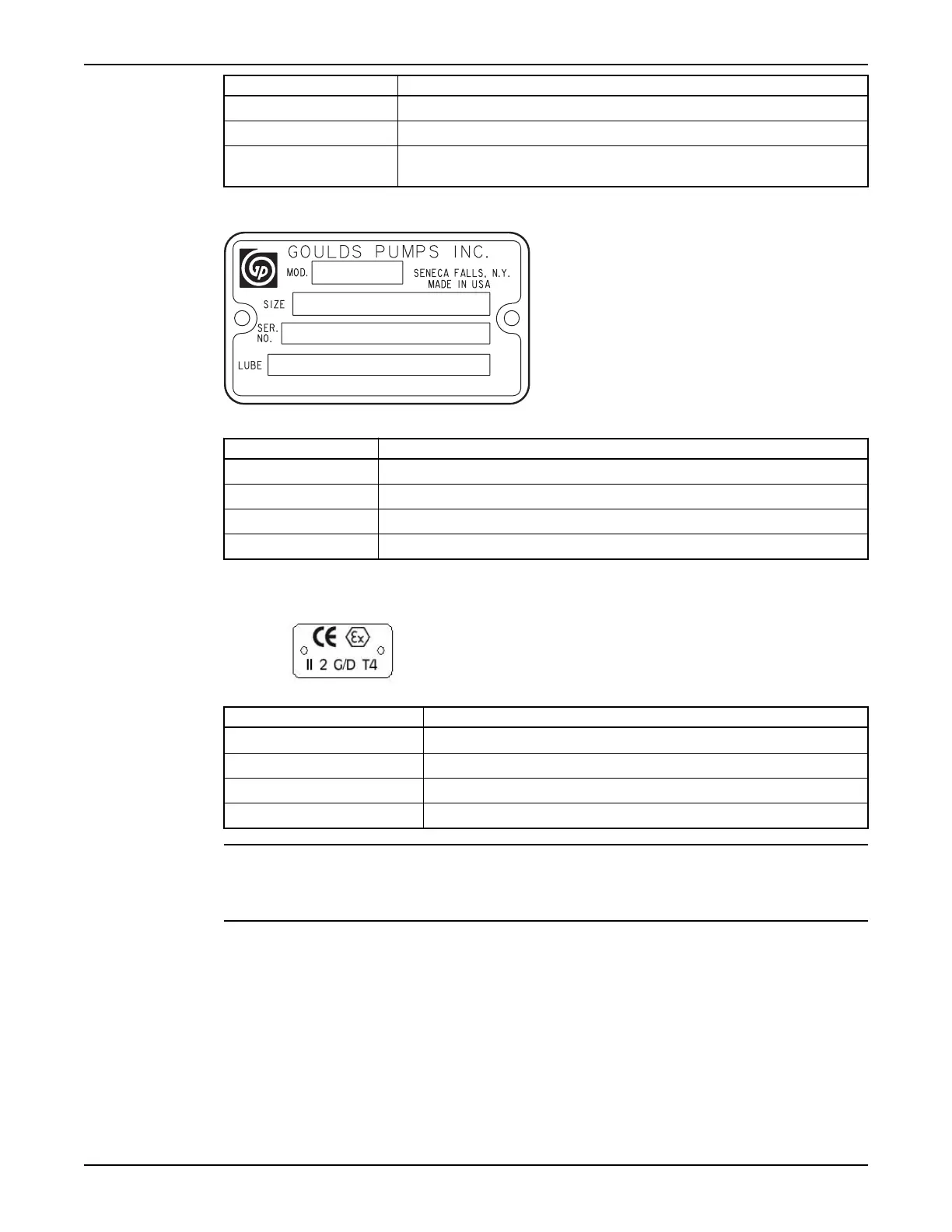

Nameplate on the bearing frame
Table 7: Explanation of the nameplate on the bearing frame
Nameplate field Explanation
MOD. Pump model
SIZE Size of the pump
SER. NO. Serial number of the pump
LUBE Lubricant, oil or grease
ATEX nameplate
Nameplate field Explanation
II Group 2
2 Category 2
G/D Pump can be used when gas and dust are present
T4 Temperature class
NOTICE: Make sure that the code classifications on the pump are compatible with the specific
environment in which you plan to install the equipment. If they are not compatible, do not operate the
equipment and contact your ITT representative before you proceed.
