7. Level the baseplate and make the final height adjustments:
a) Loosen the upper jam nuts and adjusting nuts.
b) Adjust the height and level the baseplate by moving the lower adjusting nuts.
c) When the baseplate is level, tighten the top adjusting nuts.
8. Fasten the lower and upper jam nuts on each stilt.
1
2
3
4
5
6
7
8
1. Mounting plate
2. Mounting nut
3. Stilt bolt
4. Foundation cups
5. Washer
6. Upper adjustment nut
7. Mounting washer
8. Mounting bolt

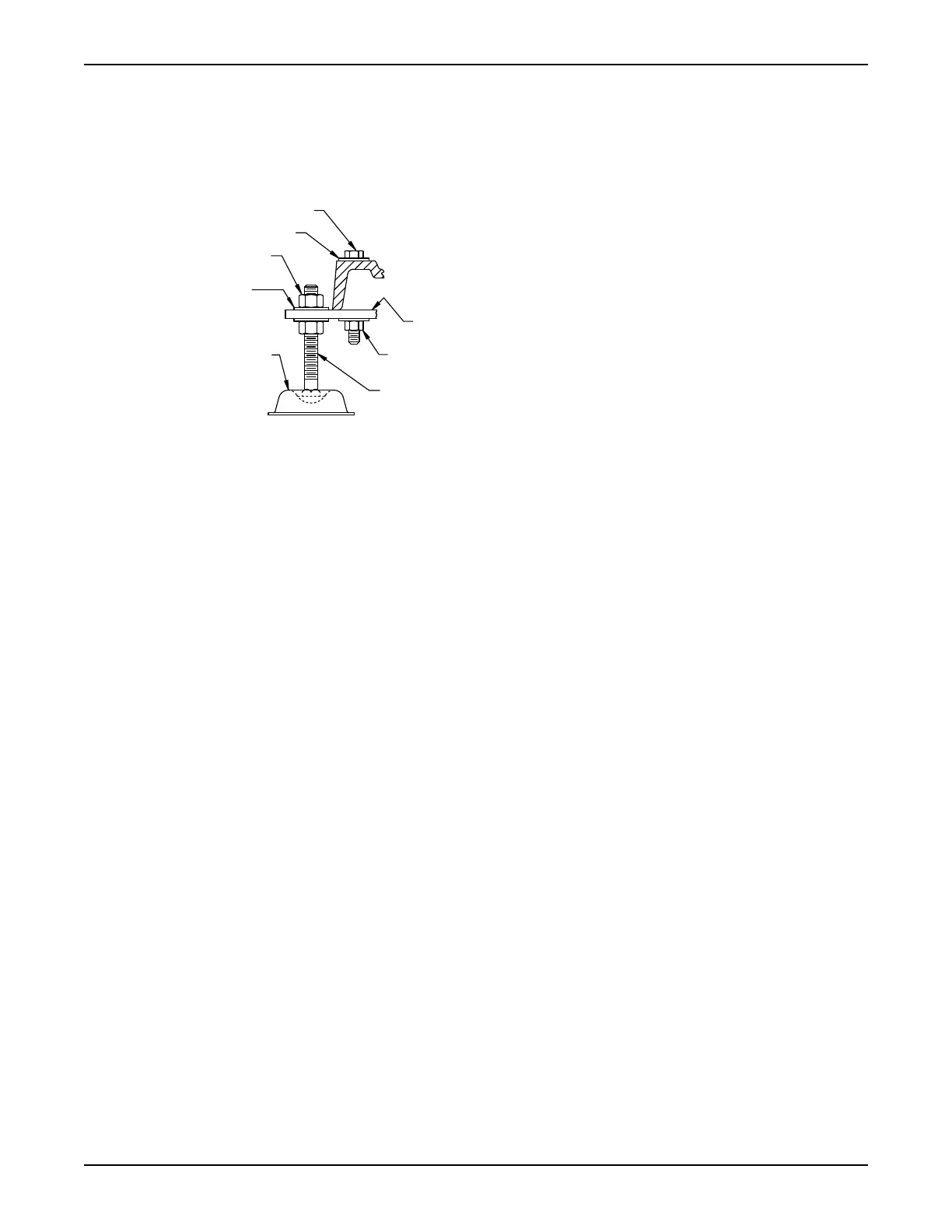

Figure 10: Example of an installed stilt assembly
Installation
