ITT 3196 i-FRAME - Page 44

Annular
Driver
Driver-side coupling guard
groove
6. Remove the remaining nut, bolt, and washers from the pump half of the coupling guard.
It is not necessary to remove the end plate from the pump side of the bearing housing. You can access
the bearing-housing tap bolts without removing this end plate if maintenance of internal pump parts
is necessary.

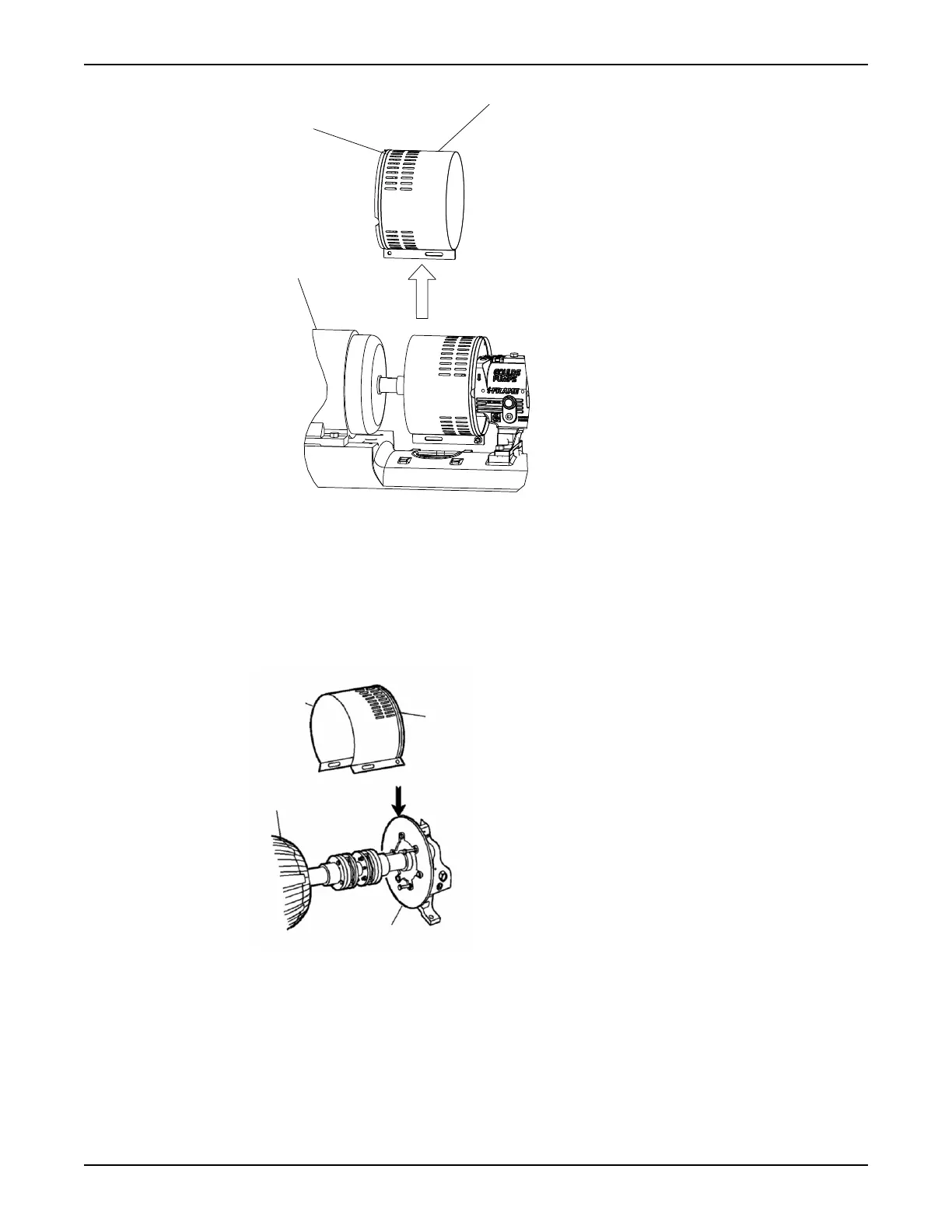

7. Remove the pump half of the coupling guard:
a) Slightly spread the bottom apart.
b) Lift upwards.
1
2
3
4
1. Annular groove
2. Pump-side end plate
3. Driver
4. Pump half of the coupling guard
