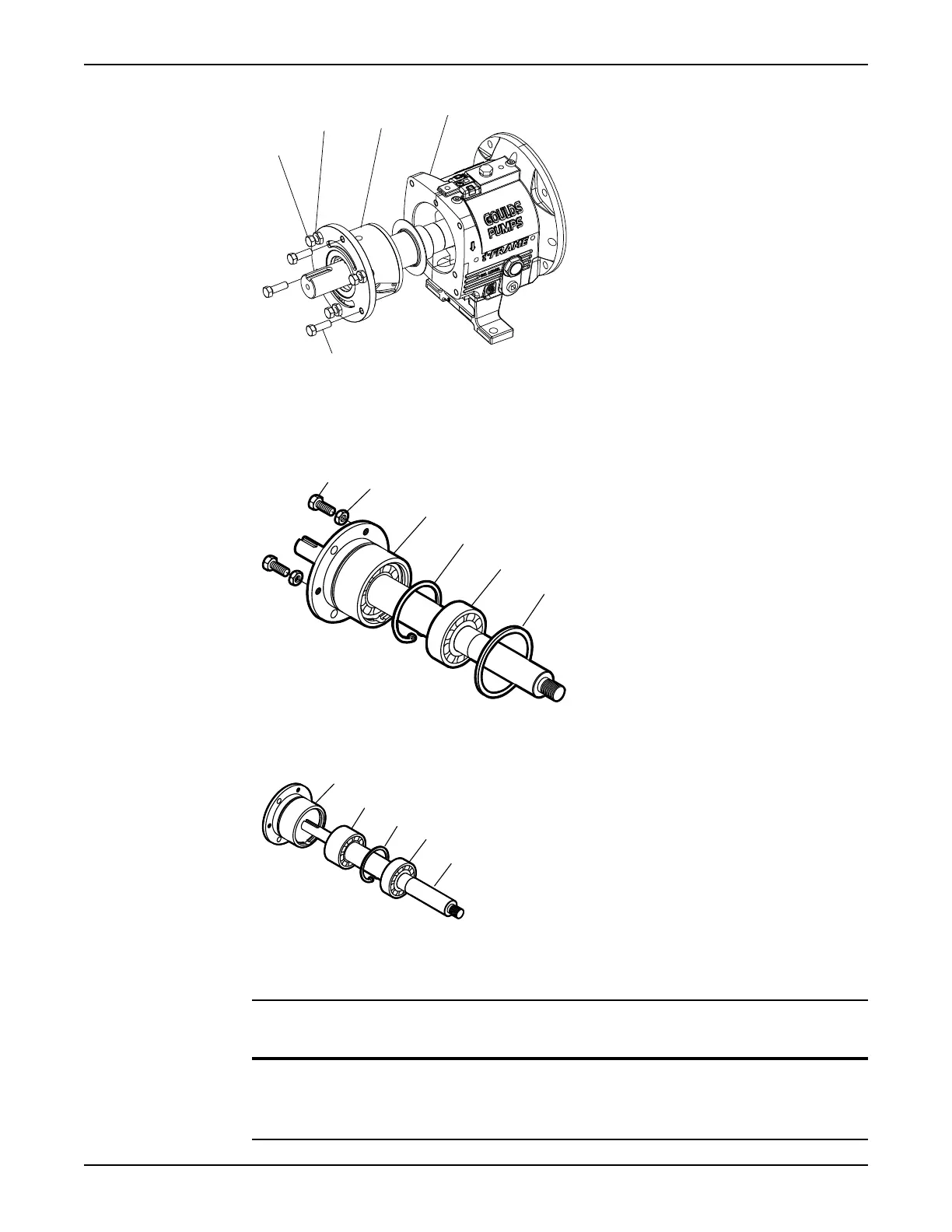

4. Remove the jack screws (370D) with nuts (423).
5. Remove the bearing housing O-ring (496) and the bearings.
6. Remove the outboard bearing retaining snap ring (361A).
7. Remove the bearing housing (134) and bearings (112A and 168A) from the shaft (122).
8. Remove the bearing locknut (136) and bearing lock washer (382).
9. Remove the inboard bearing (168A).
10. Remove the outboard bearing (112A).
NOTICE: Use force only on the inner race when you press bearings off the shaft. Do not use force
in situations in which you might break a part. Doing so may result in equipment damage.
NOTICE:
Save the bearings for inspection. Do not reuse the bearings. Doing so may result in decreased
performance.
Maintenance
Model 3196 i-FRAME Installation, Operation, and Maintenance Manual 77
