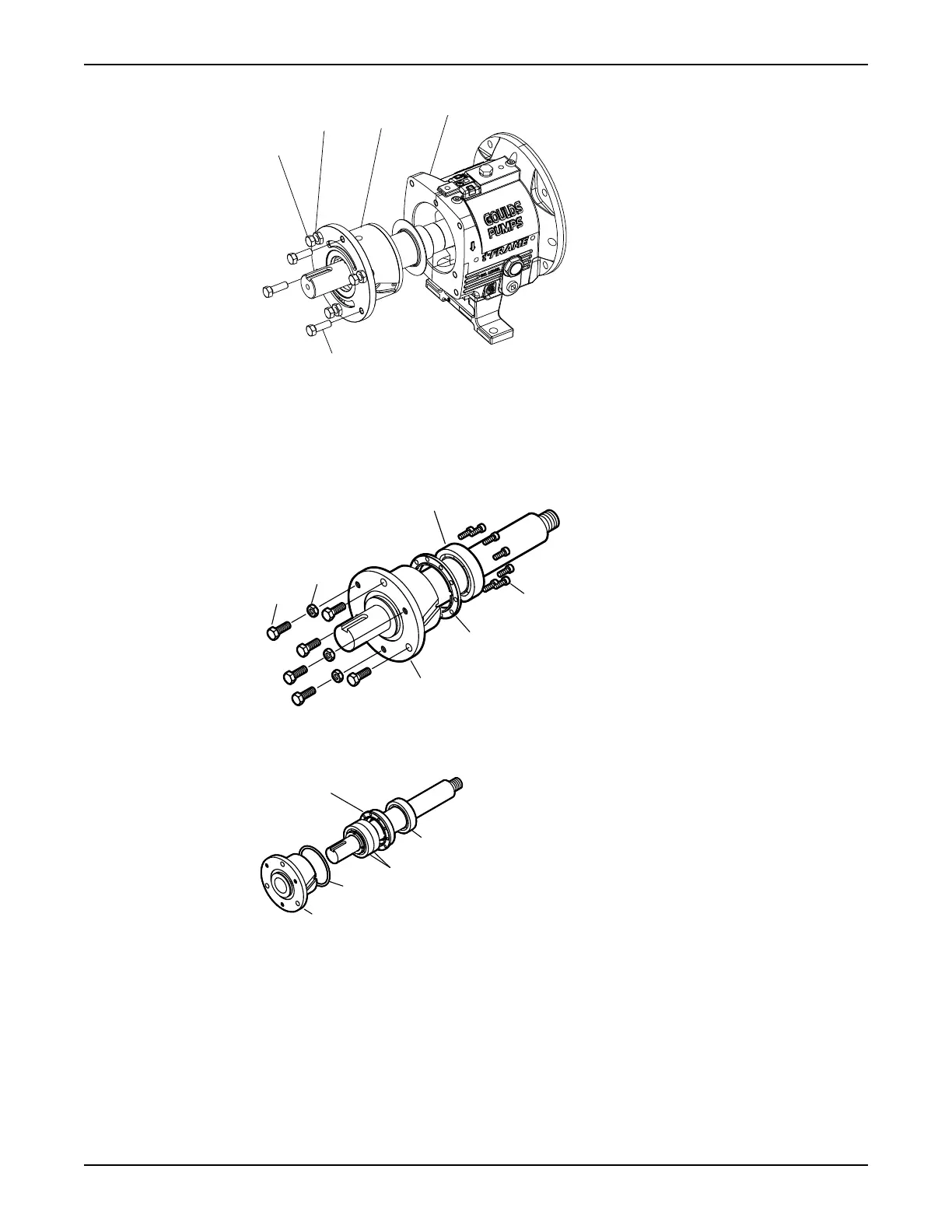

4. Remove the jack screws (370D) with the nuts (423).
5. Remove the clamp-ring screws (236A) and separate the clamp ring (253B) from the bearing housing
(134).
You must remove the bearings before you can remove the clamp ring from the shaft.
6. Remove the bearing housing (134) and the bearings (112A and 168A) from the shaft (122).
7. Remove the bearing housing O-ring (496) and the inboard bearing (168A).
Maintenance
80 Model 3196 i-FRAME Installation, Operation, and Maintenance Manual
