ITT 3196 i-FRAME - Page 86

122
168A
248A
112A
136
382
253B

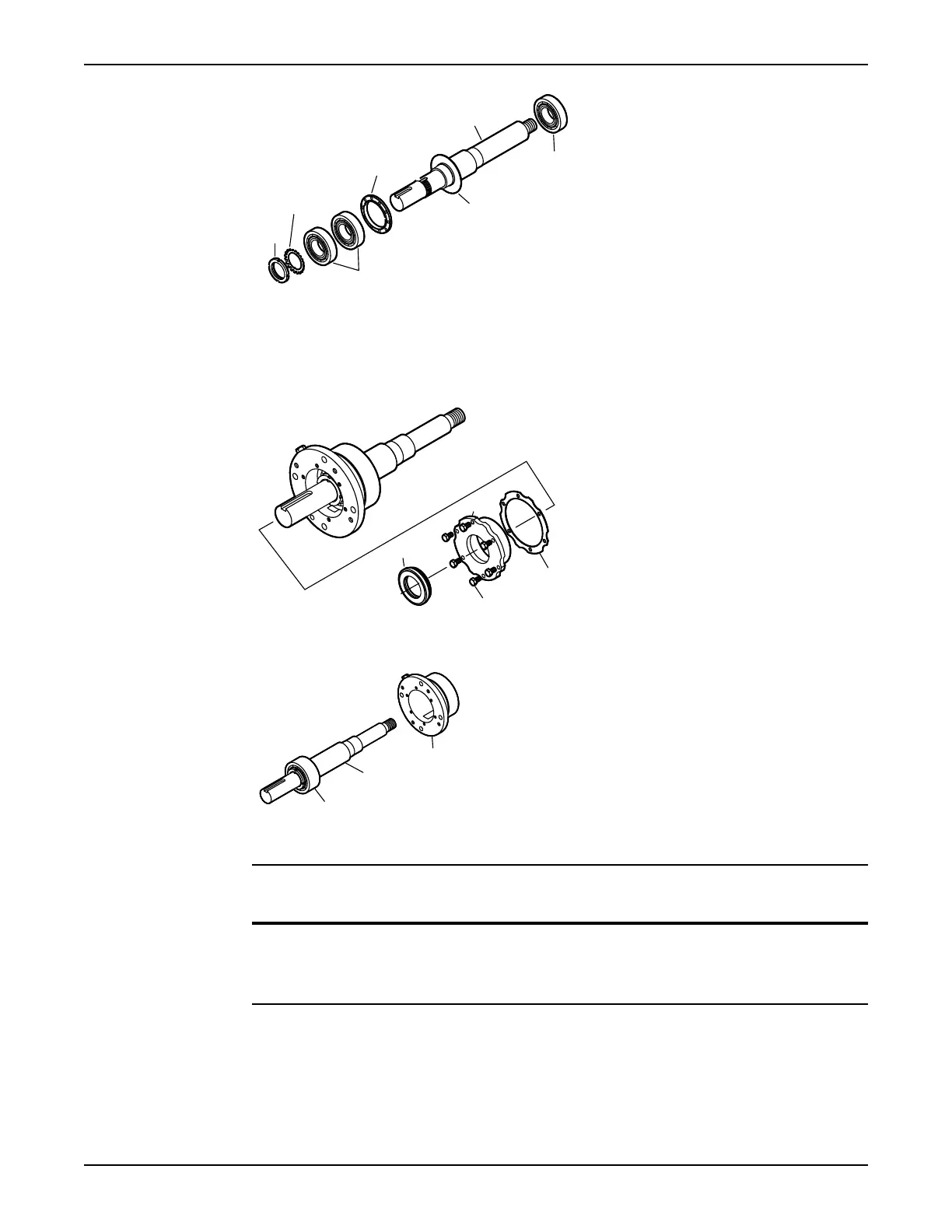

7. Remove the bolts (371C), the end cover (109A), and the gasket (360C).
8. If necessary, remove the outboard labyrinth oil seal (332A) from the end cover (109A) and remove the
O-rings (497F and 497G).
Labyrinth oil-seal O-rings are part of the 3196 maintenance kits, or they are sold separately.
109A
332A
371C
360C
9. Remove the bearing housing (134) and bearings (112A) from the shaft (122) .
134
122
112A
10. Remove the bearing locknut (136), the bearing lockwasher (382), and the outboard bearing (112A).
NOTICE: Use force only on the inner race when you press bearings off the shaft. Do not use force
in situations in which you might break a part. Doing so may result in equipment damage.
NOTICE:
Save the bearings for inspection. Do not reuse the bearings. Doing so may result in decreased
performance.
Maintenance
84 Model 3196 i-FRAME Installation, Operation, and Maintenance Manual
