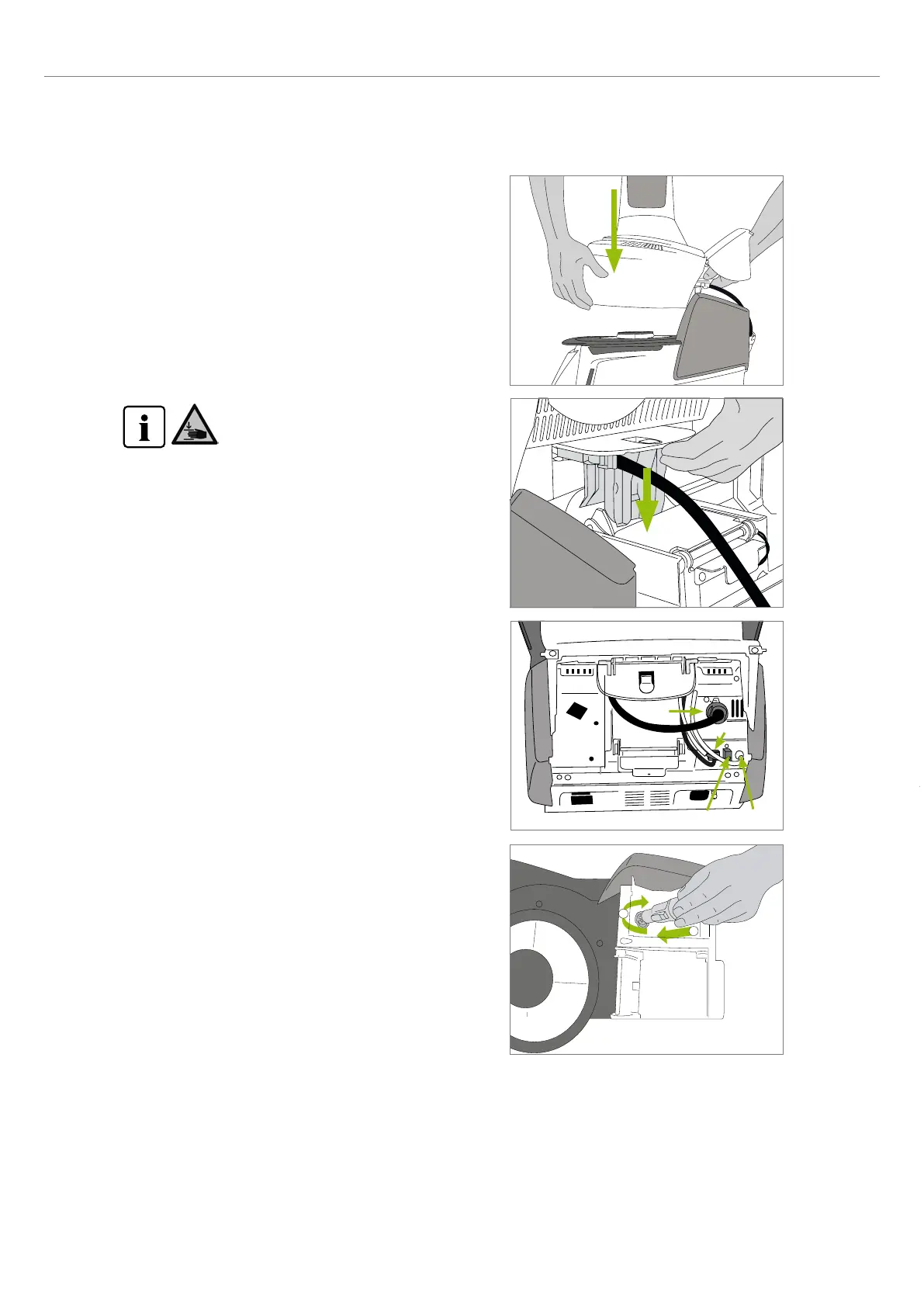

Step 3:
Mount the furnace head.
The furnace head is best mounted with the rear panel of the furnace
pointing towards the user. Lift the furnace head with both hands
(see picture) and carefully position it on the furnace head mounting.
Step 4:
Connect the cables.
Connect the cables of the furnace head with the furnace base.
Proceed as follows:
– Connect the vacuum hose.
– Insert the thermocouple plug (make sure that the polarity of the
plug is correct).
– Insert the press drive plug.
– Insert the heater plug.
1. Insert the heater plug into the intended connector.
2. Secure the heater plug by rotating it 45° until it snaps into
place.
Position the furnace head mounting as shown in
the picture until the furnace head audibly snaps
into place. Make sure that the firing plate and the
insulation are not damaged by mounting the
furnace head.
4. Installation and Initial Start-Up
