4.3 Assembly
Assembling the furnace is very easy and involves only few steps. Before you start assembling the furnace, make sure that
the voltage indicated on the rating plate (27) complies with the local power supply. If this is not the case, the furnace must
not be connected!

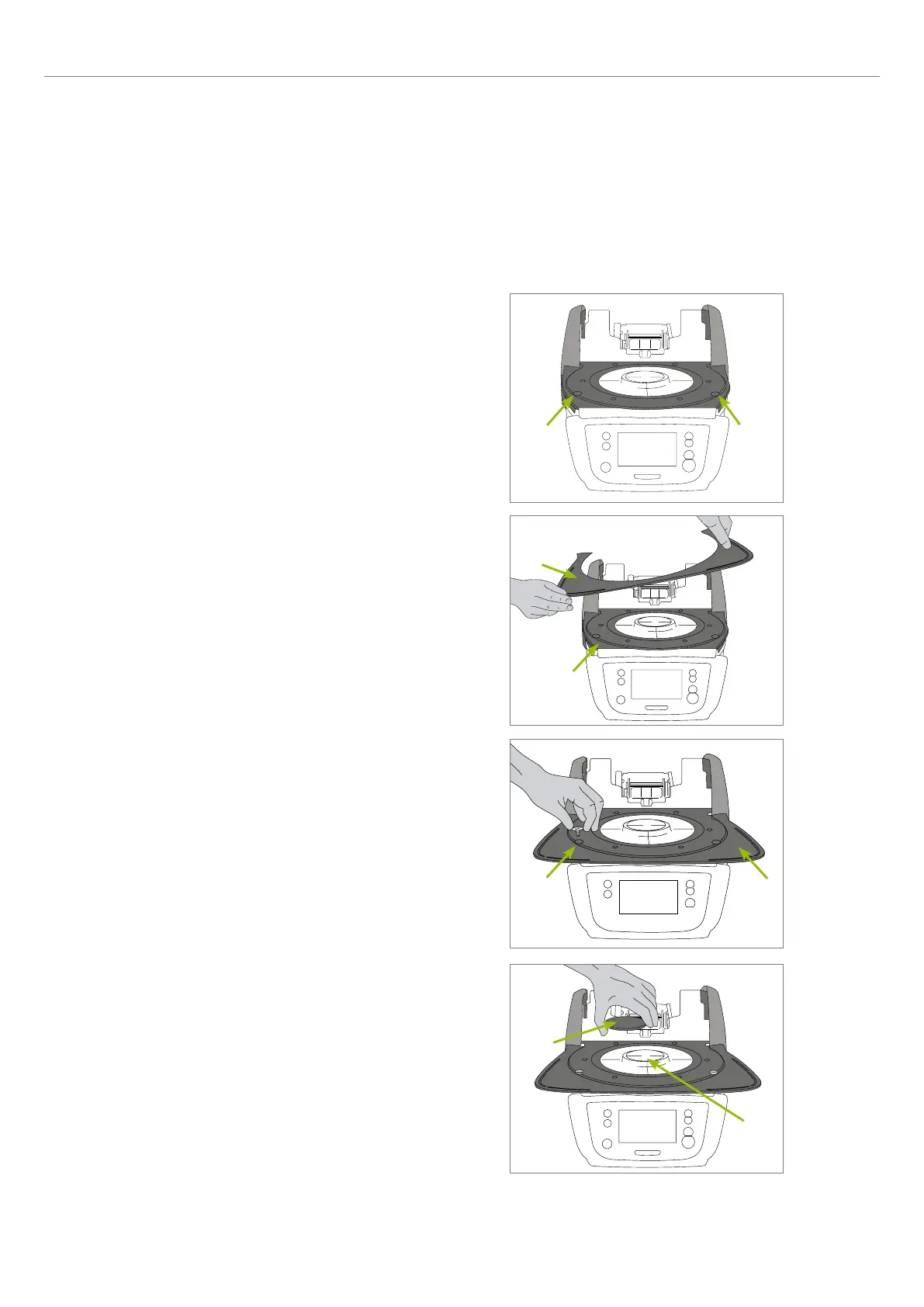

Step 1:
Mount the cooling tray (7).
Remove the two screws for the cooling tray (8).
Secure the cooling tray (7) with the two screws (8).
Step 2:
Place the firing plate.
Place the firing plate (17) on the firing plate holder (18). If placed
correctly, the bottom of the firing plate is automatically centred in
the firing plate holder.
Place the cooling tray (7) on the frame plate (19). Make sure that the
cooling tray is correctly positioned on the frame plate.
8 8
4. Installation and Initial Start-Up
