IVT Greenline HC 22 User Manual

Dimensions and clearance
6 720 645 504 (2011/04) en
13

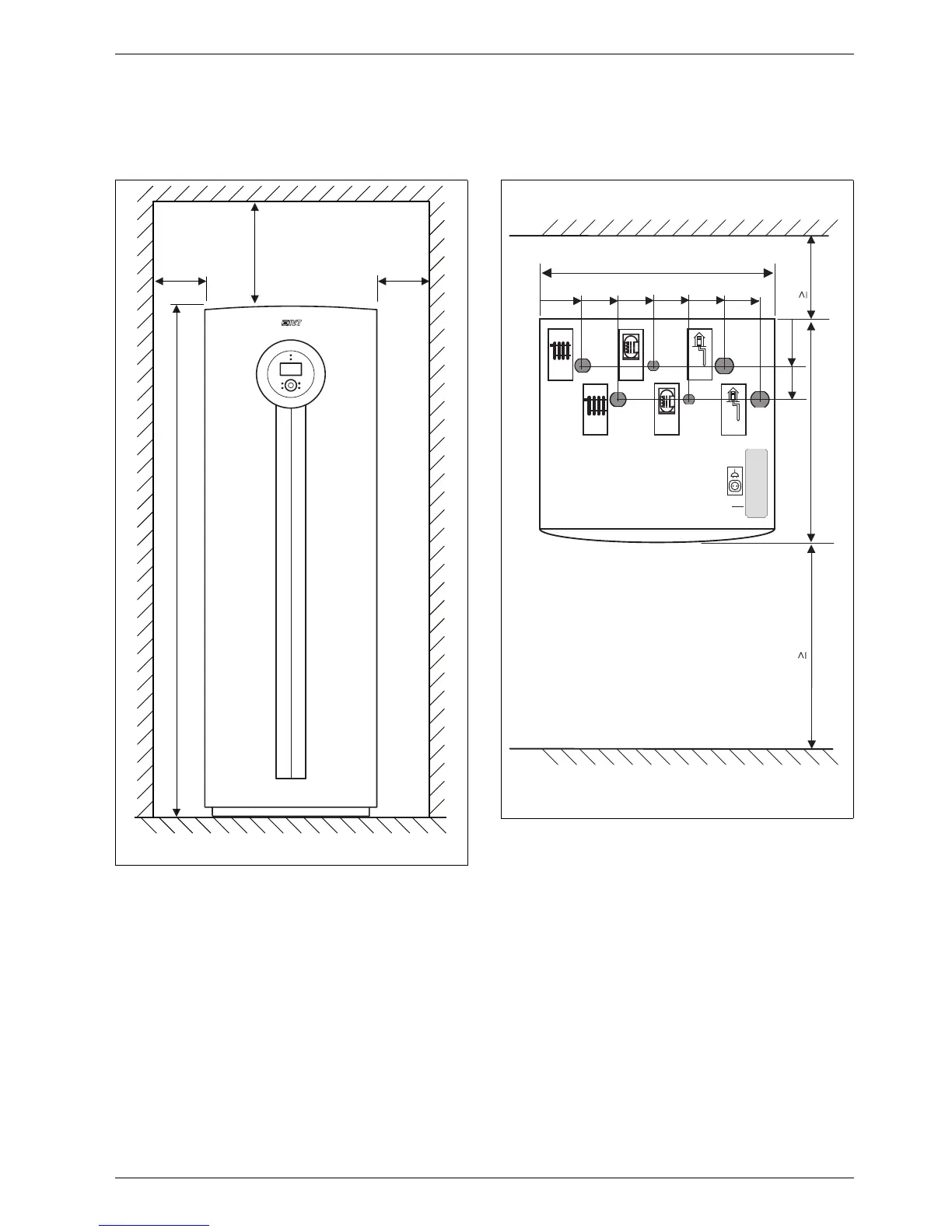

7 Dimensions and clearance
7.1 HC 22 - 33
Fig. 7 Front view
Fig. 8 Top view
All dimensions are stated in mm.:
A Collector circuit out
B Collector circuit in
C Return, hot water heater
D Flow, hot water heater
E Heat transfer fluid in
F Heat transfer fluid out
G Electrical connections
≥100 ≥350
≥600
1640
6 720 645 504-03.1I
E
B
A
F
C
D
700
810
300
135
230
1200
G
100
200
300
400
500
600
6 720 614 967-8.2I
