Electrical connections
6 720 645 504 (2011/04) en
33
11.4.3 Overview of circuit boards

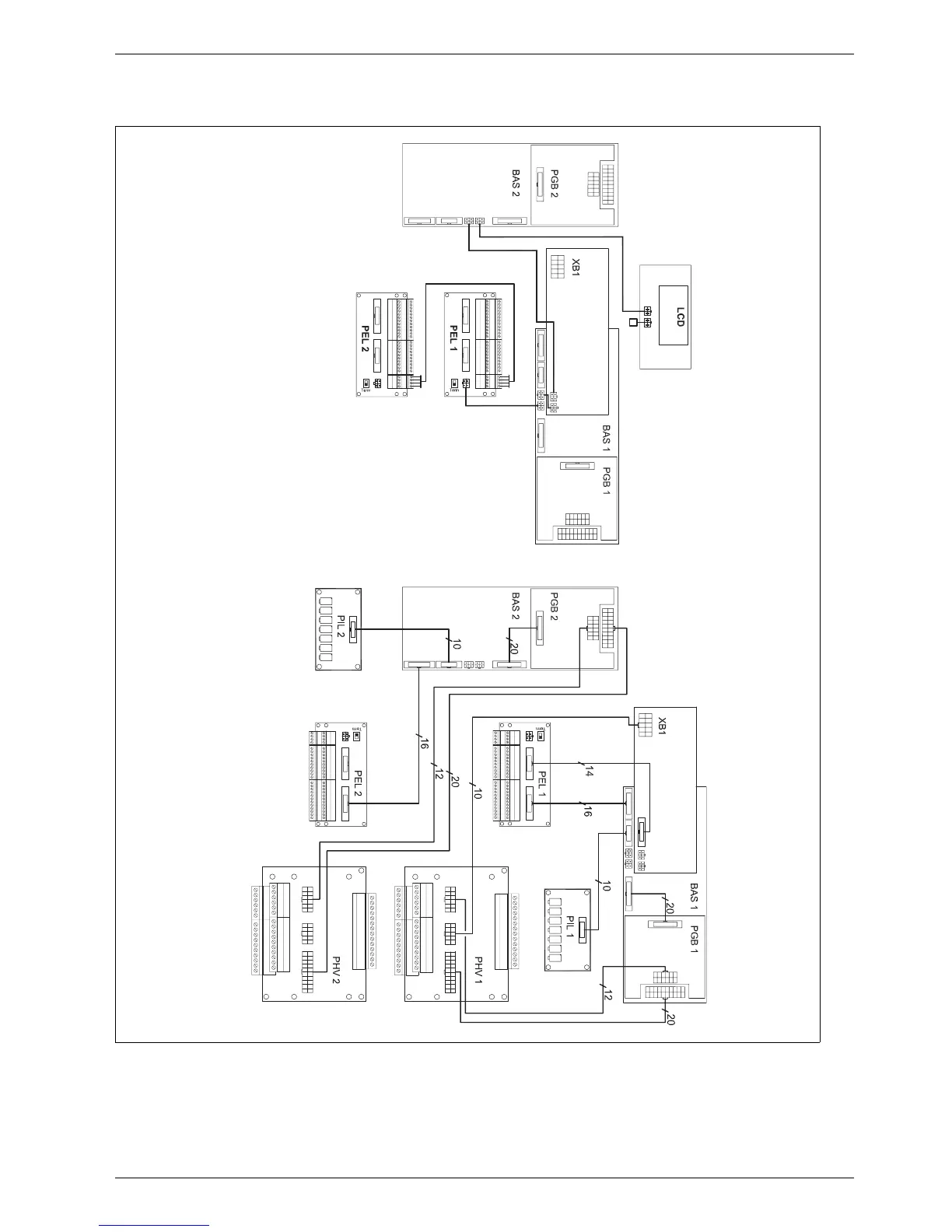

Fig. 24 Overview of circuit boards and factory-assembled cables
LCD Display board
BAS Circuit board
PGB Circuit board
XB1 Circuit board
PEL Low-voltage external terminal board
PHV Terminal board 230V
PIL Low-voltage internal terminal board
