Electrical connections

6 720 645 504 (2011/04) en

11.6.5 Wiring diagram E21, low current

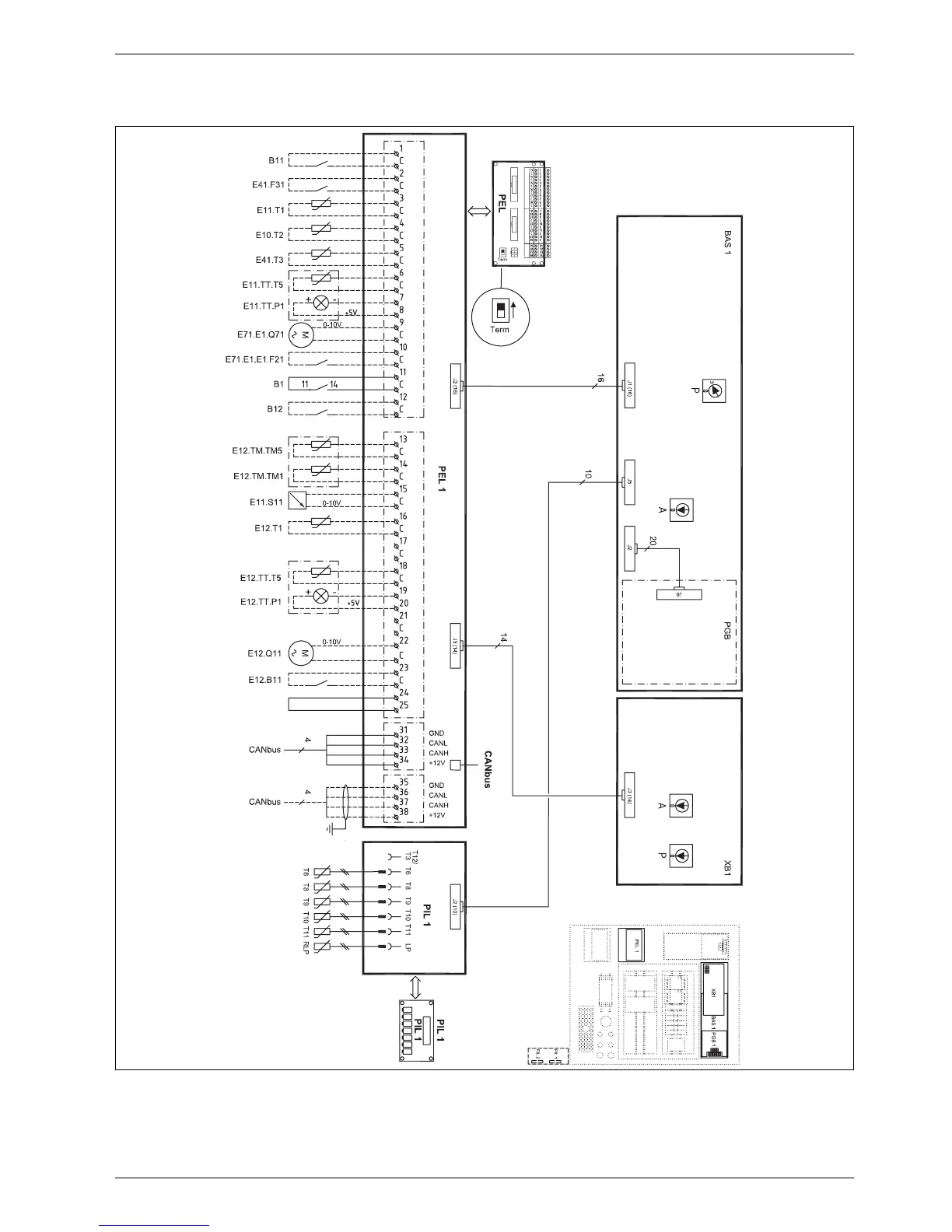

Fig. 33 Wiring diagram E21, low current

Solid line = factory connected. Dotted line = connected at installation.

6 720 616 938-18.1I
