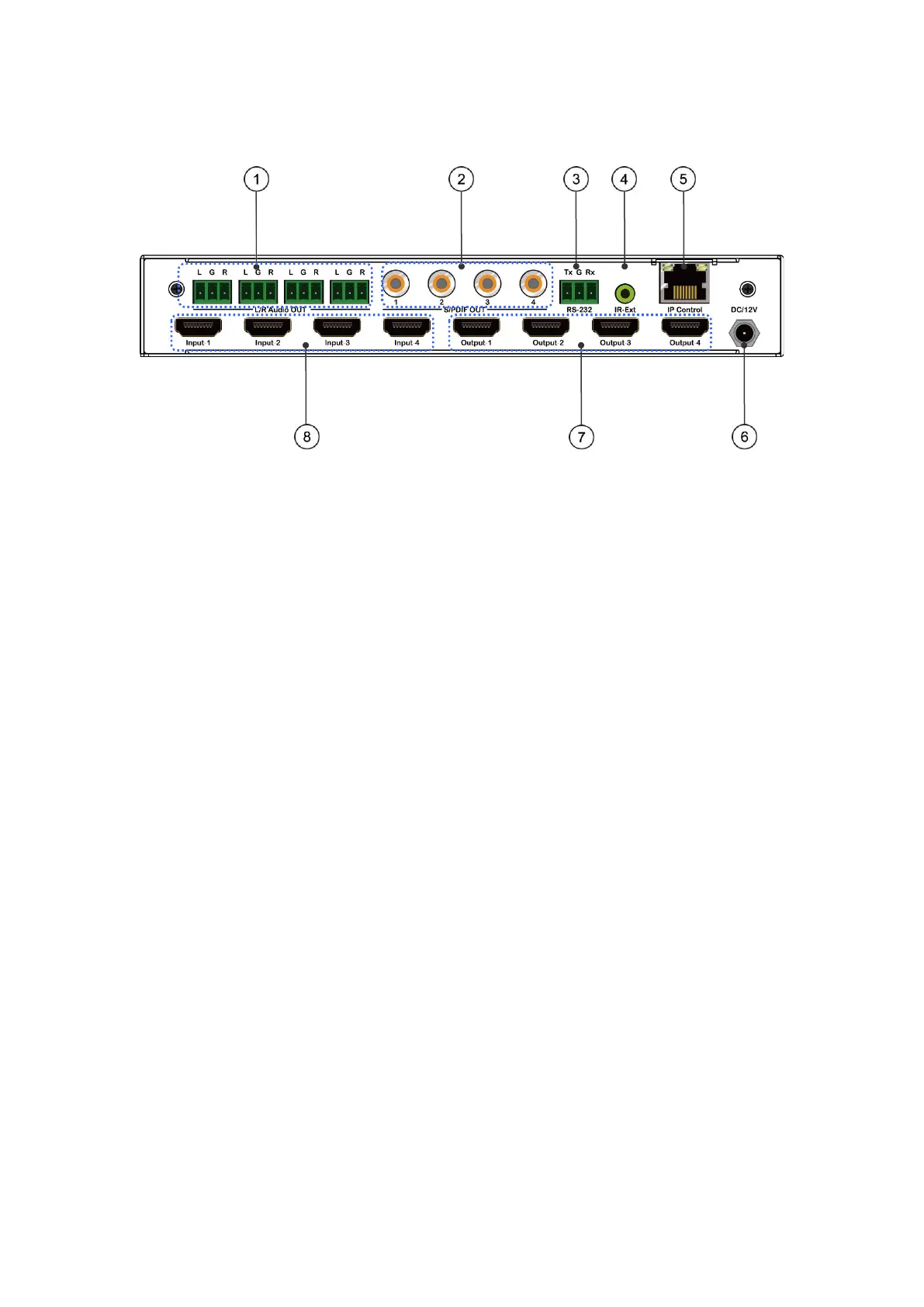

Rear Panel
① Analog Audio Out (Phoenix)
② S/PDIF Audio Out (Coaxial)
③
RS232(Phoenix)
④ IR-Ext
⑤ Ethernet Port
⑥
DC12V/2A Power Adapter Port
⑦HDMI Output Ports
⑧HDMI Input Ports
Connecting and Operating
1.
Connect source devices to input ports via HDMI cable.
2.
Connect HDMI output ports to TV or other HDMI sink devices via HDMI cable.
3.
Optional: Connect RS232 cable from PC to RS232 port.
4.
Optional: Connect an Ethernet cable from the TCP/IP port on the matrix to
a local area network.
5.
Connect 12V Power Supply to DC/12V power port.
6.
Power on the matrix, HDMI sources and displays.
To Next Page
