Jackson DISHSTAR HT-E - HT-E Control Panel, 460 V

07610-004-43-79-Q
34

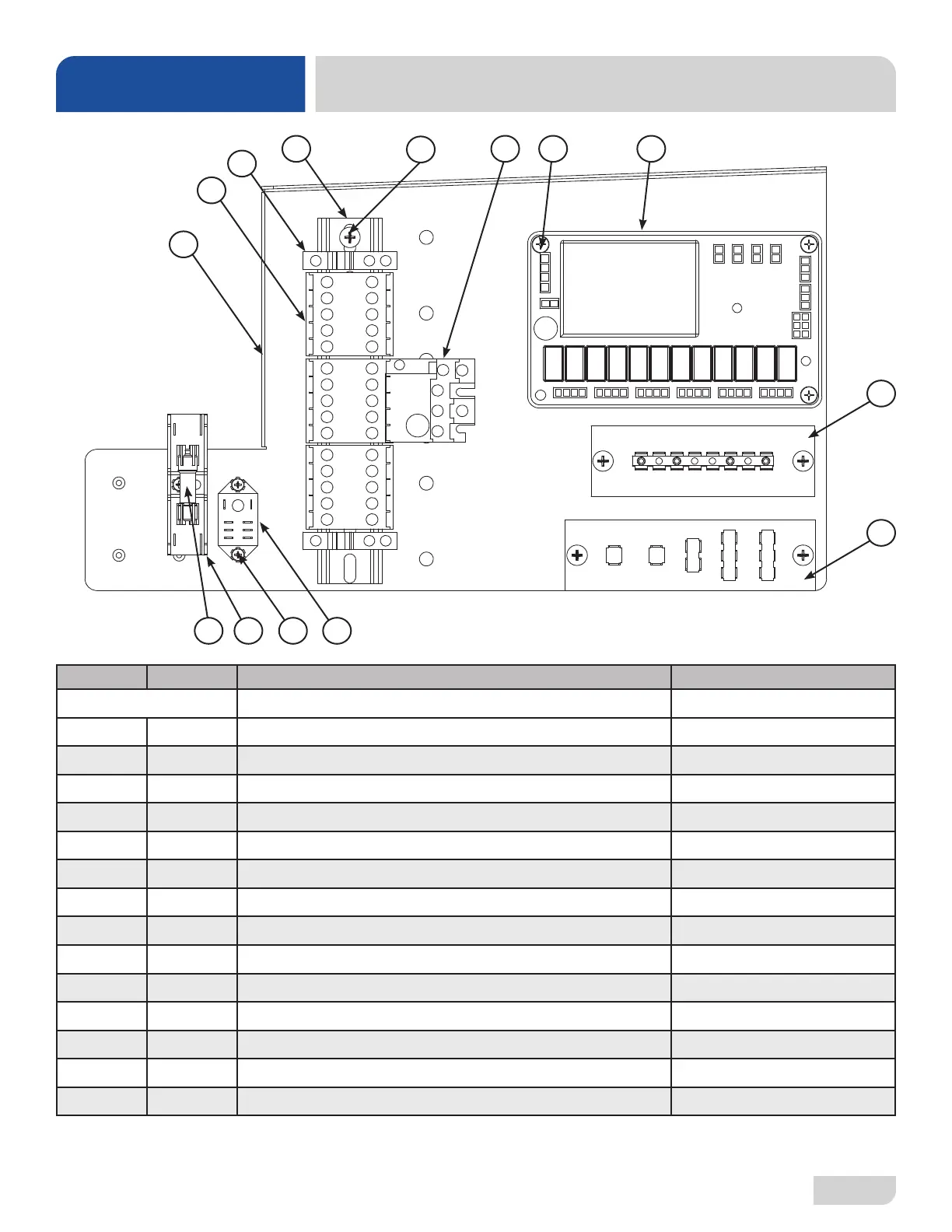

HT-E CONTROL PANEL, 460 V
PARTS
ITEM QTY DESCRIPTION PART NUMBER
Complete HT-E Electrical Panel Assembly, 460 V 05700-004-44-50
1 1 Electrical Panel 05700-004-40-63
2 3 Contactor, 460 V 05945-111-60-07
3 2 End-cap, Contactor 05940-111-60-30
4 1 Dinrail, 7 3/4" 05700-002-79-13
5 6 Screw, 10-32 x 5/8" 05305-003-02-12
6 1 Motor Overload, 1.35–2 A 05945-111-60-08
7 3 Screw, 10-32 x 1” 05305-002-19-42
8 1 I/O Module 06401-004-76-15
9 1 Terminal Board 05940-004-21-34
10 1 Terminal Board 05940-002-78-97
11 1 Relay 05945-002-47-41
12 3 Screw, 6-32 x 3/8” 05305-002-25-91
13 1 Fuse Holder 05920-011-72-89
14 1 Fuse, 1/2 A 05920-011-72-88
1
2
3
4
5
9
10
11121314
6 7 8
