Jackson DISHSTAR HT-E - HT-E-SEER Door Interlock, 208-230 V

41
07610-004-43-79-Q
HT-E-SEER DOOR INTERLOCK, 208-230 V
PARTS

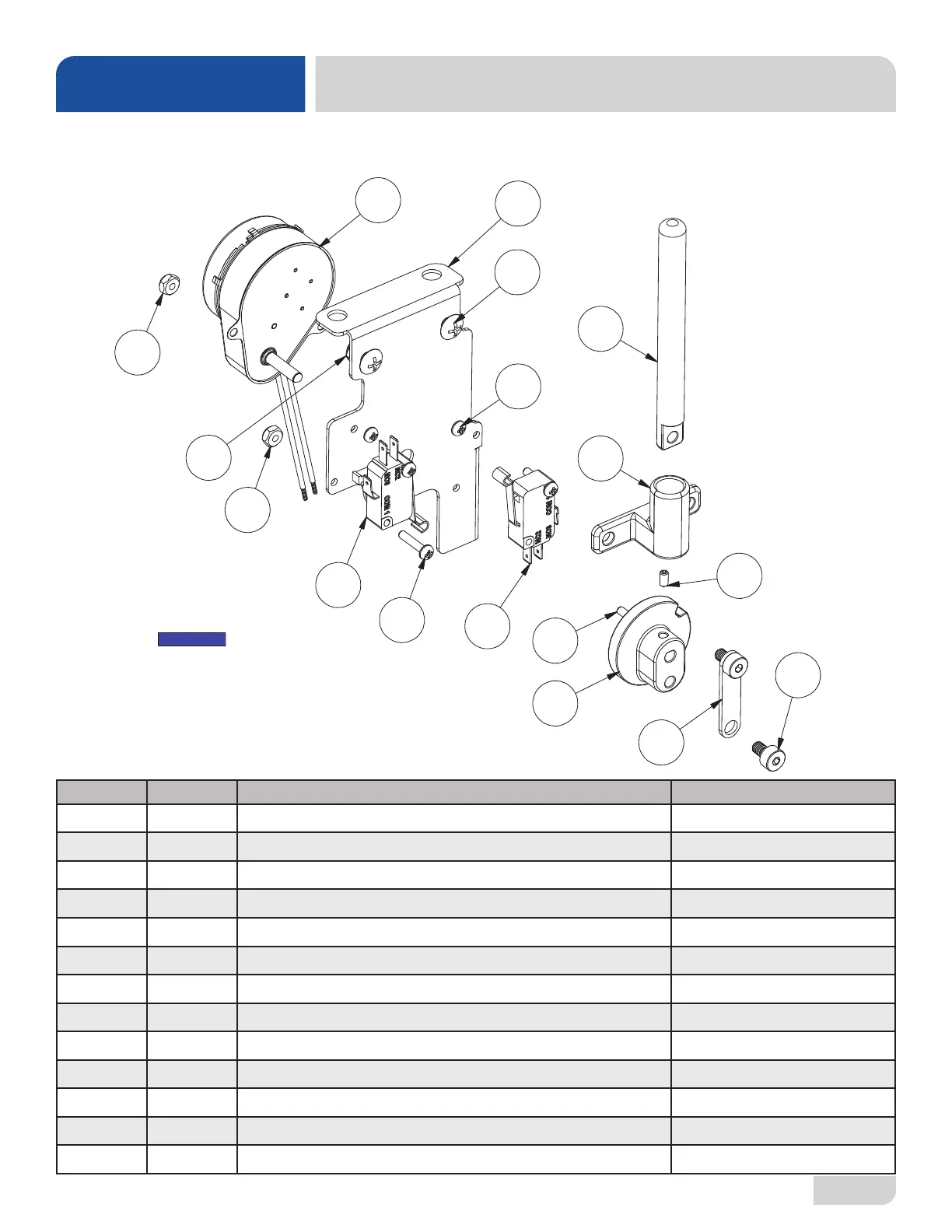

Complete Door Interlock Assembly, 208-230 V
05700-004-99-58
ITEM QTY DESCRIPTION PART NUMBER
1 6 Screw, 6-32 x 5/8" 05305-011-39-85
2 6 Locknut, 6-32 Hex with Nylon Insert 05310-373-03-00
3 1 Link, Interlock Connector 05700-004-71-37
4 1 Pin, Interlock 05700-004-71-49
5 2 Switch, Interlock 05930-004-71-36
6 1 Synchronous Gearmotor, 6 RPM, 230 V, 60 Hz 06105-004-70-04
7 1 Interlock Guide 05700-004-71-50
8 1 Interlock Cam 05700-004-71-39
9 2 Shoulder Screw, 10-32 05700-004-71-40
10 1 Bracket, Interlock 05700-004-99-63
11 2 Screw, 10-32 x 1/2" 05305-011-39-36
12 2 Locknut, 10-32 with Nylon Insert 05310-373-02-00
13 1 Set Screw, 6-32 x 1/4" 05305-004-71-42
2
2
1
5
5
11
4
7
13
3
8
1
1
9
6
10
12
208-230 V machines with serial
numbers before 22E406186 have a
dierent door interlock. Click here to
open earlier manual.
NOTICE
