Jackson DISHSTAR HT-E - HT-E-SEER Control Panel, 460 V

35
07610-004-43-79-Q

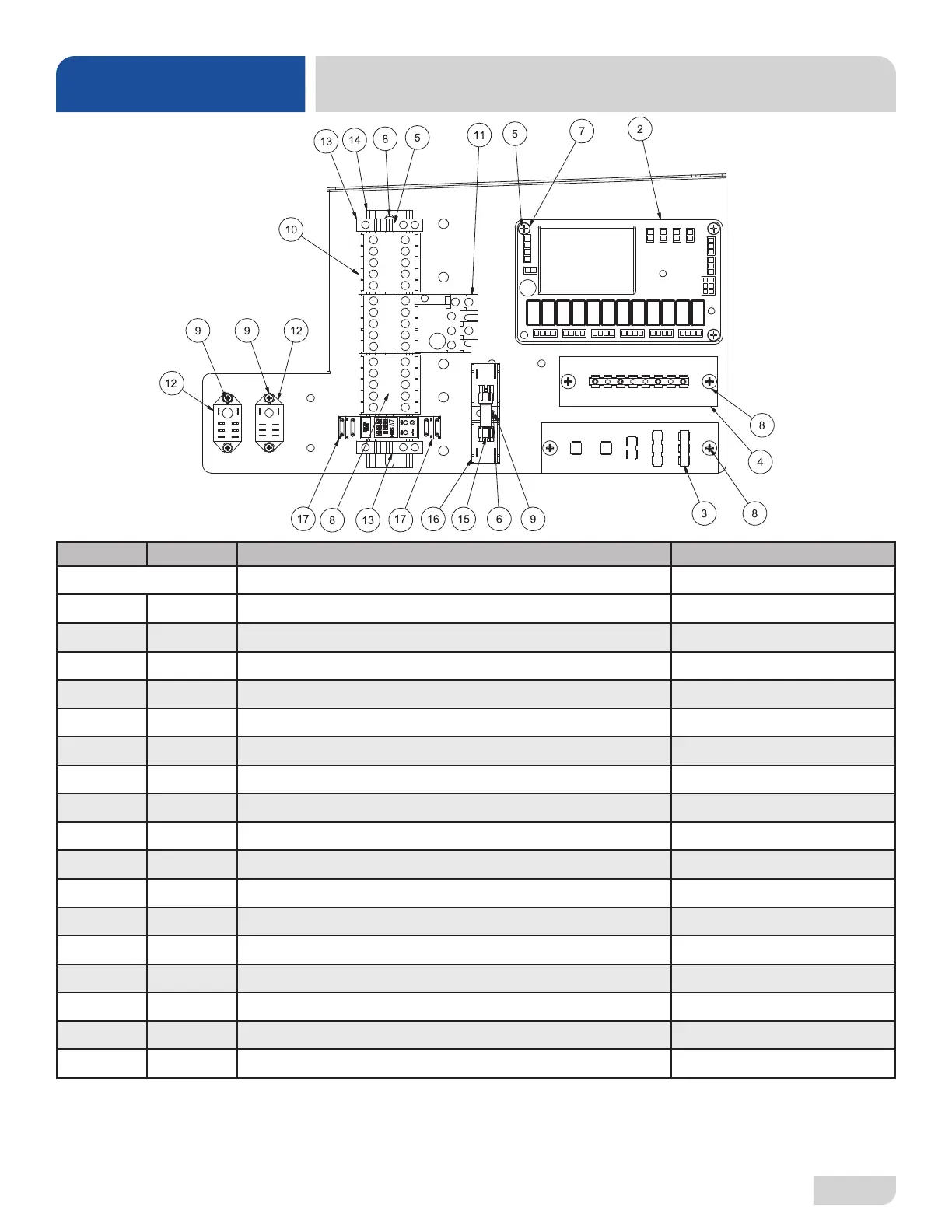

HT-E-SEER CONTROL PANEL, 460 V
PARTS
ITEM QTY DESCRIPTION PART NUMBER
Complete HT-E-SEER Electrical Panel Assembly, 460 V 05700-004-51-92
1 1 Electrical Panel 05700-004-40-63
2 1 I/O Module 06401-004-76-15
3 1 Terminal Board 05940-002-78-97
4 1 Terminal Board 05940-004-21-34
5 9 Fastener 05340-111-58-10
6 6 Nut, Plated 05340-118-04-00
7 3 Screw, 10-32 x 1” 05305-002-19-42
8 6 Screw, 10-32 x 5/8" 05305-003-02-12
9 6 Screw, 6-32 x 3/8” 05305-002-25-91
10 3 Contactor, 460 V 05945-111-60-07
11 1 Motor Overload, 1.35–2 A 05945-111-60-08
12 2 Relay 05945-002-47-41
13 2 End-cap, Contactor 05940-111-60-30
14 1 Dinrail, 7 3/4" 05700-002-79-13
15 1 Fuse, 1/2 A 05920-011-72-88
16 1 Fuse Holder 05920-011-72-89
17 1 Timer, Universal Digital 05945-004-22-78
