PARTSPARTS
45
INCOMING & OUTLET PLUMBING ASSEMBLIES (CONTINUED)
ITEM QTY DESCRIPTION PART NUMBER
1 1 Water Pressure Regulator, 3/4" NPT 06685-011-58-22
2 1 Valve, Ball, 1/4" NPT 04810-011-72-67
3 1 Gauge, Pressure, 0-100 PSI 06685-111-88-34
4 2 Nipple, Close 3/4" NPT 04730-207-34-00
5 1 Tee, Brass, 3/4" NPT x 3/4" NPT x 1/4" NPT 04730-211-04-00
6 1 Valve, Solenoid, 3/4" NPT 04810-100-03-18
7 1 Nipple, Brass, 3/4" NPT x 2" Long 04730-207-46-00
8 1 Elbow, 3/4" NPT, Brass, Street 04730-206-04-34
9 3 Union, 3/4" NPT, Brass with O-Ring 05700-002-63-79
10 4 Adapter, 3/4" Male 04730-401-11-01
11 1 Tube, Copper, 3/4" x 48" Long 05700-011-87-89
12 2 Elbow, 3/4" 90°, #707 Copper 04730-406-16-01
13 3 Adapter, 3/4", 604-2 04730-401-10-01
14 1 Tube, Copper, 3/4" x 3 3/4" Long 05700-011-58-28
15 1 Vacuum Breaker, 3/4" NPT 04820-002-53-77
16 1 Tube, Copper, 3/4" x 44 3/8" Long 05700-002-25-05
17 1 Elbow, 3/4" 90° Copper to FSPS Brass 04730-406-41-01
18 1 Elbow, 3/4" 90° Copper to Copper Street 04730-406-40-01
2 Double Pipe Clamp (not shown) 05700-002-23-89
1 Bracket, Incoming Plumbing Support 05700-021-34-02
When servicing plumbing components, take care not to damage the threads of each
individual item. Damaged threads can cause leaks and loss of pressure, which could
adversely affect the performance of the dishmachine. It is strongly recommended that
teon thread tape be applied conservatively to threads when joining components together.
It is not advised to use thread sealing compounds, or "pipe dope," as they can be ejected
from the threads during the tightening process and become lodged in key components.

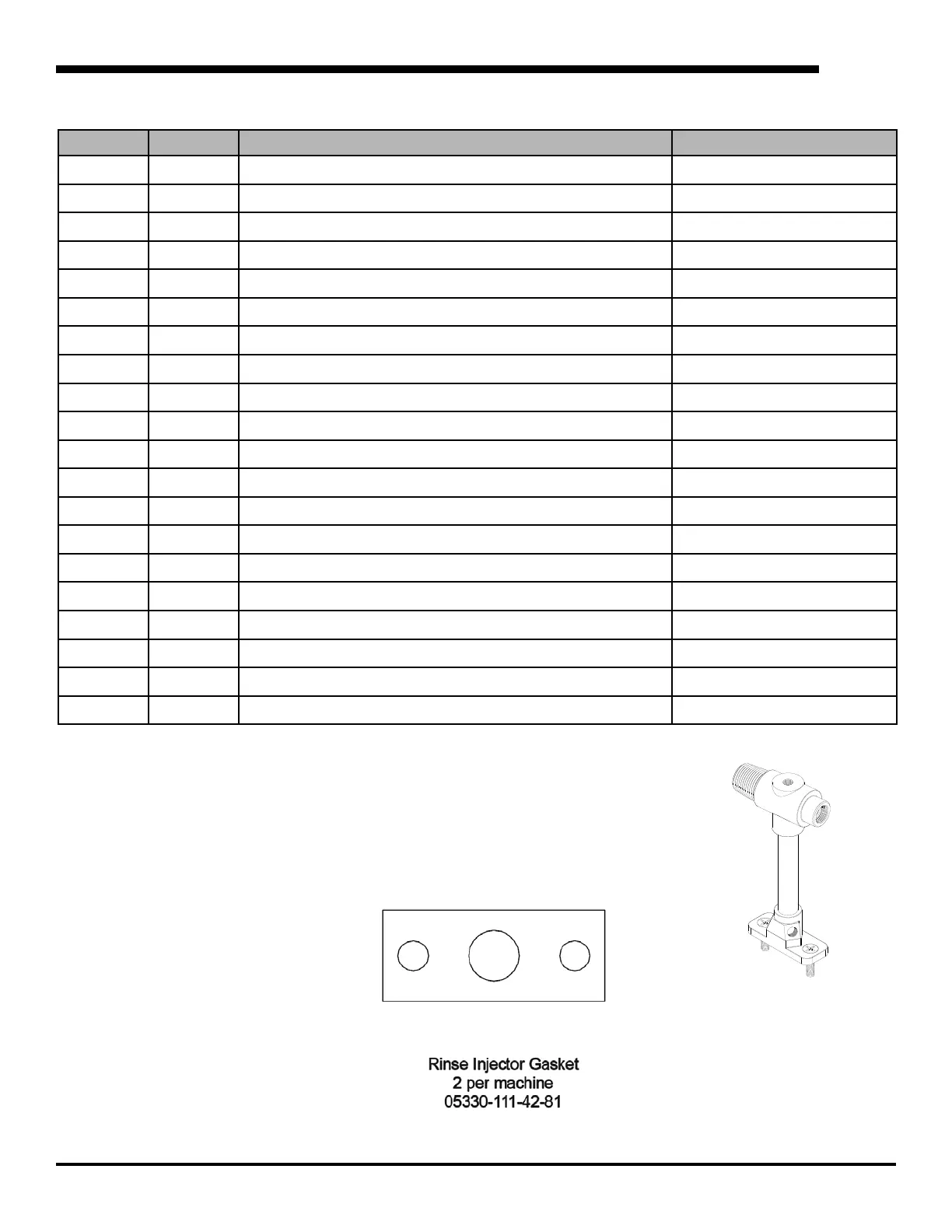

Rinse Injector Weldment
1 per machine
05700-021-47-65
Plug, 1/8” NPT, Brass
3 per Rinse Injector
04730-209-07-37
Rinse Injector Gasket
2 per machine
05330-111-42-81
To Next Page
