Jackson TempStar Series Installation, Operation & Service Manual

PARTS

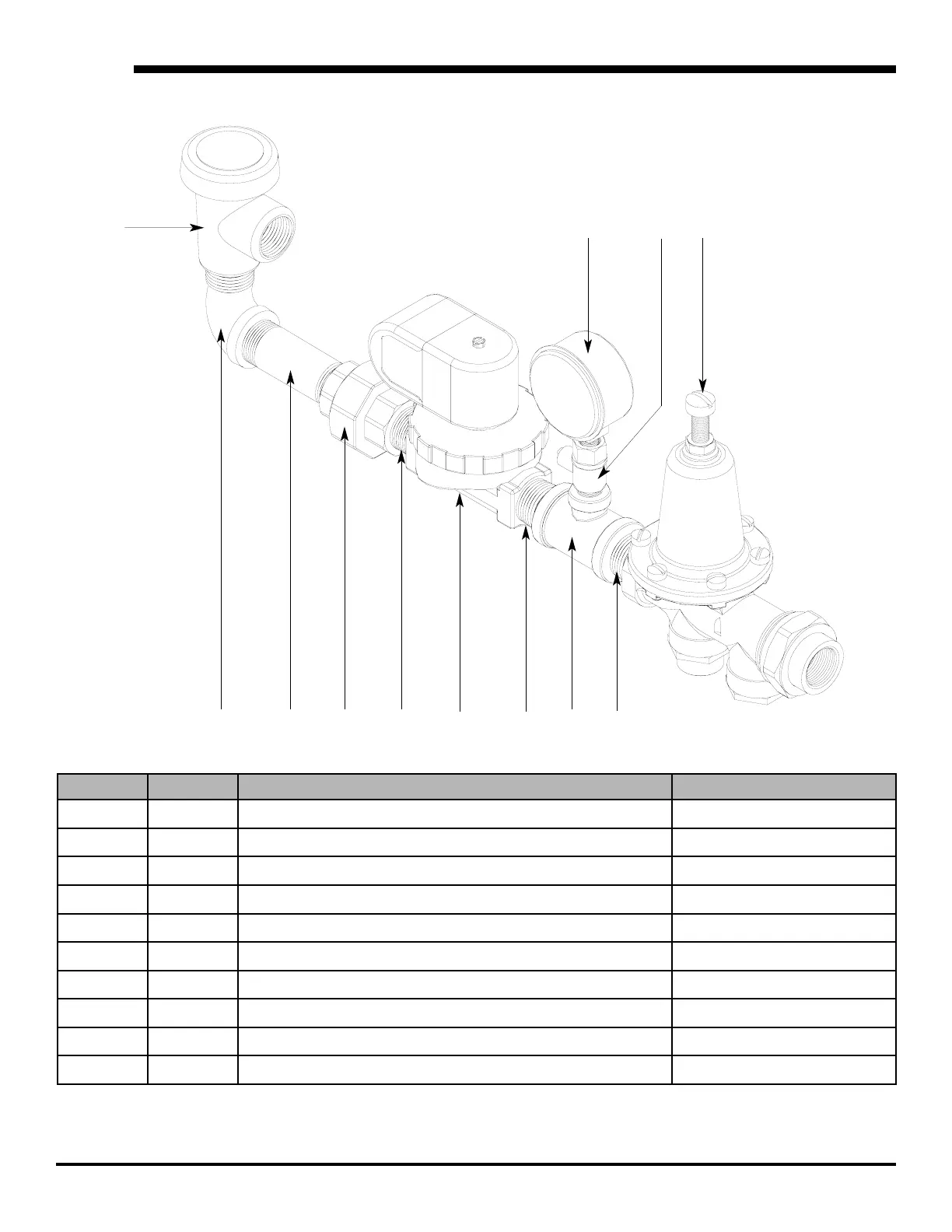

INCOMING PLUMBING (TEMPSTAR HH NB)
2
3
4 5 6
7
5
5
81 9
10
ITEM QTY DESCRIPTION PART NUMBER
1 1 Vacuum Breaker, 3/4" NPT 04820-002-53-77
2 1 Elbow, Brass, Street, 3/4" NPT 04730-206-04-34
3 1 Nipple, Brass, 3/4" NPT x 3" Long 04730-011-38-29
4 1 Union, 3/4" NPT, Brass with O-Ring 05700-002-63-79
5 3 Nipple, Close, Brass, 3/4" NPT 04730-207-34-00
6 1 Valve, Solenoid, 3/4" NPT 04810-100-03-18
7 1 Tee, Brass, 3/4" NPT x 3/4" NPT x 1/4" NPT 04730-211-04-00
8 1 Pressure Gauge, 0-100 PSI 06685-111-59-66
9 1 Valve, Ball, Bronze, 1/4" NPT 04810-011-72-67
10 1 Water Pressure Regulator 06685-011-58-22
46

Jackson TempStar Series Specifications

General

Model	TempStar Series
Voltage	208-240V
Number of Wash Cycles	1
Color	Stainless Steel
Category	Dishwasher
Voltage Options	208V, 240V
Capacity	60-80 racks per hour
Water Consumption per Cycle	0.5-1.0 gallons
Water Consumption per Rack	0.84 gallons
