en-38
6 CONTROLS

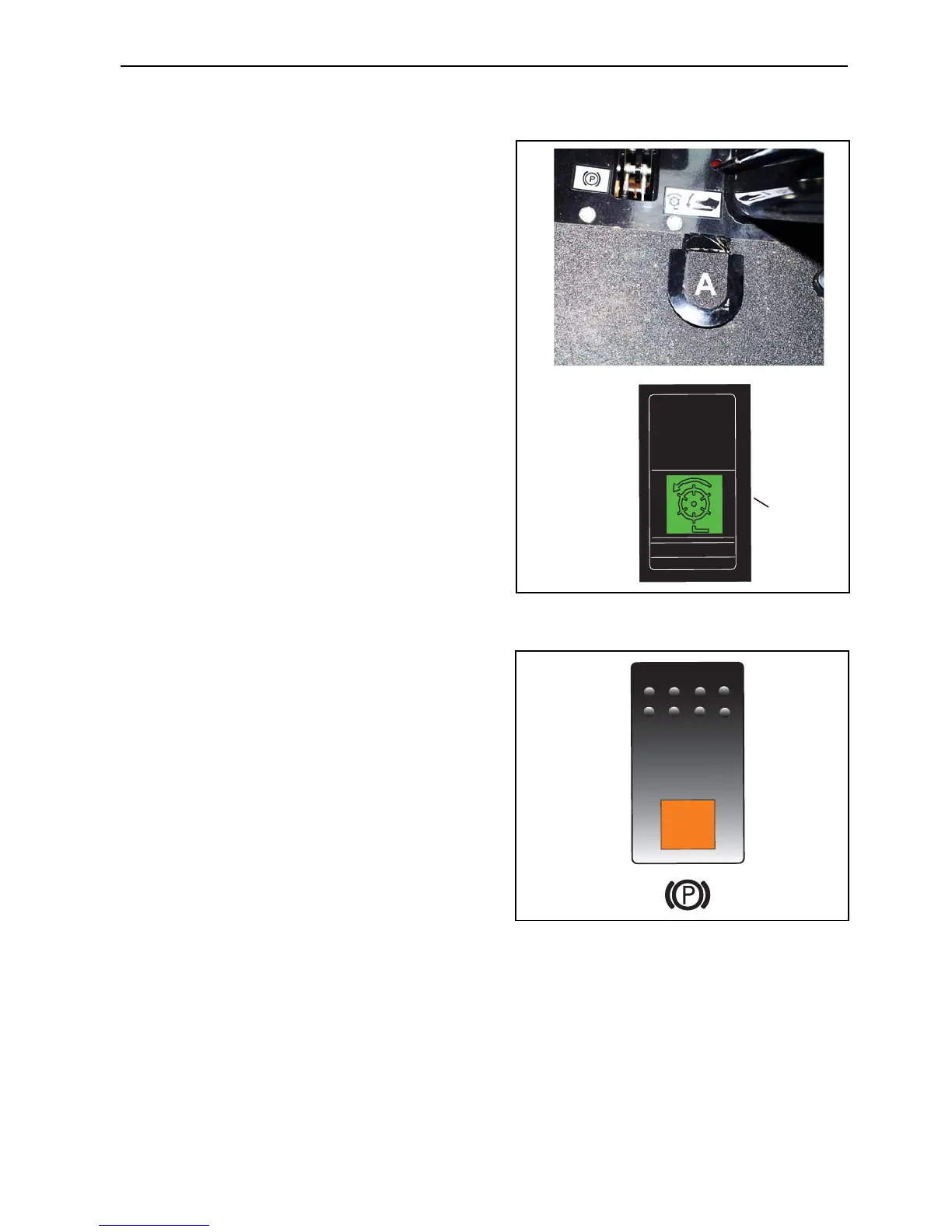

6.2.K CUTTING UNIT SWITCHES ________________________________________
When you cut, make sure that the speed limiter is set to
the mow position. Press the bottom of the rocker switch
(G) to activate the joystick. Lower the cut reels and press
the foot switch (A) to start the cut reel rotation. Push the
top of rocker switch to stop the cut reel rotation and
deactivate the joystick. When the cut units are lifted, the
rotation of the reels automatically stops.
6.2.L PARKING BRAKE SWITCH SERIES JN, KD, JU, KE____________________
When the engine is running the Parking brake is applied by
depressing the switch. The Parking Brake is applied
automatically when the engine is stopped.
If the operator leaves the seat for 5 seconds the cutting units will
stop and if the transmission pedal is operated the engine will
stop.
To release the parking brake slide the orange button and
depress the rocker switch.
