en-80

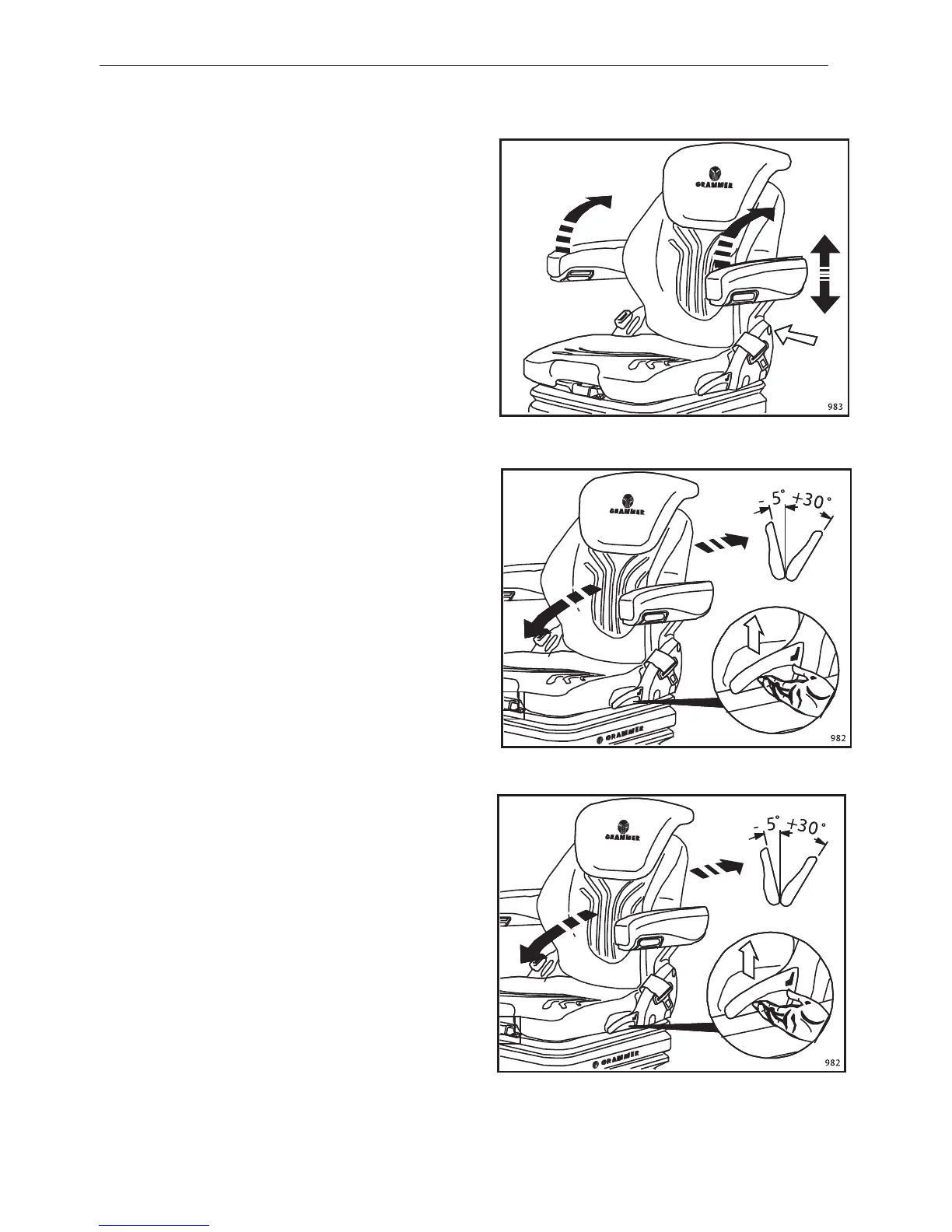

9 ADJUSTMENTS
9.11.6 ARMRESTS * ** ____________________________________________________
The armrests can fold away and adjustments can be made
to the height of each armrest.
To adjust the armrests for height, separate the round cap
(see the arrow) from the cover. Loosen the hexagon nut
(size 13 mm) below the cover. Adjust the armrests to the
correct position (5-steps) and tighten the nut again.
Replace the cap above the nut.
* If Installed
** Optional Accessory
9.11.7 ARMREST ADJUSTMENT *___________________________________________
To change the angle of the armrests, turn the adjustment
knob.
The front part of the armrest is lifted when you turn the knob
to the outside (+).
The armrest is lowered when you turn the knob to inside (-).
* If Installed
** Optional Accessory
9.11.8 BACKREST ADJUSTMENT
To loosen the notches of the backrest adjustment, move the
locking lever to the upper position.
After the adjustment, the locking lever must lock into the
correct position. The backrest will not move into another
position if the lever has locked correctly.
For the best ergonomic use, adjust the backrest within the
range of –5 to +30 degrees (15 steps of 2.5 degrees each).
