en-40
6 CONTROLS

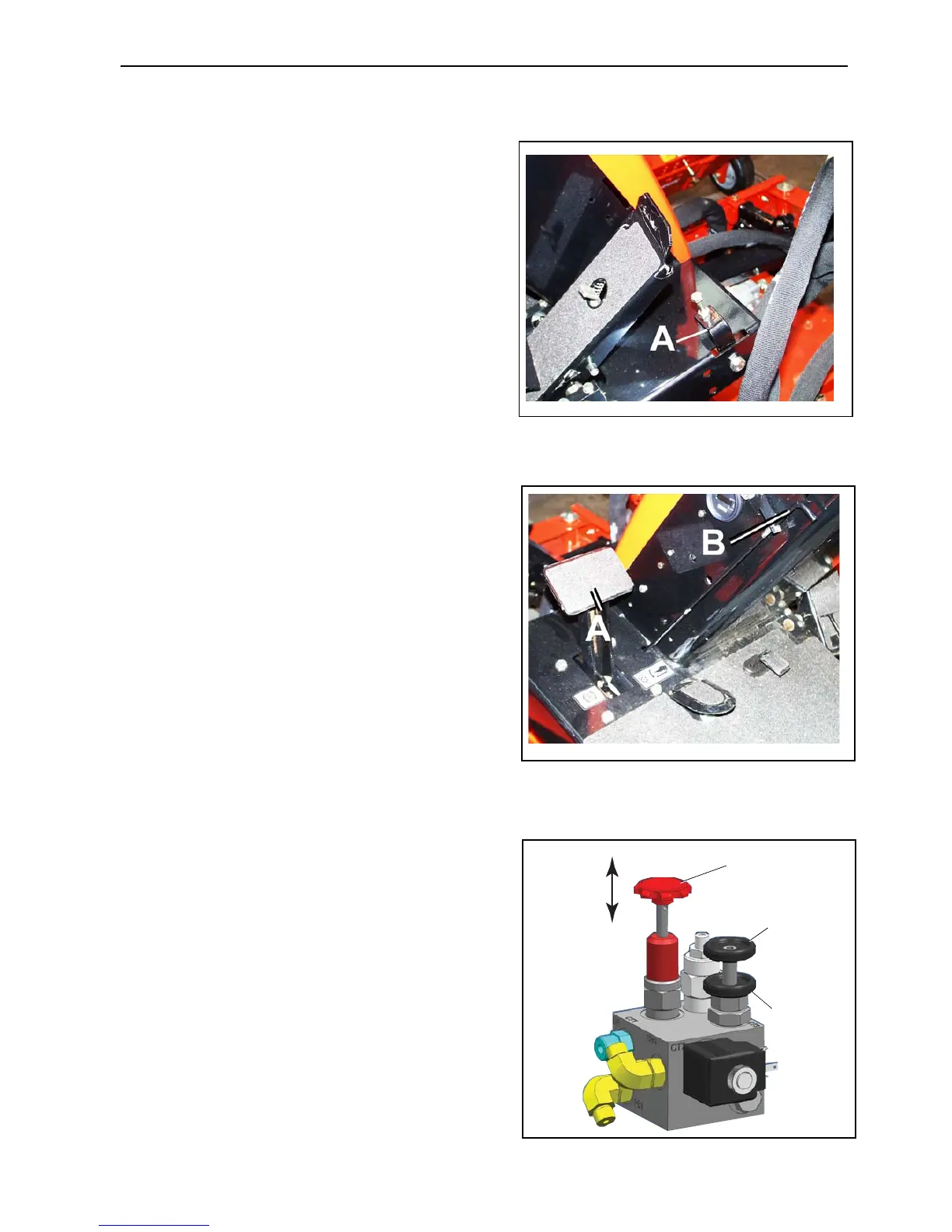

6.5 SPEED LIMITER ___________________________________________________
To operate the speed limiter (A), rotate the speed limiter
button to a position under the traction foot pedal. When in
position under the traction pedal, the machine can not
move faster than the speed necessary to cut the grass.
When the pedal is moved into a position away from the
foot pedal, the machine can move at road speed.
6.6 PARKING BRAKE (MECHANICAL) SERIES JZ, JN, JP____________________
To apply the parking brake, push the pedal (A) forward
until the brake locks. To release the parking brake, push
the pedal forward and pull the lever (B) toward the driver.
Later 305/405 - fitted with POCLAIN front wheel motors-
have a Park Brake Switch, 4WD in Reverse Switch and
an Over Temp Alarm Switch.
6.7 PARKING BRAKE RELEASE VALVE SERIES JN, KD, JU, KE ______________
The Parking Brake Release Valve is situated under
the seat plate, on the right hand side. It is used to
release the parking brake when the engine is not
running
The Parking brake can be released by rotating the
handwheel (A) fully clockwise after releasing lock
wheel (B) and using the hand pump (C) to create
sufficient pressure to release the brakes (50 to 60
strokes should give 90seconds of brake release).
When complete rotate handwheel (A)
counterclockwise fully and lock using handwheel
(B).
Releasing the brakes in this way must only be
used to recover the vehicle a short distance.
C
A
B
