en-72
9 ADJUSTMENTS
9.1 SPEED LIMITER____________________________________________________
The transport and cutting speeds are factory set. You must not change these settings.
9.2 REAR WHEEL TOE-IN ______________________________________________

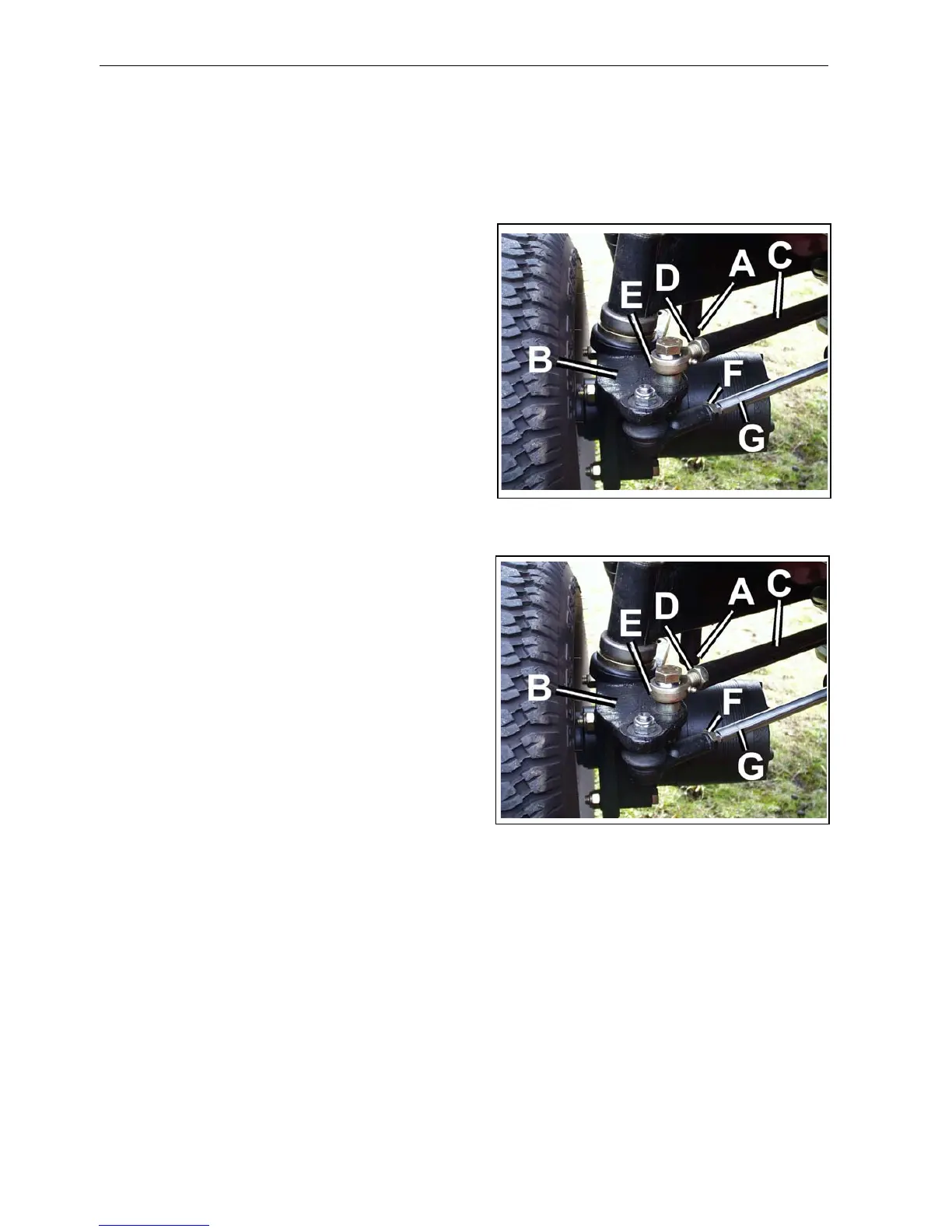

The rear wheels must toe-in 3.2mm (1/8") from the front to
behind the wheel. (Fig.18)
1. Loosen the locknuts D at rose joints inside each of
the rear wheels.
2. For each wheel, rotate the tie rod C until the toe-in
is correct.
3. Tighten the locknuts D.
9.3 STEERING SHAFT _________________________________________________
The casting B must touch the pin A on both sides (Fig.18).
1. Loosen the nut F.
2. Confirm the steering balance when you rotate the
steering shaft G in its cylinder. Make sure that you
get the complete steering movement from right and
left.
3. Tighten the nut F.
