Jacto ARBUS 400 - Nozzles Holders

4-45
4
OPERATION AND ADJUSTMENTS

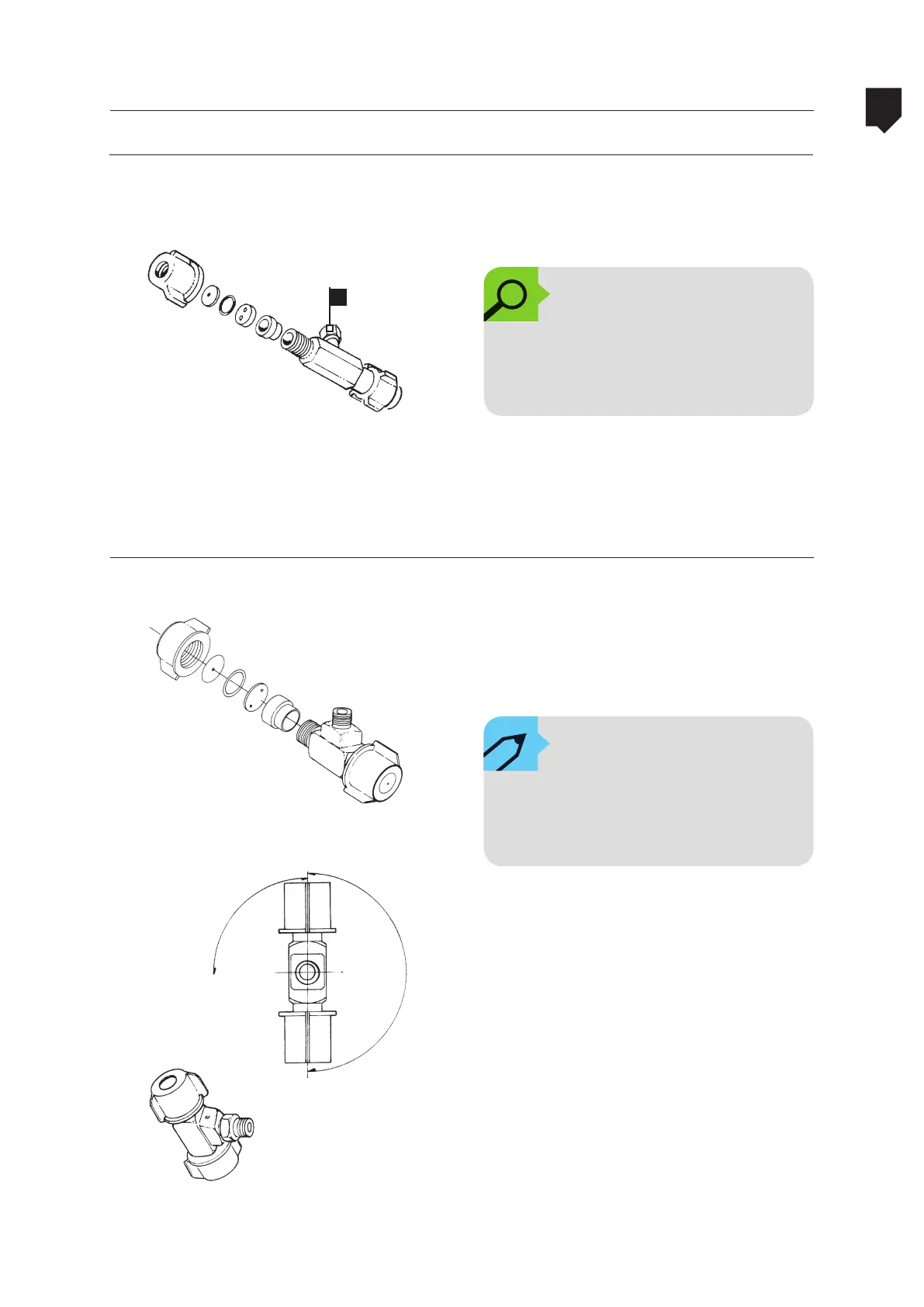

ARBUS 400 Nozzles holders
Nozzle holder with valve
• The nozzle holders with valve can be ad-
justed to desired angle and can be shut
off individually.
Directing the nozzle
• Loosen the nut (1) and set the desired
nozzle at the mark (A) existing on the
nozzle body.
Double nozzle (Optional)
Changing the spray volume:
• With a simple 180º turn of the nozzle
holder it is possible to turn off one nozzle
and turn on the other.
Shutting the flow:
• Just give the nozzle holder a 90º turn in
relation to the mark (A) and the flow will
be turned off.
180
0
90
0
Double nozzle holder
OBSERVATION:
To adjust the nozzle, loosen the
nut (1), set it in the desired posi-
tion and retighten the nut.
NOTE:
This mark indicates the spray
direction. So the nozzle at this
mark is turned on.
1
