Jacto ARBUS 400 - Nozzle Holder

5-83
5
MAINTENANCE
ARBUS 400
Nozzle holder
• Clean the nozzle holders daily or when
necessary.

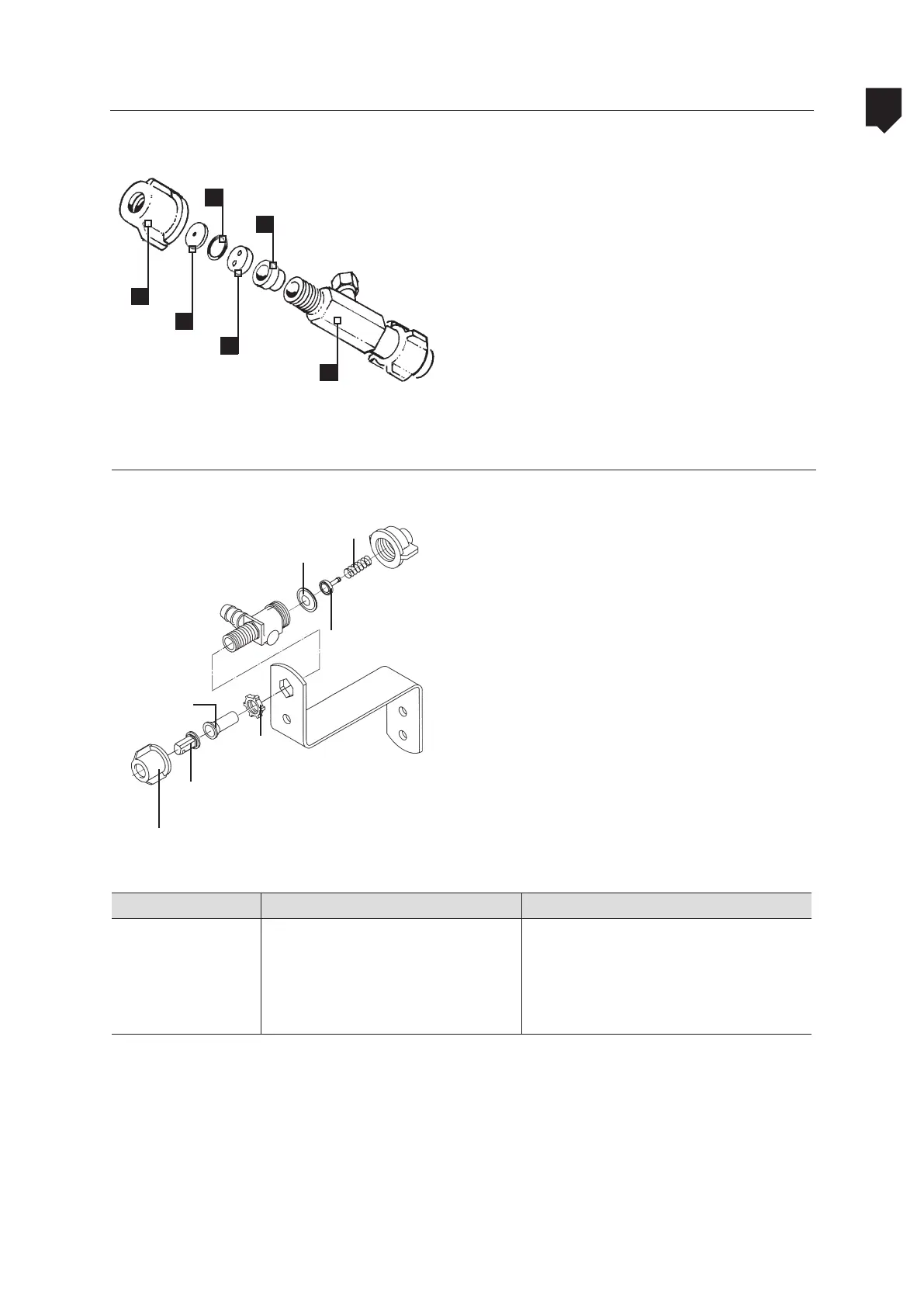

• The nozzle holders are assembled accord-
ing to the illustrations beside: cap (G), tip
(H), ring (I), coil (J), seat (K) and nozzle
body (L).
Nozzle holders with valve
G
H
J
L
I
K
• Clean the nozzles and the tips daily or
whenever necessary.
nozzle cap
def lector noz zle
filtering
element
locking nut
diaphragm
spring
piston
PH kit Spray nozzle
Problem Causes Corrections
Valve does not seal
a - Nut no.1 lacks tightening.
b - Impurities in the diaphragm
c - Diaphragm is ruptured.
d - Diaphragm rupture and
later product deposit.
a - Tighten nut no. 1.
b - Remove and clean the diaphragm.
c - Replace the diaphragm.
d - Replace the diaphragm and clean
the piston assembly.
