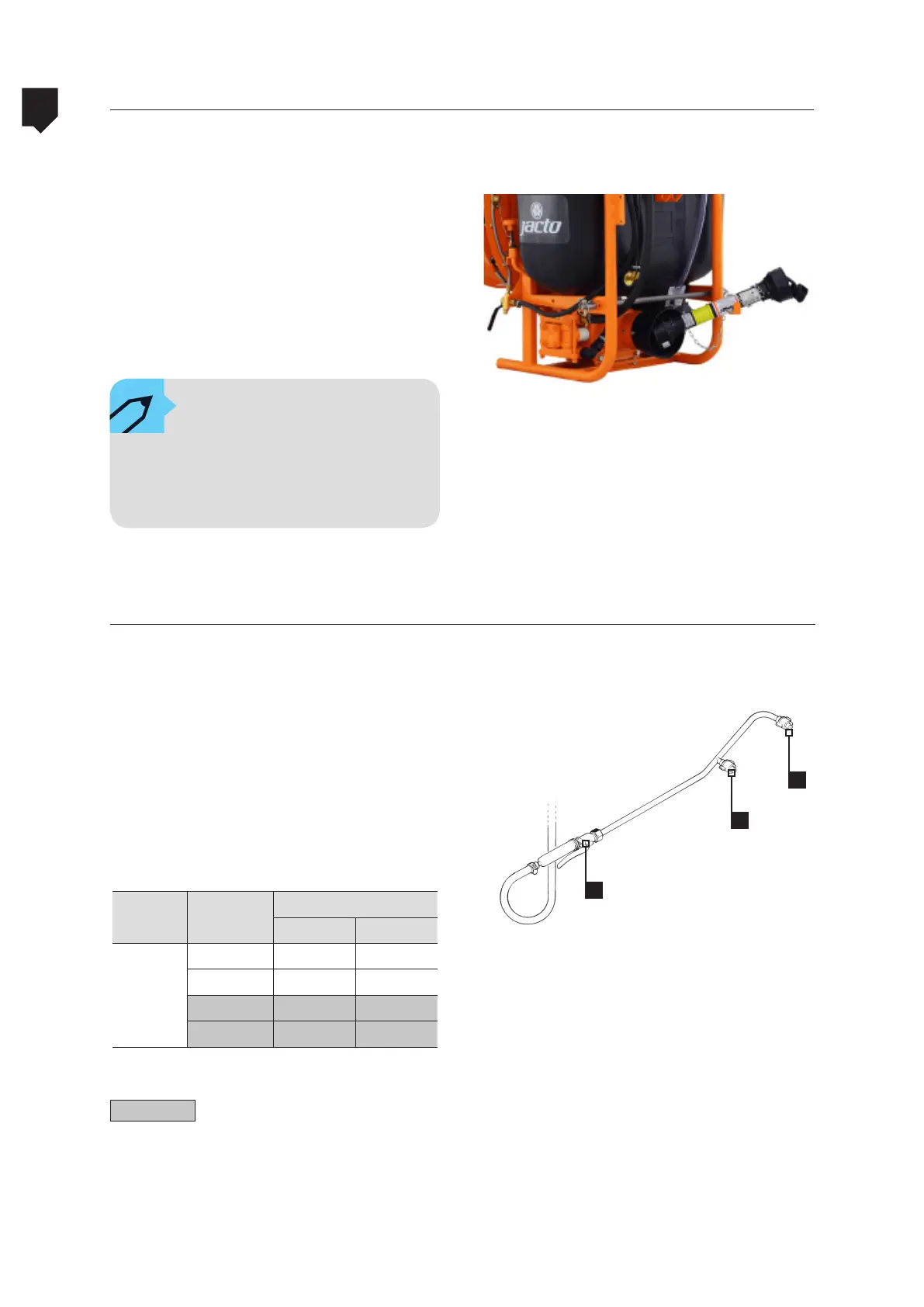

4-46
4
OPERATION AND ADJUSTMENTS
ARBUS 400
• The machine PTO shaft is assembled
with a protection to increase the safety
of the operator.
• This protection is made of a series of
plastic components that envelop the PTO
shaft and avoid contact with the opera-
tor and its clothing, decreasing the risk of
accidents. Also avoiding damages o the
harvests that can be caused by tangling.
PTO Shaft
• This is an accessory for spot spraying,
as well as for applications to difficult of
access places.
• Possui dois bicos (A) tipo cone de cerâmi-
ca (JA-2) e registro (B) para abertura e fe-
chamento da aplicação, evitando assim
desperdícios de produtos químicos.
Spray lance (Optional)
Spray lance LP-1130
Pressureband not recommened.
NOTE:
For instruction in detail, refer
to the section MAINTENANCE -
PTO SHAFT.
B
A
A
Table 14: Spray lance
Nozzle
Pressure
psi
Flow rate (L/min)
Nozzle Lance
JA-2
150 1.00 2.00
200 1.16 2.32
300 1.42 2.84
400 1.64 3.28
