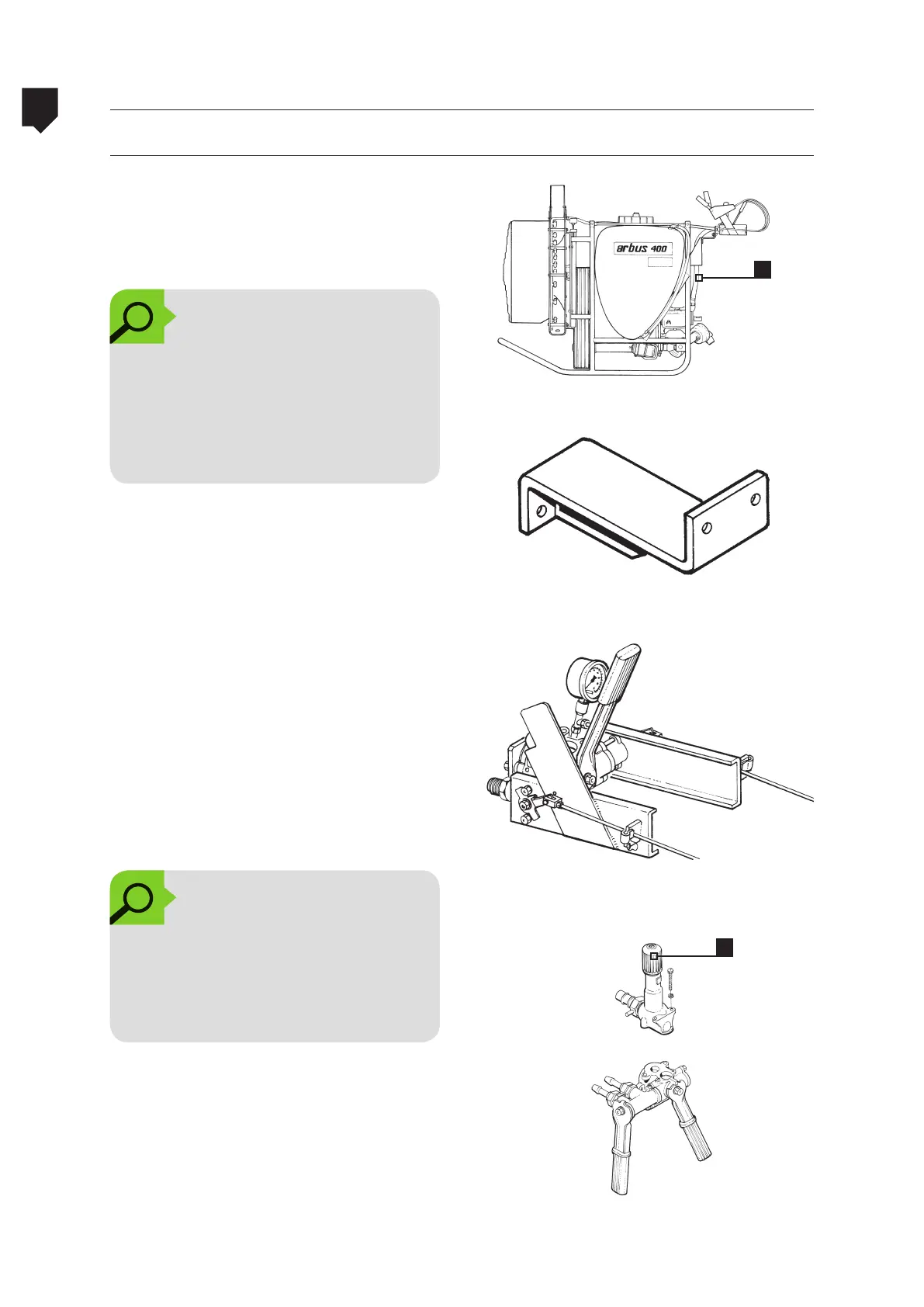

VDC cable control kit (Optional)
• Remove the control valve from the spray-
er. To remove it, loosen the two screws
and disconnect the hoses (A).
Assembling the control
• Mount the cable control valve bracket to
the control valve support of the sprayer
as shown in the figure below.
• Install the cable control valve on the
bracket.
• Remove the cylinder assembly from the
control valve removed from the sprayer (A).
• Mount the cylinder to the cable control
valve. Take care not do damage the pack-
ing rings.
• Connect the hoses again.
Cabel control valve bracket
VDC kit
detalhe A
OBSERVATION:
When disconnecting the hoses,
note their position so as to con-
nect them again correctly when
installing the VDC CABLE CON-
TROL KIT.
OBSERVATION:
The hose (pressure hose) that con-
nects the control valve to the pump
must be replaced by the hose of
the VDC CABLE CONTROL KIT.
