4.7 Robot Connection
The cable from the robot must be plugged into the connector at the bottom of the control box, see
illustration below. Ensure that the connector is properly locked before turning on the robot. Disconnecting the
robot cable may only be done when the robot power is turned off.

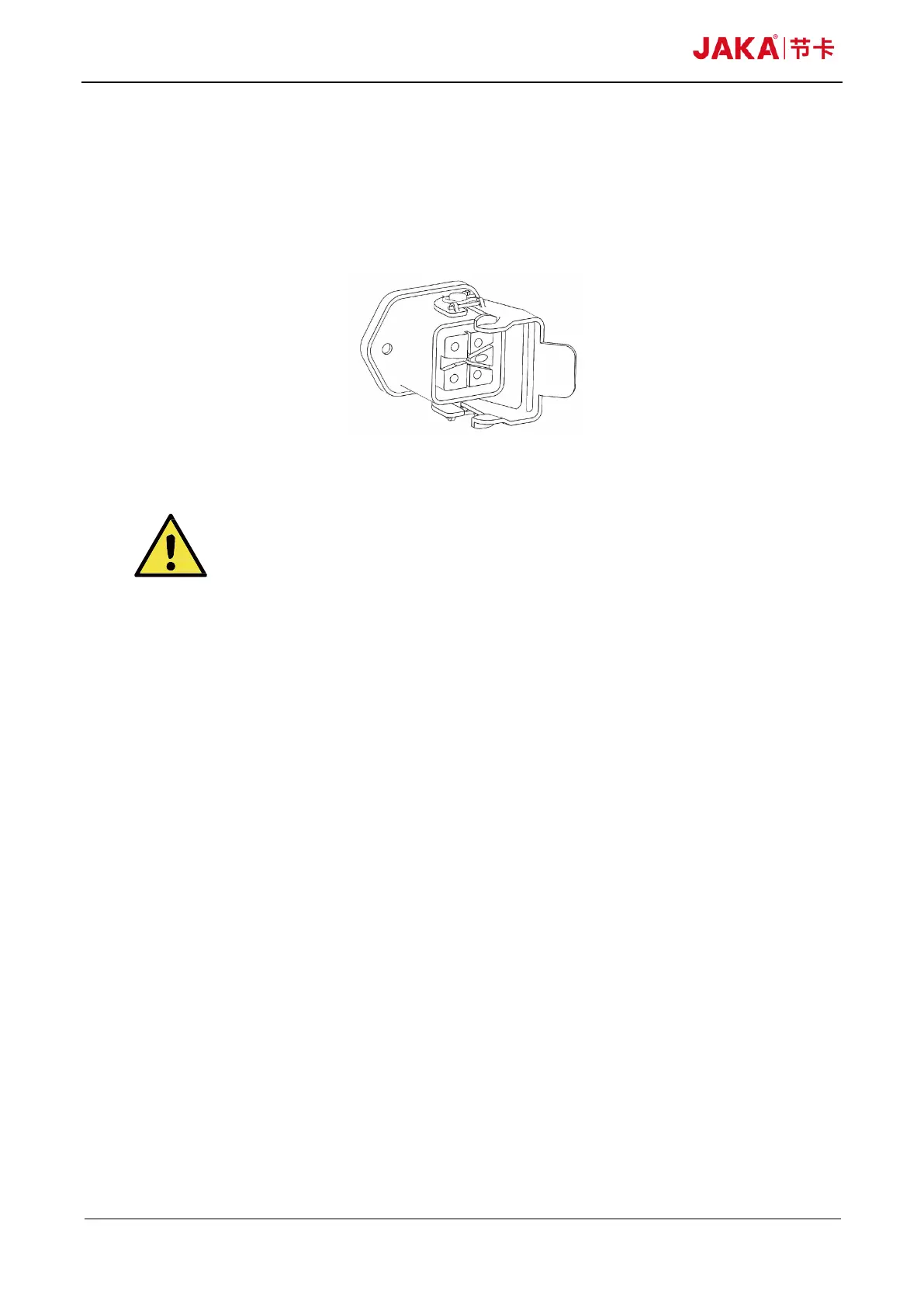

Fig 4-5
CAUTIONS:
1. Do not disconnect the robot cable when the robot is turned on.
2. Do not extend or modify the original cable.
