5.3 Plumbing Connections
The heater has a standard 2 inch water header and coupling
design. With this feature, only nominal two inch PVC
or CPVC may be connected to the heater. However, by
installing the appropriate pipe adapters and two (2) short
pieces of two-inch plastic pipe (supplied by the installer),
any size existing pipe may be tted to the heater.
Optional Water Inlet Piping
The water inlet can be piped in one of two possible
congurations. The heater comes with a Zodiac
®
Sweep Elbow for increased hydraulic performance and
efciency. The sweep elbow also provides the advantage
of its exclusive interface with the Zodiac AquaLink
®
RS
temperature sensor. The sweep elbow may be installed in
the top inlet connection, and the cap and plug with O-ring
installed to close off the unused side port (see Figure 15).
This conguration may be preferred for Versa Plumb
®
piping to mating components
Figure 15. Top Inlet Piping Using the Versa Plumb
Sweep Elbow
SWEEP
ELBOW
(provided)
SWEEP
ELBOW
NOTE: Head Loss
Data for Models 200
and 330:
TBD

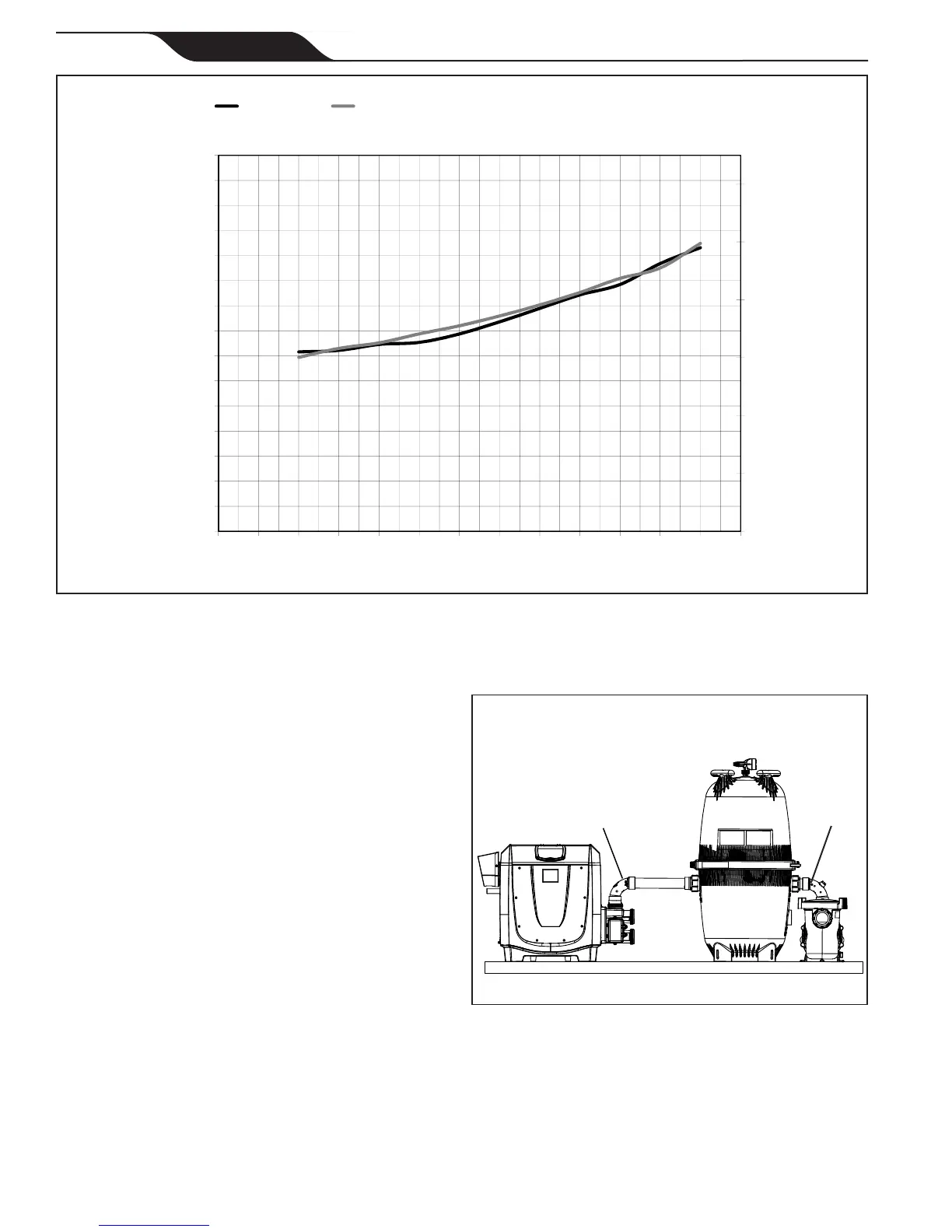

Figure 14. Head Loss Chart
10
12
20
22
24
26
28
30
Design Pressure Drop (psi)
Design Head Loss
Head Loss - JXi Heaters
 
0
2
4
6
8
0
2
4
6
8
10
12
14
16
18
             
Design Pressure Drop (psi)
Design Head Loss
(ft head)
Flow Rate (gpm)
10
12
20
22
24
26
28
30
Design Pressure Drop (psi)
Design Head Loss
Head Loss - JXi Heaters
 
0
2
4
6
8
0
2
4
6
8
10
12
14
16
18
             
Design Pressure Drop (psi)
Design Head Loss
(ft head)
Flow Rate (gpm)
