Page 43
ENGLISH
Jandy
®
Pro Series, JXi
™
Gas-Fired Pool & Spa Heater
|
Installation & Operation Manual

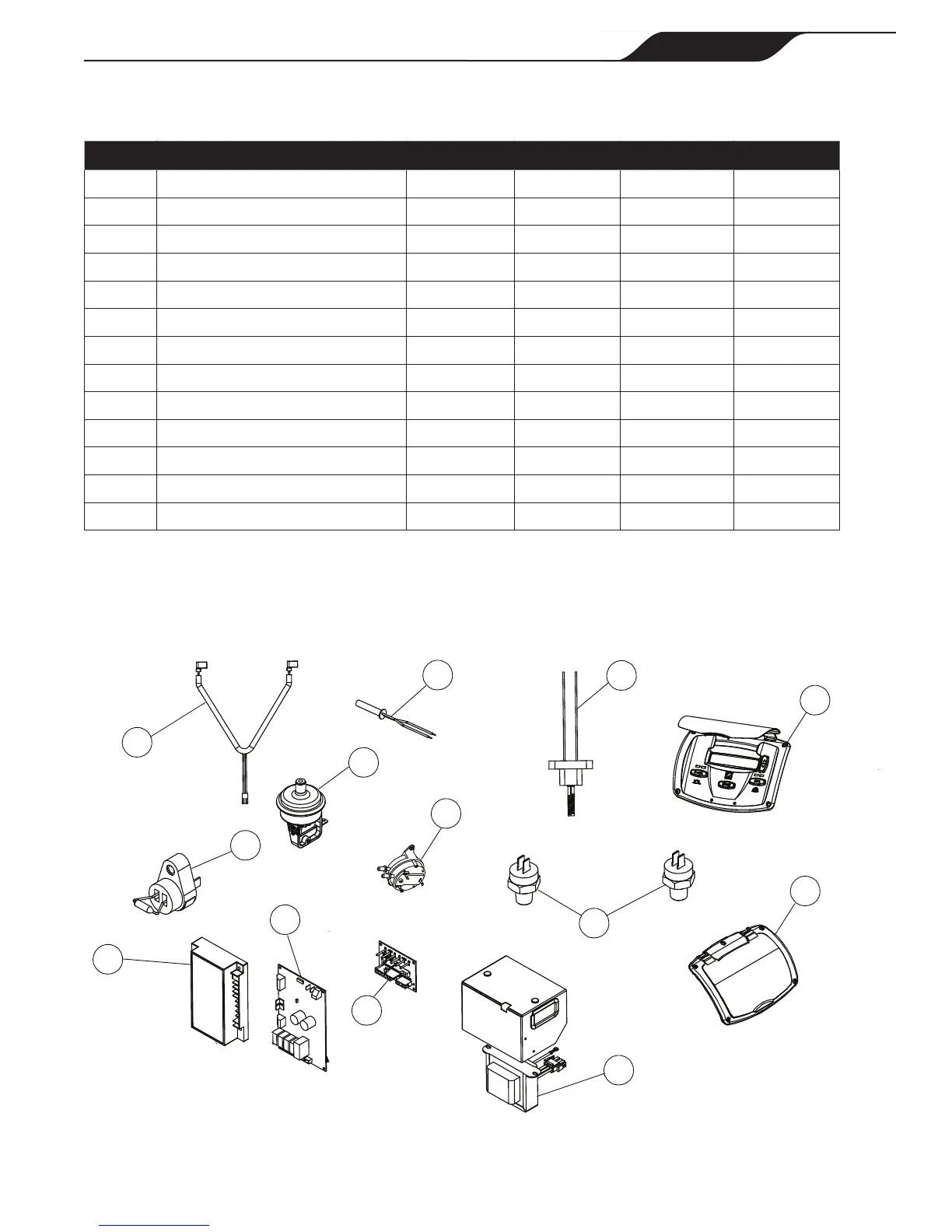

11.6 Electrical System Spare Parts List and Exploded Parts Diagrams
11.6.1 Electrical System Spare Parts List
Key No* Description model 200 model 260 model 300 model 400
1 Ignition Control Kit R0456900 R0456900 R0456900 R0456900
2 Transformer Kit R0456300 R0456300 R0456300 R0456300
3 User Interface Kit R0591900 R0591900 R0591900 R0591900
4 User Interface Lid Kit R0592000 R0592000 R0592000 R0592000
5 Wiring Harness Kit R0592100 R0592100 R0592100 R0592100
6 Air Pressure Switch Kit R0456400 R0456400 R0456400 R0456400
7 Vent Limit Switch Kit R0524300 R0524300 R0524300 R0524300
8 Water Pressure Switch Kit R0013200 R0013200 R0013200 R0013200
9 Universal Controller PCB Kit R0458100 R0458100 R0458100 R0458100
10 Power Distribution PCB Kit R0458200 R0458200 R0458200 R0458200
11 Temperature Sensor Kit R0456500 R0456500 R0456500 R0456500
12 High Limit Temperature Sensors Kit R0592300 R0592300 R0592300 R0592300
13 Igniter Kit R0457502 R0457502 R0457502 R0457502
* Key No refers to Section 11.6.2 Electrical System Exploded Parts Diagram
11.6.2 Electrical System Exploded Parts Diagram
1
2
3
4
6
7
8
9
10
11
13
12
5
To Next Page
