Page 42
ENGLISH
Jandy
®
Pro Series, JXi
™
Gas-Fired Pool & Spa Heater
|
Installation & Operation Manual
11.5 Water System Spare Parts List and Exploded Parts Diagrams
11.5.1 Manifold Assembly Spare Parts List
Key No* Description model 200 model 260 model 330 model 400
1 Access Door Kit
(with O-Ring Seal and Screws)
R0589600 R0589600 R0589600 R0589600
2 Thermal Regulator Valve Kit R0589700 R0589700 R0589700 R0589700
3 Bypass Kit R0589800 R0589800 R0589800 R0589800
4 Drain Plug Kit R0446600 R0446600 R0446600 R0446600
5 Gasket and Seals Kit R0589500 R0589500 R0589500 R0589500
6 Manifold Backplate Kit R0590002 R0590003 R0590004 R0590005
7 Manifold, 3 Port
(no backplate included; must
order separately)
R0590100 R0590100 R0590100 R0590100
8 Water Pressure Switch Kit R0457001 R0457001 R0457001 R0457001
* Key No refers to Section 11.5.4 Manifold Assembly Exploded Parts Diagram.

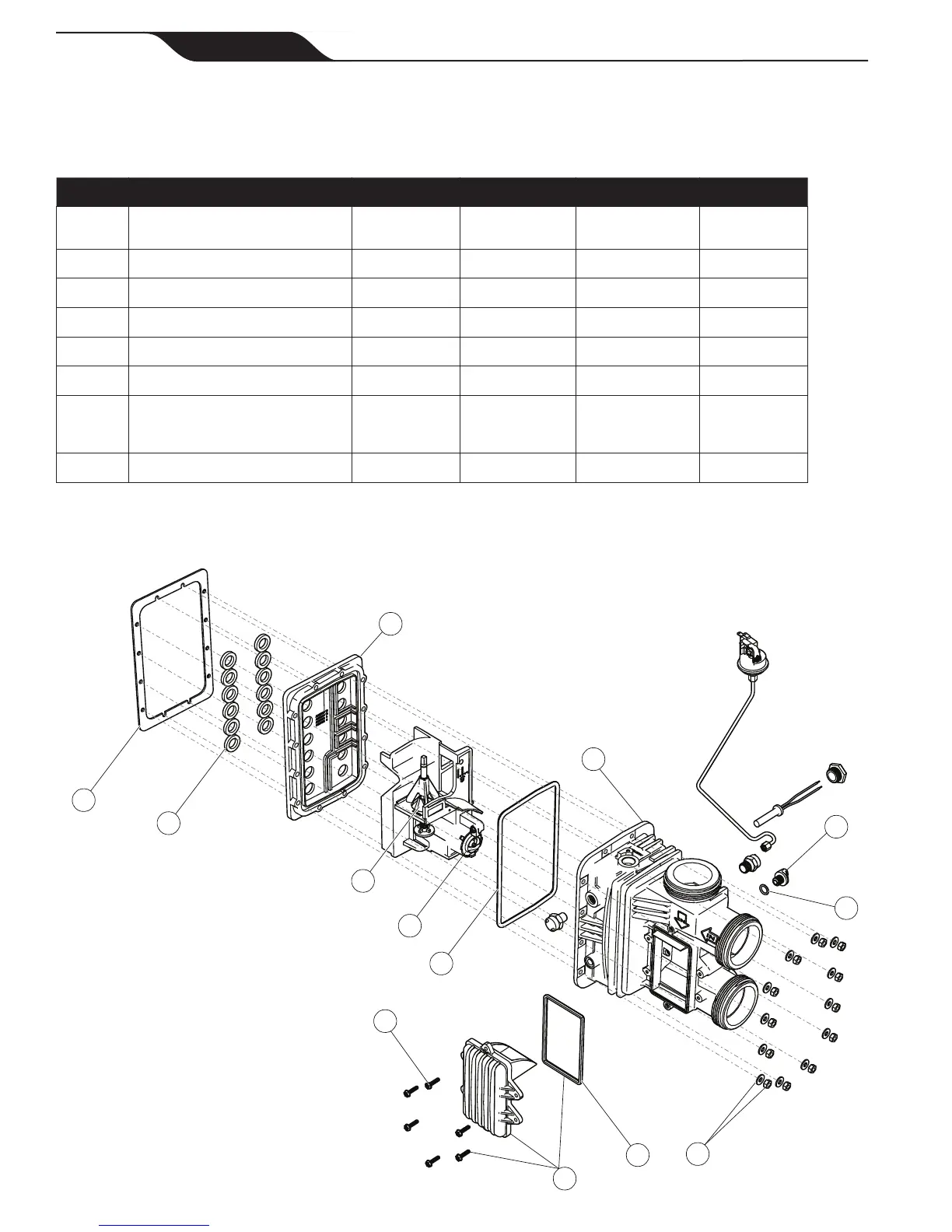

11.5.2 Manifold Assembly Exploded Parts Diagram
2
3
5
5
5
5
5
4
6
1
5
5
7
To Next Page
