Page 38
ENGLISH
Jandy
®
Pro Series, JXi
™
Gas-Fired Pool & Spa Heater
|
Installation & Operation Manual
11.3 Cabinet Assembly Spare Parts List and Exploded Parts Diagram
11.3.1 Cabinet Assembly Spare Parts List
Key No* Description model 200 model 260 model 330 model 400
1 Heater Jacket Top Kit (no User
Interface)
R0592400 R0592400 R0592400 R0592400
2 Corner Post Kit, Left/Right (set of 2) R0592500 R0592500 R0592500 R0592500
3 Heater Base Kit R0592600 R0592600 R0592600 R0592600
4 Front or Back Panel Kit R0592700 R0592700 R0592700 R0592700
5 Side Panel Kit (set of 2) Kit R0592900 R0592900 R0592900 R0592900
6 Vent Terminal Housing Kit R0593100 R0593100 R0593100 R0593100
7 Jacket Hardware Kit
(speed nuts, screws, jacket clips)
R0593300 R0593300 R0593300 R0593300
8 Anchor Brackets Kit (set of 4) R0593400 R0593400 R0593400 R0593400
* Key No refers to Section 11.3.2 Cabinet Assembly Exploded Parts Diagram

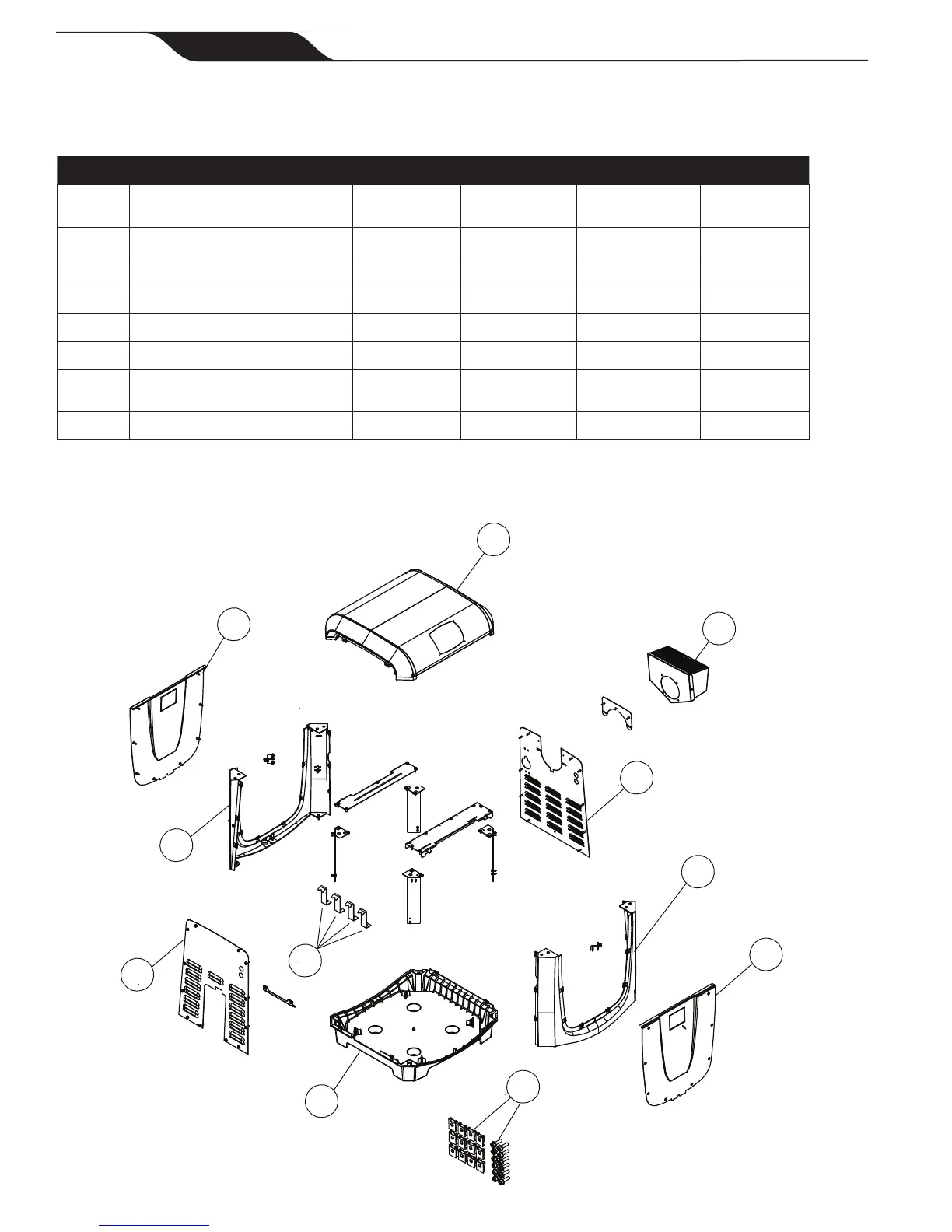

11.3.2 Cabinet Assembly Exploded Parts Diagram
1
2
3
4
6
5
2
4
5
8
7
To Next Page
