11.4.3 Burner Assembly Spare Parts List
Key
No*
Description model 200 model 260 model 330 model 400
**N **LP N LP N LP N LP
1 Blower Assembly Kit
R0591100 R0591100 R0591100 R0591100 R0591100 R0591100 R0591100 R0591100
2 Air Intake Grate Kit
R0591200 R0591200 R0591200 R0591200 R0591200 R0591200 R0591200 R0591200
3 BlowerIntakeOriceKit
R0591302 R0591312 R0591303 R0591313 R0591304 R0591314 R0591305 R0591315
4 FuelOriceKit
R0591601 R0591605 R0591602 R0591606 R0591603 R0591607 R0591604 R0591608
5 Gas Valve
R0591400 R0591400 R0591400 R0591400 R0591400 R0591400 R0591400 R0591400
6 Burner Kit
R0591702 R0591702 R0591703 R0591703 R0591704 R0591704 R0591705 R0591705
7 Capacitor Kit
R0614500 R0614500 R0614500 R0614500 R0614500 R0614500 R0614500 R0614500
* Key No refers to Section 11.4.4 Burner Assembly Exploded Parts Diagram
** N - Natural Gas; LP - Liquid Propane

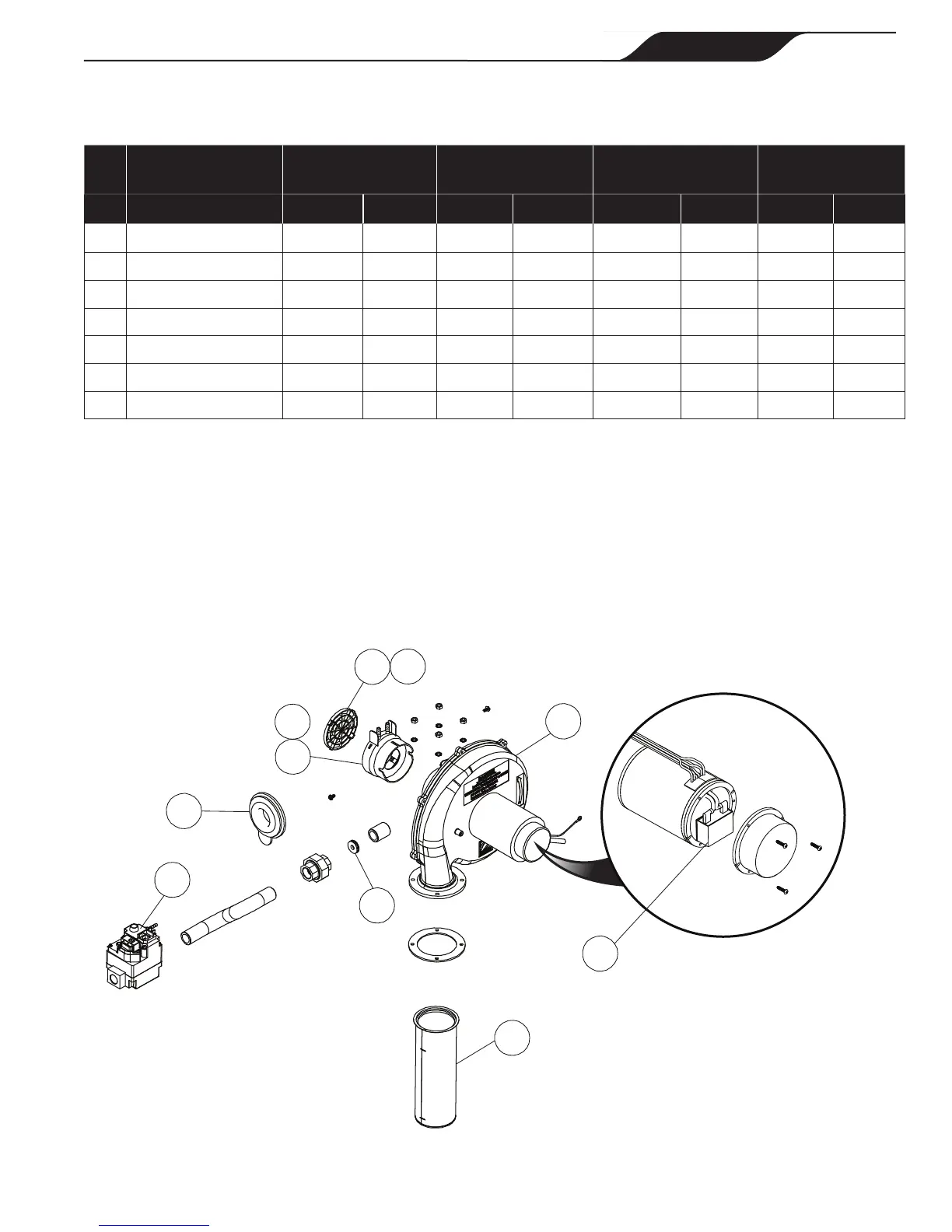

11.4.4 Burner Assembly Exploded Parts Diagram
1
2
4
6
4
3
5
4
4
7
