At least
three (3) feet
Suction Outlet
(Main Drain)
Suction Outlet
(Main Drain)
No valves between
Tee and Main Drains
Listed/certified to latest
published version of
ANSI/ASME
A112.19.8 - 2007,
or its successor standard,
ANSI/APSP-16,
Anti-entrapment
Cover/Grate or Suction
Fitting, screw-fastened
to Main Drain Sump
Listed/certified to latest
published version of
ANSI
®
/ASME
A112.19.8 - 2007,
or its successor standard,
ANSI/APSP-16,
Anti-entrapment
Cover/Grate or Suction
Fitting, screw-fastened
to Main Drain Sump
Valves OK between
pump and Tee
Pump

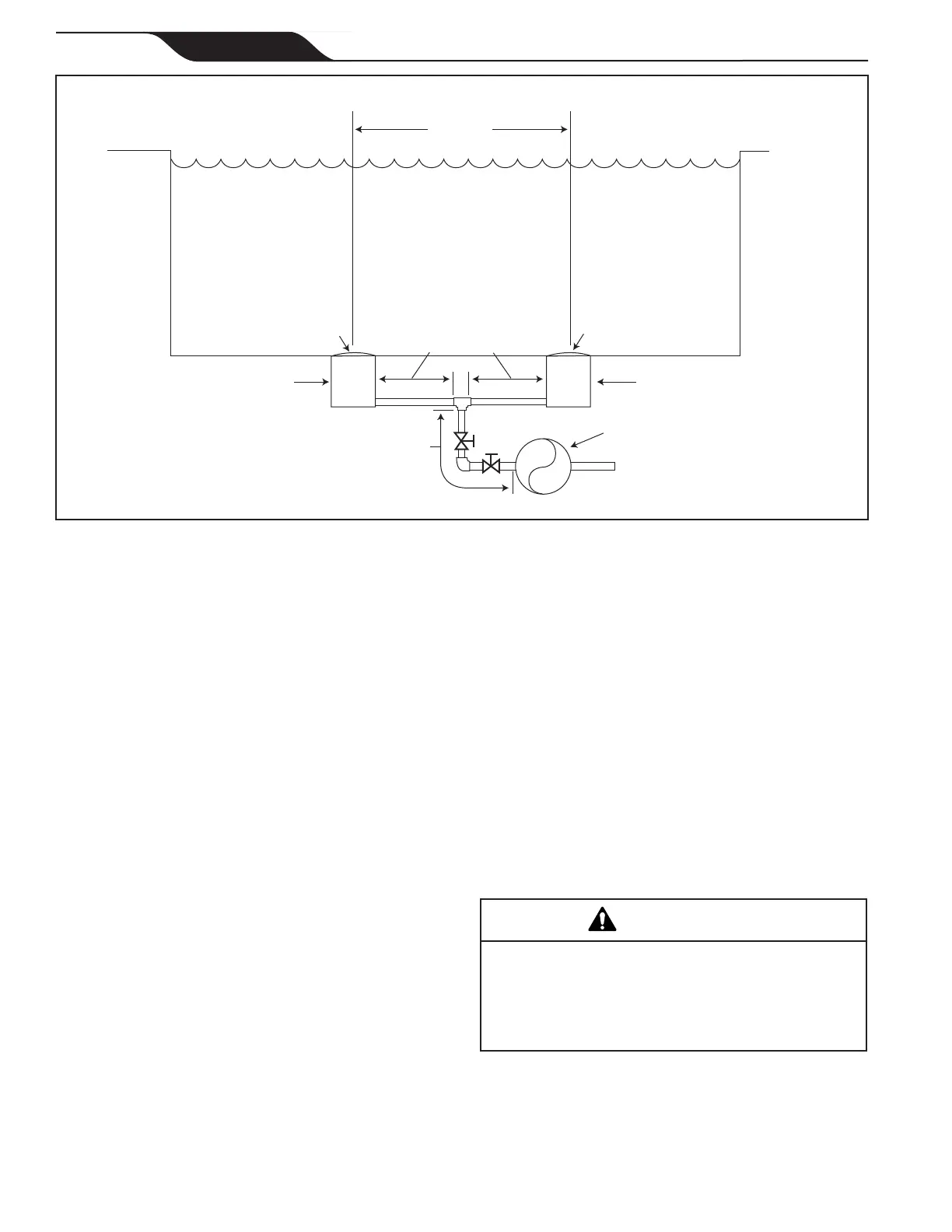

Figure 1. Number of Suction Outlets Per Pump
Section 2. General Description
2.1 Introduction
This manual contains information for the proper
installation, operation and maintenance of Jandy
Stealth (SHP) Pumps. Procedures in this manual must
be followed exactly. To obtain additional copies of
this manual contact Zodiac Pool Systems LLC at
800.822.7933. For address information, see the back
cover of this manual.
2.2 Description
Jandy
SHP Pumps are designed to meet the needs of
today’s more hydraulically demanding pool equipment.
The pump housing, backplate, diffuser, hair and lint
pot (pump debris lter basket), and impeller are all
made from high quality thermoplastic materials. These
materials were chosen for their strength and corrosion
resistance.
The pump is driven by an electric motor directly
attached to the pump impeller. As the electric motor
turns, it causes the impeller to turn, which forces water
to ow through the pump. The water ows through the
pump inlet and then into the lter basket. The basket
assembly pre-strains and traps large particles. The
water then enters the center of the pump housing, ows
through the impeller into the diffuser, and then ows out
the pump discharge port.
Section 3. Installation
3.1 Plumbing
3.1.1 Preparation
1. Upon receipt of the pump, check the carton for
damage. Open the carton and check the pump
for concealed damage, such as cracks, dents
or a bent base. If damage is found, contact the
shipper or distributor where you purchased the
pump.
2. Inspect the contents of the carton and verify
that all the parts are included. See Section 7.1,
Replacement Parts List.
3.1.2 Pump Location
To Reduce the Risk of Fire, install pool equipment in
an area where leaves or other debris will not collect
on or around the equipment. Keep surrounding area
clear of all debris such as paper, leaves, pine-needles
and other combustible materials.
WARNING
1. Zodiac Pool Systems LLC recommends
installing the pump within one (1) foot above
the water level. The pump should not be
elevated more than a few feet above the water
level of the pool. A check valve is recommended
on the suction line to the pump.
