Jandy Stealth SHPF.50 User Manual

7.4 Physical and Operational Specications
7.4.1 SHPF Pump Specications
Model No. HP Voltage Amps Pipe Size Carton Weight Overall Length 'A'
SHPF.50 .50 208-230/115 4.4-4.5/8.8 2-2½" 30 lbs. 31
1
/
8
"
SHPF.75 .75 208-230/115 6.0-5.6/11.2 2-2½" 43 lbs. 31
7
/
8
"
SHPF1.0 1.0 208-230/115 7.8-7.4/14.8 2-2½" 45 lbs. 32¼"
SHPF1.5 1.5 208-230 9.6-8.8 2-2½" 50 lbs. 32
5
/
8
"
SHPF2.0 2.0 208-230 11.0-10.0 2-2½" 57 lbs. 33
1
/
8
"
SHPF3.0 3.0 208-230 15.0-13.6 2½-3" 63 lbs. 33
1
/
8
"
SHPF1.0-2 1.0 230 7.2/3.0 2-2½" 52 lbs. 33
1
/
8
"
SHPF1.5-2 2.0 230 10.0/3.5 2-2½" 57 lbs. 33
5
/
8
"
SHPF2.0-2 2.5 230 11.0/4.0 2-2½" 64 lbs. 33
1
/
8
"
SHPF1.0-3PH 1.0 208-230/460 5.0-4.6/2.3 2-2½" 55 lbs. 31
7
/
8
"
SHPF1.5-3PH 1.5 208-230/460 6.4-5.8/2.9 2-2½" 57 lbs. 32
1
/
8
"
SHPF2.0-3PH 2.0 208-230/460 7.1-6.8/3.4 2-2½" 64 lbs. 32
5
/
8
"
SHPF3.0-3PH 3.0 208-230/460 9.0-8.6/4.3 2½-3" 62 lbs. 32
5
/
8
"
SHPF5.0 5.0 230 19.4 4" 72 lbs. 33¾"
SHPF5.0-3PH 5.0 208-230/460 15.5-15.0/7.5 4" 95 lbs. 35"

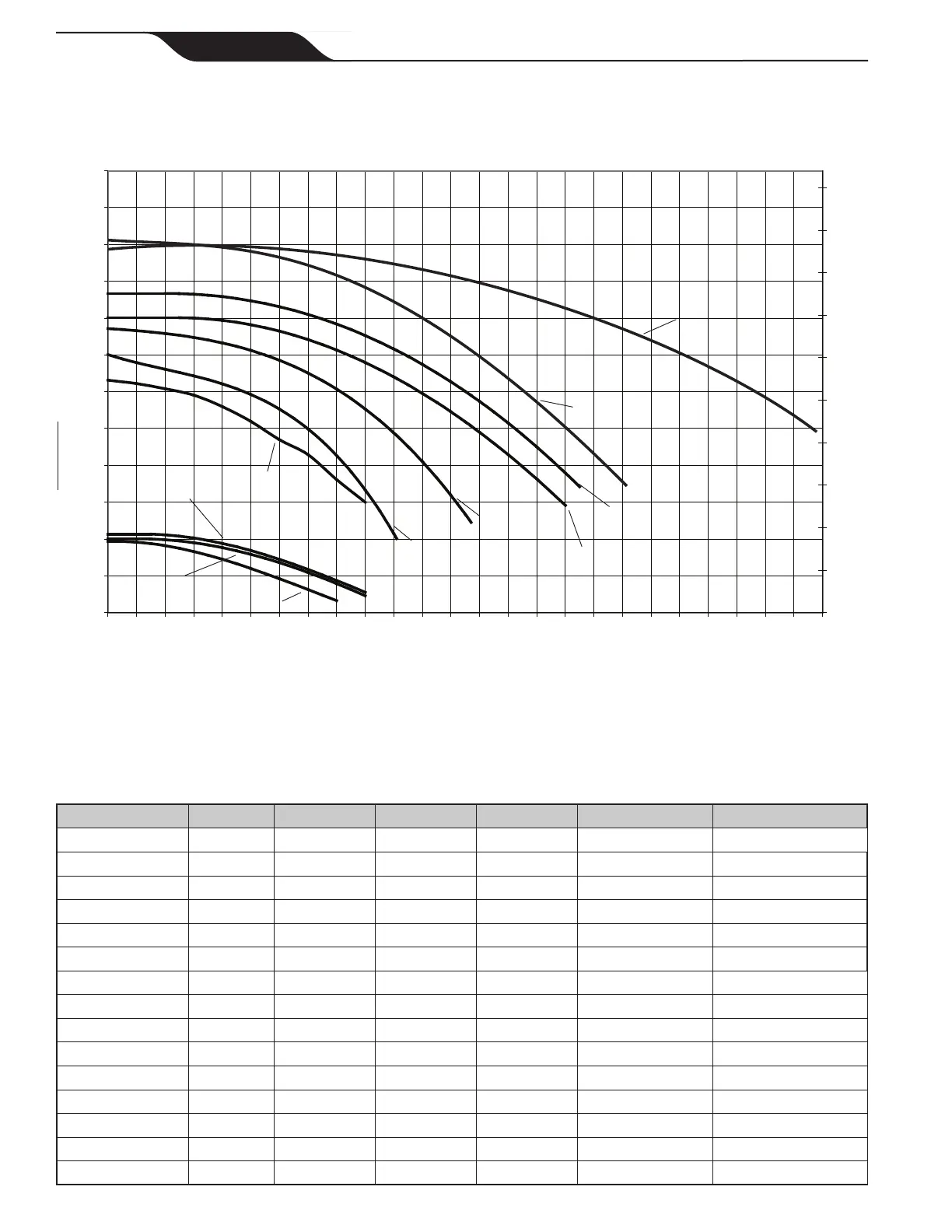

7.3 SHPF and SHPM Pump Curves
Jandy Stealth Series High Head Pumps
Full-Rated (SHPF) and Max-Rated (SHPM)
0
10
20
30
40
50
60
70
80
90
100
110
120
0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250
Flow Rate, Gallons Per Minute (GPM)
Total Dynamic Head (FEET of H2O)
0
5
10
15
20
25
30
35
40
45
50
Pounds Per Square Inch (PSI)
SHPF 3.0/
SHPF 3.0-3PH
SHPF 2.0/
SHPF 2.0-3PH/
SHPM 2.5
SHPF 1.5/
SHPF 1.5-3PH/
SHPM 2.0
SHPF 1.0/
SHPF 1.0-3PH/
SHPM 1.5
SHPF .75/
SHPM 1.0
SHPF 2.0/
SHPM 2.5
Low Speed
SHPF 1.5/
SHPM 2.0
Low Speed
SHPF 1.0/
Low Speed
SHPF .50/
SHPM .75
SHPF 5.0 / SHPF 5.0-3PH
