7.4.2 SHPM Pump Specications
Model No. HP Voltage Amps Pipe Size Carton Weight Overall Length 'A'
SHPM.75 .75 208-230/115 4.4-4.5/8.8 2-2½" 30 lbs. 31
1
/
8
"
SHPM1.0 1.0 208-230/115 6.0-5.6/11.2 2-2½" 43 lbs. 31
7
/
8
"
SHPM1.5 1.5 208-230/115 7.8-7.4/14.8 2-2½" 45 lbs. 32¼"
SHPM2.0 2.0 208-230 9.6-8.8 2-2½" 50 lbs. 32
5
/
8
"
SHPM2.5 2.5 208-230 11.0-10.0 2-2½" 57 lbs. 33
1
/
8
"
SHPM1.5-2 1.5 230 7.2/3.0 2-2½" 52 lbs. 32
1
/
8
"
SHPM2.0-2 2.0 230 10.0/3.5 2-2½" 57 lbs. 32
5
/
8
"
SHPM2.5-2 2.5 230 11.0/4.0 2-2½" 64 lbs. 33
1
/
8
"
NOTE Wheninstallingpump,leaveaminimumoftwofeet(2ft)ofclearanceabovethepumpforremovalofstrainerbasket.

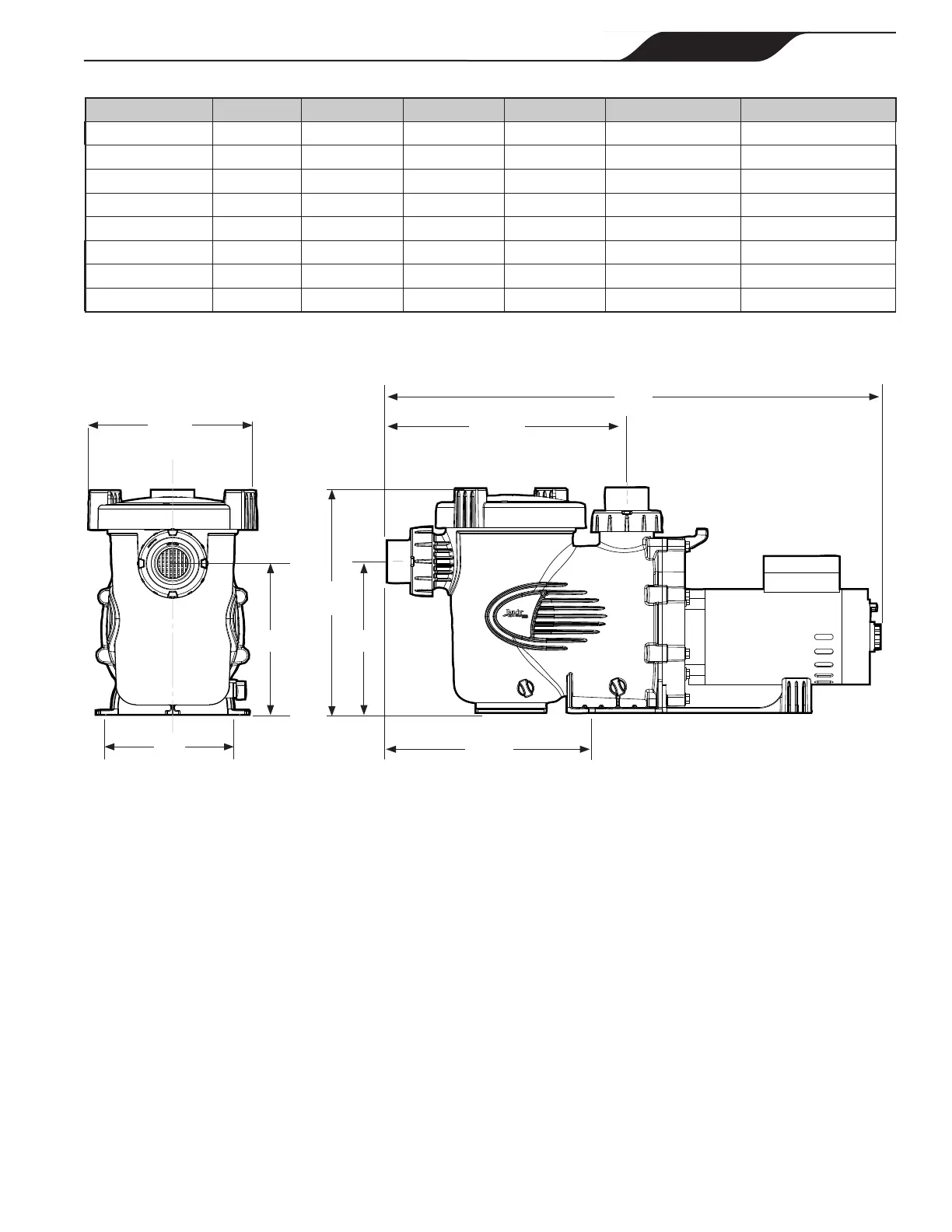

7.4.3 Pump Dimensions
11
3
/
8
"
16
1
/
8
"
'A'
15¼"
14¾"
Bolt Holes,
Center to Center
Front Edge of Union to Center
of Bolt Holes
10
3
/
8
"
9"
10
3
/
8
"
