4. To congure the internal wiring of the pump
motor for the correct voltage, refer to the
diagram on the motor data plate.
5. For 3-Phase motors - conrm direction of motor
rotation matches the directional arrow on the
pump. Failure to do so may cause pump failure,
and may also void warranty.
3.3 Pressure Testing
All model SHP pumps come with an additional
disposable o-ring for pressure testing. This is the
blue pressure test o-ring. See Figures 3 and 4.
Lid with
Locking
Ring
and
Seal
Blue
Pressure
Test
O-ring
Pump
Debris
Trap
Basket
(Inside
Pump)

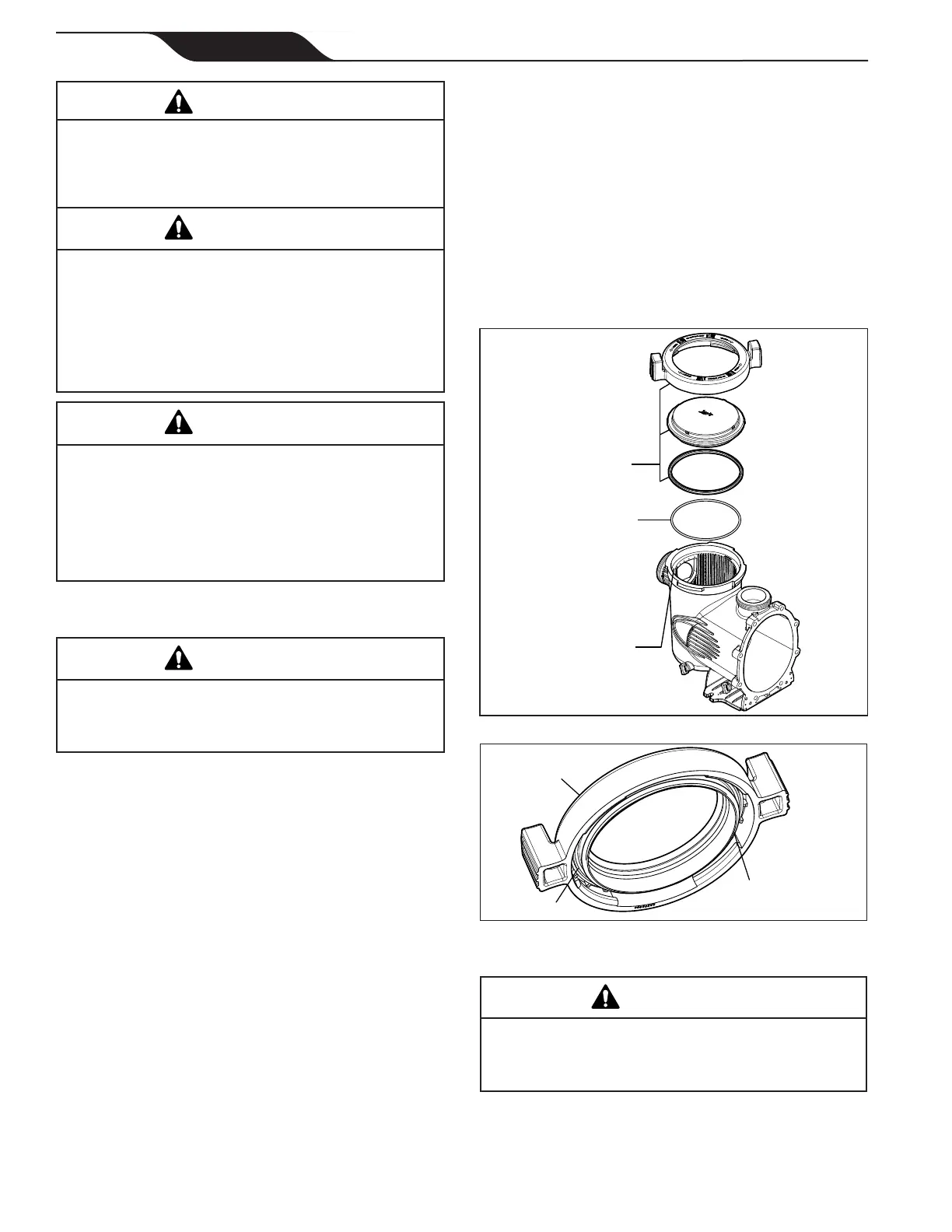

Figure 3. Exploded View of Pump
Lid with
Locking
Ring
Blue Pressure Test
O-ring
Seal
Figure 4. Blue Pressure Test O-ring in Lid
Assembly
Do not open the pump lid before pressure testing,
because the blue pressure test o-ring may fall out. If
this happens, you may need to replace it.
CAUTION
If you have not opened the pump lid, skip to Section
3.3.2, Conduct Pressure Test.
To avoid the risk of property damage, severe
personal injury, and/or death, always disconnect
the power source before working on a motor or its
connected load.
WARNING
To avoid the risk of property damage, severe per-
sonal injury, and/or death, make sure that the con-
trol switch or time clock is installed in an accessible
location so that in the event of an equipment failure
oralooseplumbingttingtheequipmentcanbe
turned off. This location must not be in the same
areaasthepoolpump,lter,andotherequipment.
WARNING
The pump must be permanently connected to a
dedicated electrical circuit. No other equipment,
lights, appliances or outlets may be connected to
the pump circuit, with the exception of devices that
may be required to operate simultaneously with the
pump, such as a chlorinating device or heater.
WARNING
3.2.3 Electrical Wiring
To avoid risk of property damage, severe personal
injury, or death, always ground before connecting to
an electrical power supply.
WARNING
1. The pump motor must be securely and
adequately grounded using the green screw
provided. Ground before attempting to connect
to an electrical power supply. Do not ground to
a gas supply line.
2. Wire size must be adequate to minimize voltage
drop during the start-up and operation of the
pump. See Table 2 for recommended wire sizes.
3. Insulate all connections carefully to prevent
grounding or short-circuits. Sharp edges on
terminals require extra protection. To prevent
wire nuts from loosening, tape them using
a suitable, listed (UL, ETL, CSA) electrical
insulating tape. For safety, and to prevent entry
of contaminants, reinstall all conduit and terminal
box covers. Do not force connections into the
conduit box.
Page 10
ENGLISH
Jandy
®
Stealth
™
Pumps
|
Operation Manual
