Page 23
ENGLISH
Jandy
®
Variable-Speed Pumps
|
Installation & Operation Manual
Section 8. Product Specications and Technical Data
Exploded view for general reference only. Specic models may dier. Please refer to contact information above to
obtain spare parts information for specic pump models. For a complete list of replacement parts, please visit www.
Jandy.com or contact Zodiac Technical Support at 1.800.822.7933 or email productsupport@uidra.com. In Canada,
please call 1.888.647.4004 or email customer.service@uidra.com.
8.1 Exploded Views
15
10
16
9
17
18
8
11
12
13
13
14
1
3
2
4
19
20
21
5
6
7
1 - Motor, Drive
2 - Access Cover
3 - Access Cover O-Ring
4 - Fan Cover
5 - Motor Mounting Bolts/Washers
6 - Motor Mounting Foot
7 - Backplate Mounting Bolts/
Washers
8 - Backplate O-Ring
9 - Impeller and Mounting Screw
10 - Diffuser O-Ring
11 - Pump Body
12 - Drain Plugs with O-Ring
13 - Tail Piece, O-Ring and Union Nut
14 - Pump Debris Filter Basket
15 - Lid Assembly
16 - Diffuser and Mounting Screws
17 - Mechanical Seal
18 - Backplate
19 - SpeedSet Controller Hinge Mount
20 - SpeedSet VS Pump Controller
21 - RS485 Wiring for SpeedSet Controller

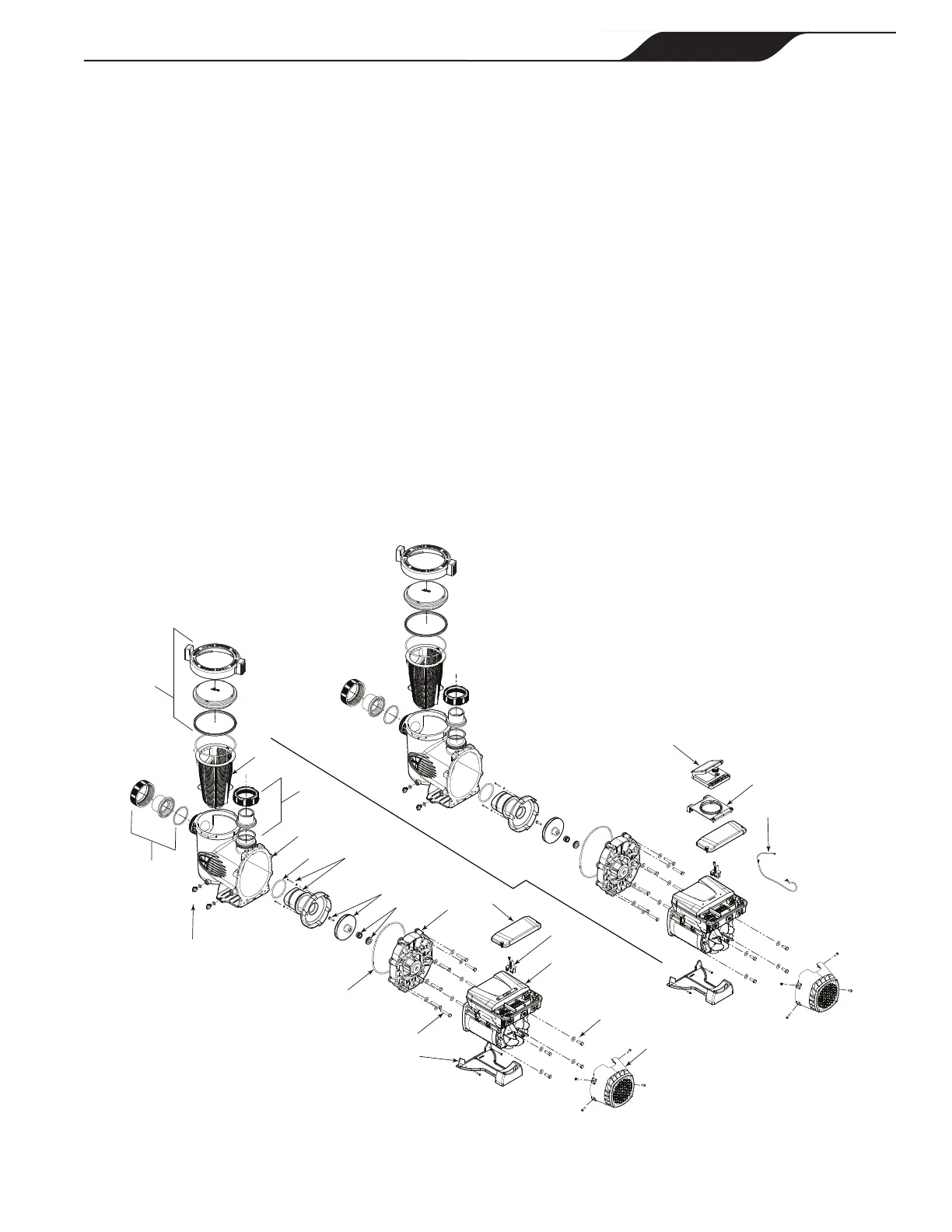

Figure 20. Jandy Variable Speed Pump Exploded View (Specic models may dier slightly
from illustration)
