74
UMG 508
Voltage and current only have
a minor difference in the pha-
se.
Voltage and current have a
difference of approximately
180° in the phase.

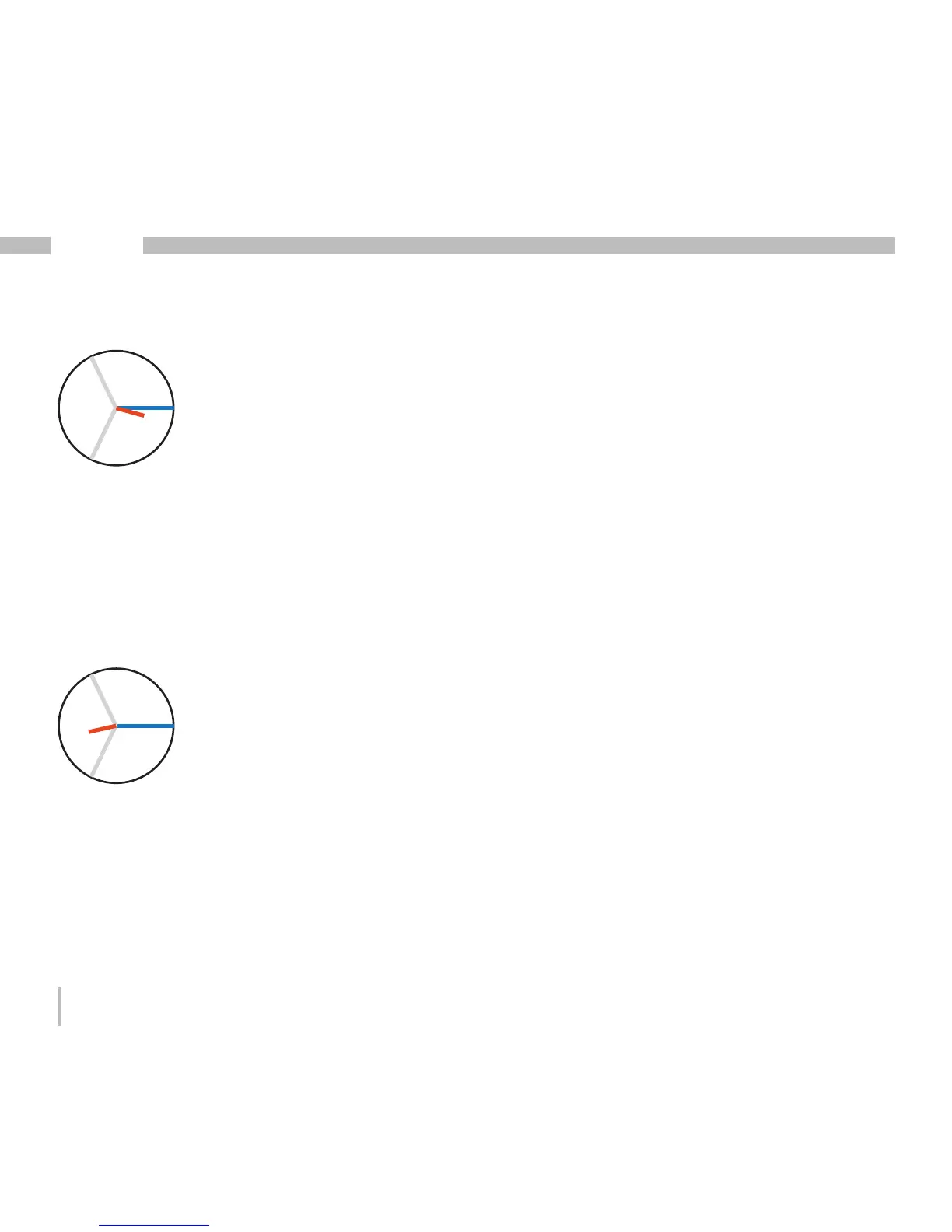

Pointer diagram, examplel 1
Primarily ohmic load.
Pointer diagram, example 2
Primarily ohmic load.
• The current measurement input is allocated
to the right voltage measurement input.
• In this current measurement, the connections
k and l are swapped over or there is a return
feed into the supplier network.
• The current measurement input is allocated
to the right voltage measurement input.
