Mounting
The UMG 96RM-P/-CBM is fixed using the mounting
clips found on the side of the switch panel. Before in-
serting the device, they should be moved out of the way
in a horizontal lever using a screwdriver, for example.

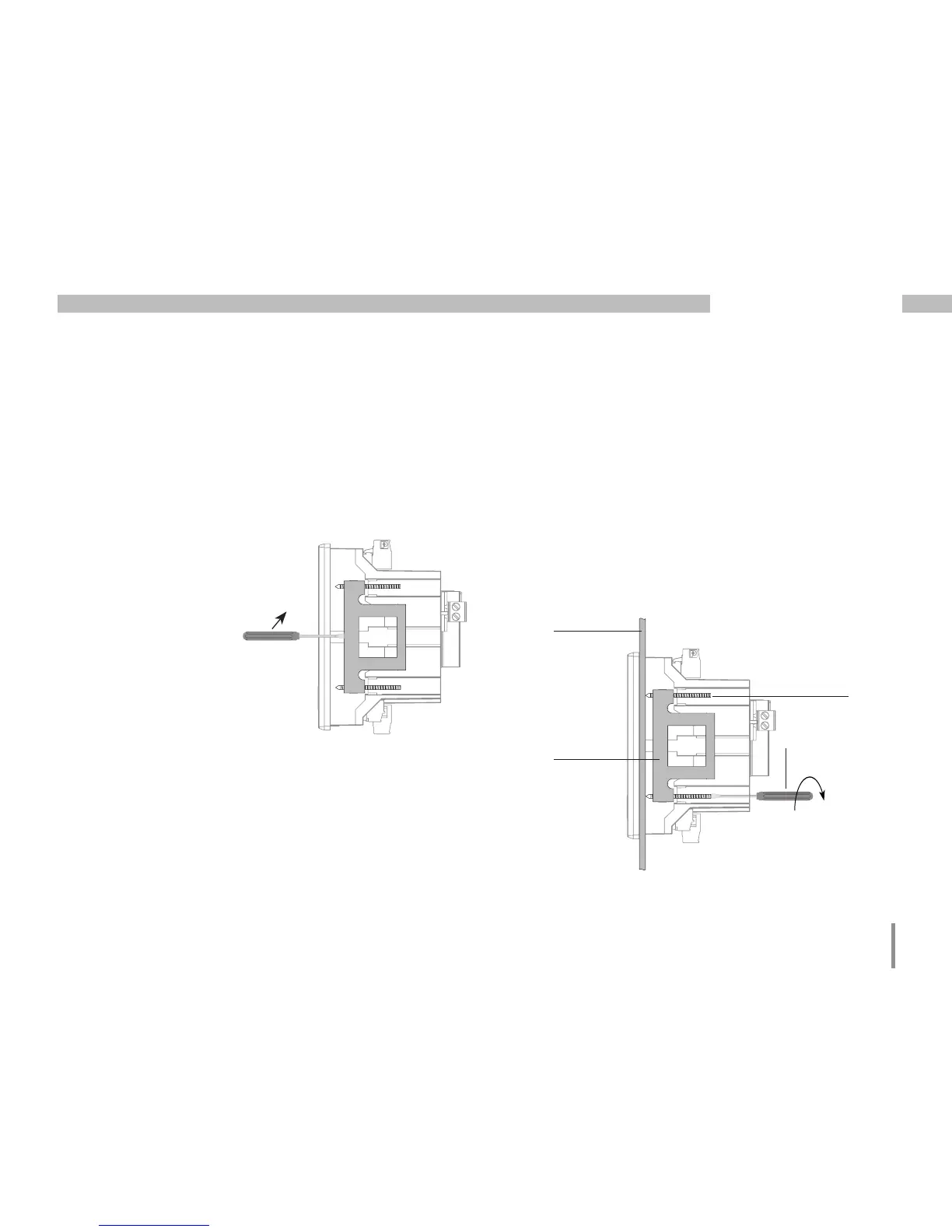

Fig. side view
UMG 96RM-P/-CBM
with mounting clips.
Loosening the clips is
done using a screw-
driver and a horizontal
lever effect.
The fastening is then done when the device is pushed
in an the clamps lock in place when the screws are ti-
ghtened.
• Please tight the fixing screws until they contact the
mounting plate easily.
• Tighten with two further turns, the clamping screws
(are the screws tightened too much, the mounting
bracket will be destroyed)
Mounting plate
Fixing screw
Screwdriver
Mounting
clips
Contacting of the
fixing screws to the
mounting plate:
Tighten with maximum
two further turns for
the installation
