Installation
Supply voltage
A supply voltage is required to operate the UMG 96RM-
P/-CBM. The voltage supply is connected via plug-in
terminals on the back of the device.
Before applying the supply voltage, ensure that
the voltage and frequency correspond with the details
on the nameplate!
The supply voltage must be connected via a UL/IEC
approved fuse (6 A, type C).

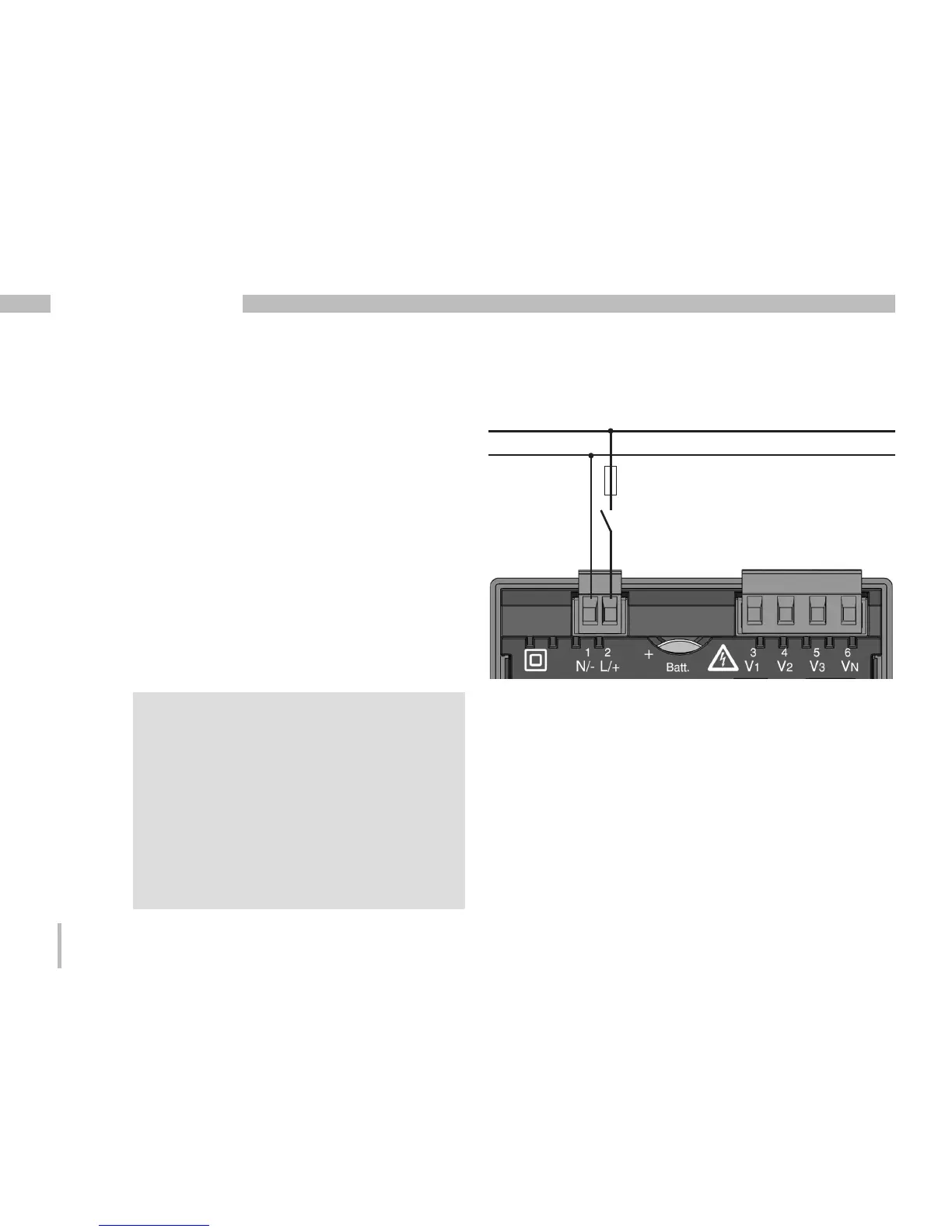

Fig. Connection example of the supply voltage
to the UMG 96RM-P/-CBM
Separator
Fuse
N
L
m
• In building installations, the supply
voltage must be provided with a
disconnect switch or circuit breaker.
• The disconnect switch must be attached
near the device and must be easily
accessible by the user.
• The switch must be labelled as a
separator for this device.
• Voltages that exceed the permissible
voltage range can destroy the device.
